NEW WALDEMAR WDM 403-6-4

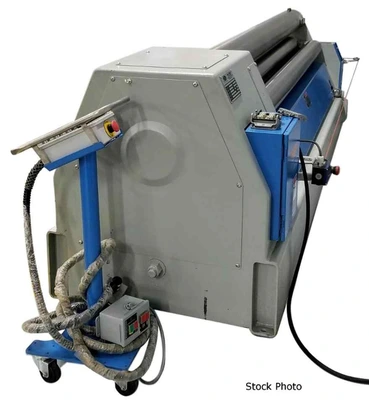

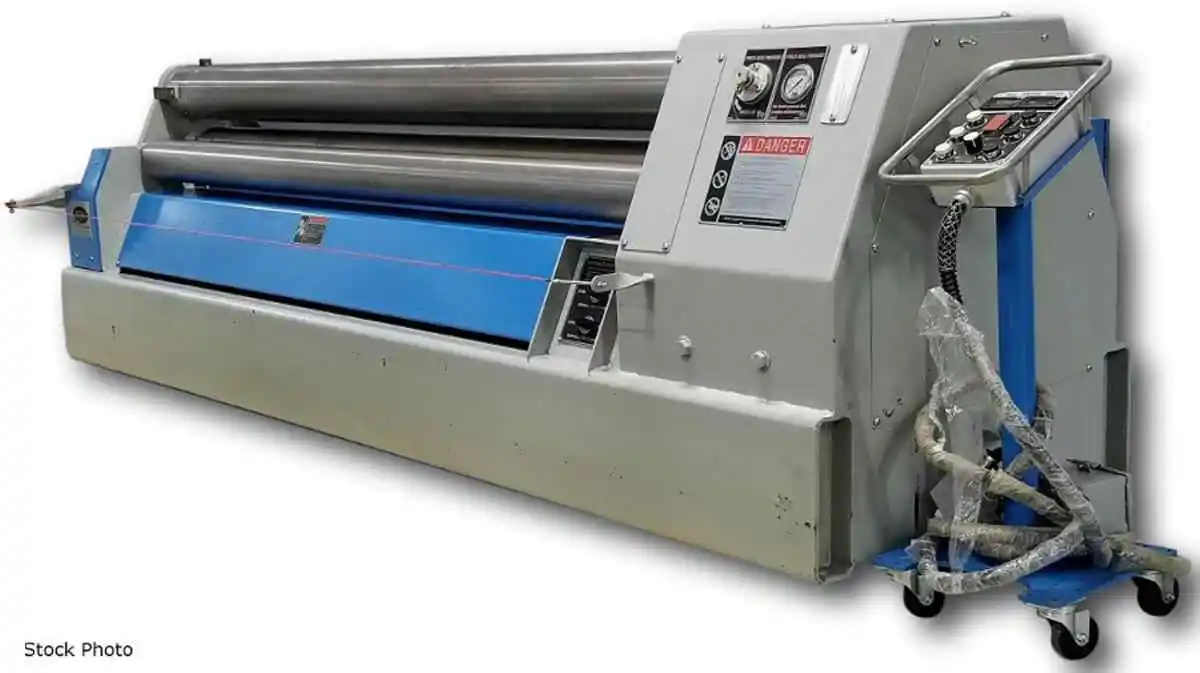

WALDEMAR (NEW) MODEL WDM 403-6-4 HYDRAULIC 4-ROLL
DOUBLE PINCH PLATE BENDING MACHINE

RATED CAPACITY
- 0.31" X 4' X 24" DIAMETER FOR MILD STEEL PLATE
- 0.375" X 20" X 20" DIA. - STAINLESS STEEL PLATE
6" NOMINAL TOP ROLL DIAMETER
0-22 FPM INFINITELY VARIABLE SPEED
5 HP, 230/460 VOLT, 3 PHASE TEFC MOTOR

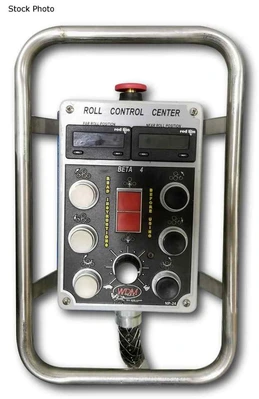

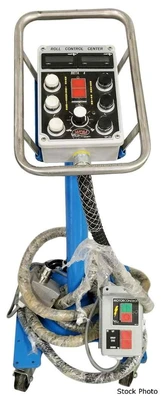

BETA 4 ROVING PENDANT CONTROL
- PUSH BUTTON CONTROL OF MAIN FUNCTIONS
- DIGITAL READOUTS SHOW POSITION OF 3 LOWER ROLLS

STANDARD FEATURES
- 1045 CARBON ROLLS
- HYDRAULIC DRIVEN ROLL
- INSTANT START, STOP, AND REVERSE
- NEMA 12 CONTROL CABINET WITH FUSED CONTROL
TRANSFORMER
- ELECTRONICS MEET NFPA 79 SPECIFICATIONS
- ELECTRONIC OVERLOAD PROTECTION
- 2-ROLL DRIVE
- SKF SEALED SPHERICAL ROLLER BEARINGS
- LSHT TYPE HYDRAULIC DRIVE MOTOR
- SAFETY/EMERGENCY STOP CABLE
- PLANETARY OR SPUR GEAR TYPE SPEED REDUCERS
WITH BRAKES
- MACHINE SITS DIRECTLY ON LEVEL FLOOR
- ABILITY TO ROLL SYMMETRICAL STEEL SECTIONS
WITHOUT ADDITIONAL ATTACHMENTS
- HYDRAULIC OPERATED DROP END SUPPORT

OPTIONS AVAILABLE -PRICE ON REQUEST
- CONE ATTACHMENT
- HEAVY-DUTY CONE ATTACHMENT
- HARDENED ROLLS
- HARDENED AND POLISHED POLLS
55-60 RC FLAME HARDENED 1045 MATERIAL
- CIRCULAR GROOVES 3/8", 1/2", 5/8"
- STARTING GROOVE
- SIDE SUPPORTS
- OVERHEAD SUPPORT
- UPGRADE TO PRE 4.2 SEMI-AUTOMATIC CONTROL
- UPGRADE TO AUTO 4.2 AUTOMATIC CONTROL
Power: 230/460 (3-Phase)
