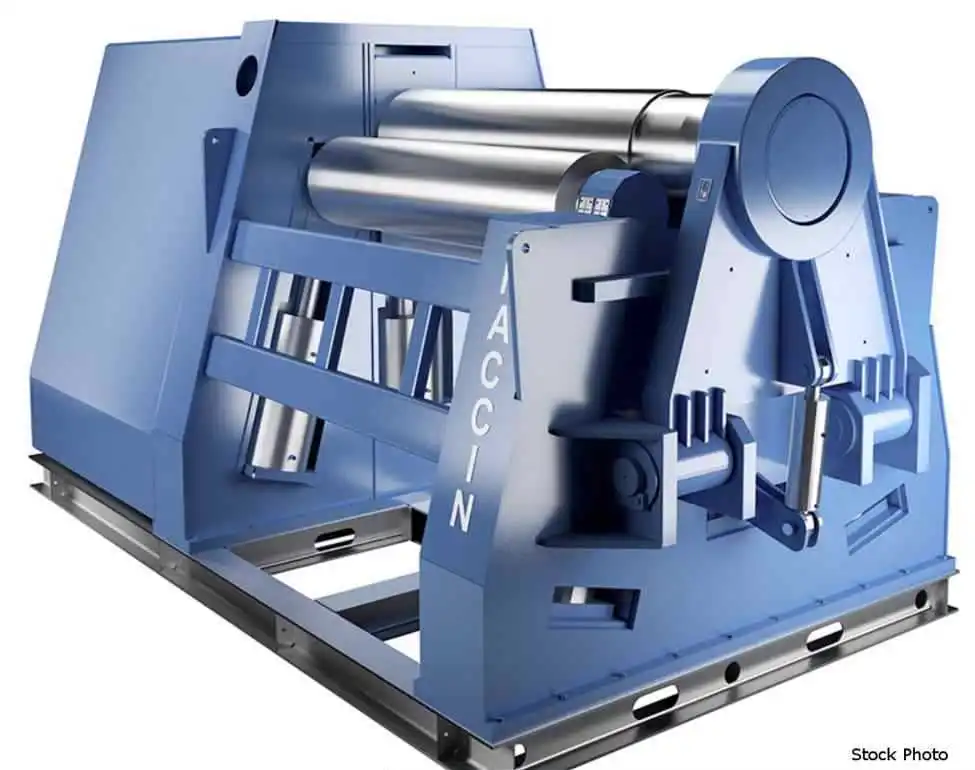

NEW FACCIN 4HEL-2122
Overview
Specifications
| Dimensions | 156 X 48 X 48 | 156 X 48 X 48 |
|---|---|---|
| Weight | 9,800 | 9,800 |
FACCIN (NEW) MODEL 4HEL-2122 4-ROLL BENDING ROLL
CAPACITY
- 79" PLATE WIDTH
- 8.86" TOP ROLL DIAMETER
- 8.46" LOWER ROLL DIAMETER
- 6.5" SIDE ROLLS DIAMETER
- 138,000 - 145,000 PSI CERTIFIED ROLL RESISTANCE
- 110 TON BENDING FORCE ON TOP ROLL
- 2,500 PSI PUMP PRESSURE AT MAXIMUM LOAD
- 13-26 FPM INFINITELY VARIABLE ROTATION SPEED
- 4 BEARINGS SUPPORT EACH ROLL
STANDARD EQUIPMENT
- HARDENED AND POLISHED ROLLS
- SIEMENS NUMERIC CONTROL
- SIMULTANEOUS MACHINE MOVEMENTS
- MICRO-POSITIONING
- CONE BENDING WITH ELECTRONIC CONTROL
- DUAL LINEAR SLIDE SYSTEM FOR ROLLS TRANSLATION
- ULTRA-WIDE ROLL BEARING HOUSINGS
- MCS BEARING SYSTEM FOR BENDING ROLLS ROTATION
- EXTRA LARGE DOUBLE SHAFT DROP END
- ELECTRONIC BALANCING SYSTEM FOR SYNCH OF ROLLS
- PERIMETER CABLE-PULL SWITCHES FOR EMERGENCY
STOP
- STOP CENTRALIZED PUMP LUBRICATION SYSTEM
- EXTRA TORQUE AND SPECIAL BRAKING POWER SYSTEM
- TOP ROLL TILTING COMBINED W/HYD DROP END
OPENING
- HIGH PRECISION AND PRODUCTIVITY PACKAGE
- MACHINERY DIRECTIVE 2006/42/EC DESIGN MANUF.
- DESIGNED TO ACCEPT FUTURE UPGRADES
Power: 480V (3-Phase)
