NEW DURMA HRB-4 30300
Overview
Specifications
| Dimensions | 209.05 X 65.35 X 62.60 | 209.05 X 65.35 X 62.60 |
|---|---|---|
| Weight | 24,472 | 24,472 |
DURMA (NEW) MODEL HRB-4 30300 PLATE ROLL
122.05" BENDING LENGTH
FULL-LENGTH BENDING CAPACITY
- 59.06" INSIDE DIAMETER X 0.63" THICK
- 17.72" INSIDE DIAMETER X 0.55" THICK
FULL-LENGTH PRE-BENDING CAPACITY
- 59.06" INSIDE DIAMETER X 0.55" THICK
- 17.72" INSIDE DIAMETER X 0.47" THICK

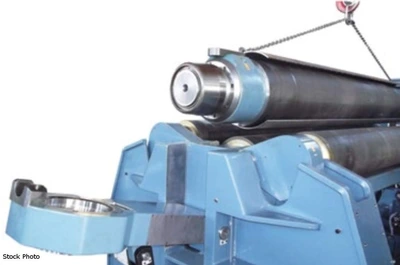

11.81" TOP ROLL
11.81 " BOTTOM ROLL
9.44" SIDE ROLLS
1.97" MAXIMUM PASS THROUGH
44.88" WORKING HEIGHT
24 HP
10.63" MINIMUM ADDITIONAL TOP ROLL DIAMETER
105.67 GALLON HYDRAULIC TANK CAPACITY
STANDARD EQUIPMENT
- PLC CONTROL
- CONICAL BENDING
- INDUCTION HARDENED ROLLS
- STRESS-RELIEVED STEEL CONSTRUCTION BODY
- HIGH-TENSILE CARBON STEEL ROLLS
- SEALED SPHERICAL ROLLER BEARINGS
- 2 ROLL DRIVE SYSTEM
- FIXED TOP ROLL
- HYDRAULIC OPENING COVER
- ELECTRONIC SYNCHRONIZED ROLLS
- PLANETARY ROLL DESIGN
- MECHANICAL SYNCHRONIZED BOTTOM ROLLS
- ADJUSTABLE PINCHING PRESSURE
- OVERLOAD PROTECTION
- SAFETY WIRE AROUND MACHINE
- EMERGENCY STOP BUTTON ON CONTROL PANEL
- MANUAL LUBRICATION
- USER MANUAL
- CE
OPTIONS AVAILABLE - PRICE ON REQUEST

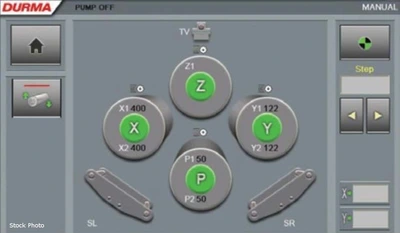

- 10" TOUCH SCREEN NC CONTROL
- COLOR GRAPHIC CNC CONTROL
- VARIABLE SPEED

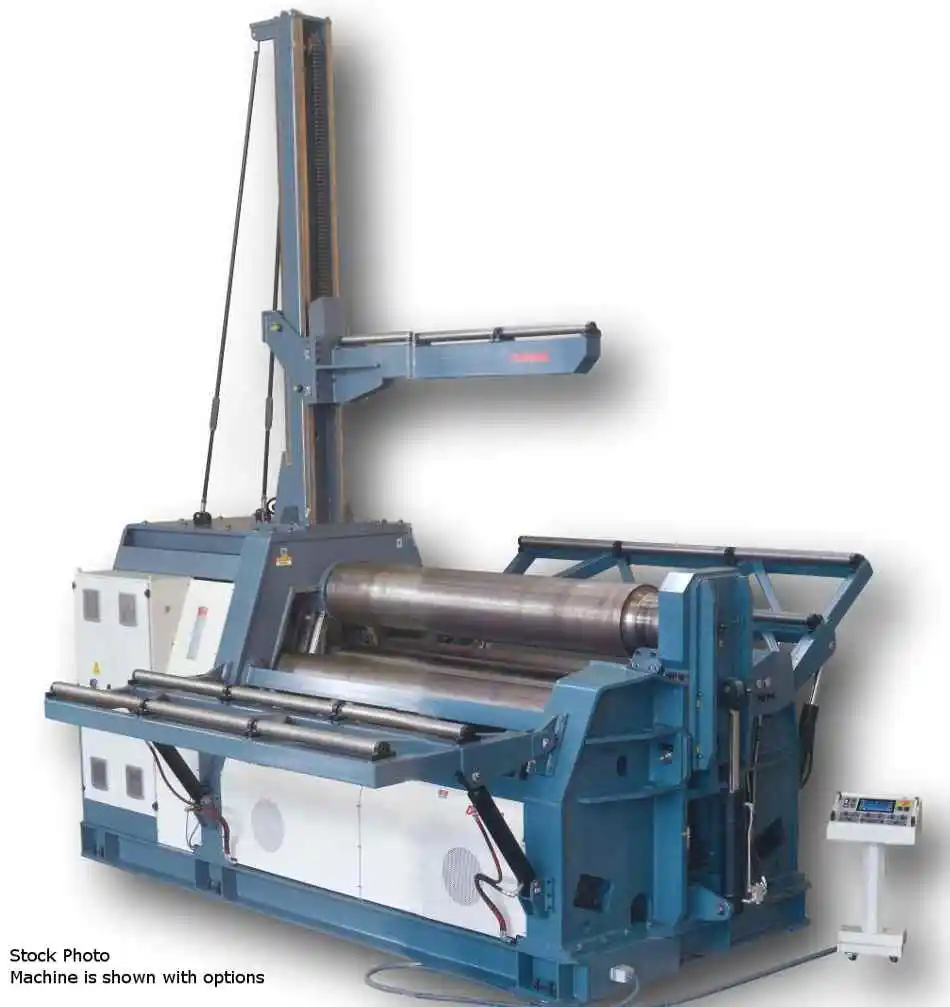

- HYDRAULIC VERTICAL SUPPORT
- SIDE SUPPORT SYSTEM
- NC CONTROL FOR VERTICAL / SIDE SUPPORTS
- MATERIAL FEEDING TABLES
- POLISHED ROLLS
- OIL COOLER
- OIL HEATER
- AUTOMATIC CENTRALIZED LUBRICATION SYSTEM
- INTERCHANGABLE TOP ROLL
