NEW DURMA HRB-4 30270

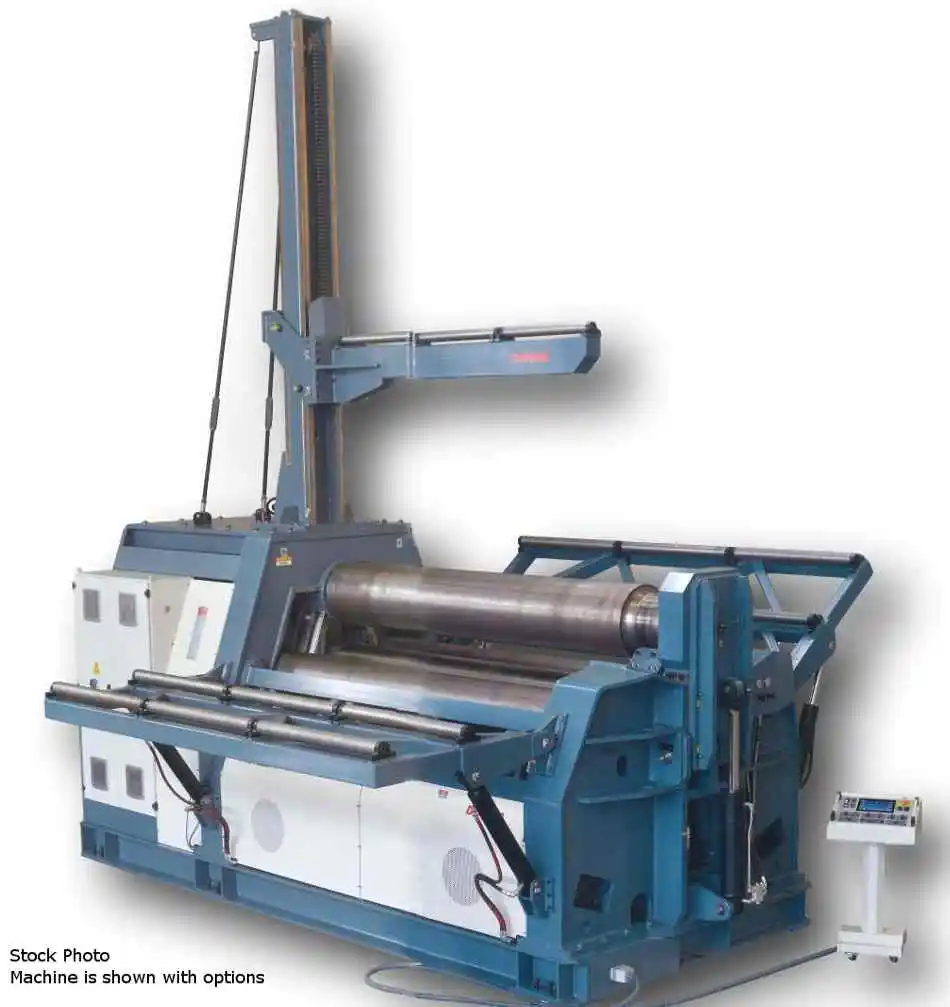

DURMA (NEW) MODEL HRB-4 30270 PLATE ROLL

122.05" BENDING LENGTH

FULL-LENGTH BENDING CAPACITY
- 53.15" INSIDE DIAMETER X 0.51" THICK
- 15.94" INSIDE DIAMETER X 0.39" THICK

FULL-LENGTH PRE-BENDING CAPACITY
- 53.15" INSIDE DIAMETER X 0.39" THICK
- 15.94" INSIDE DIAMETER X 0.31" THICK

10.63" TOP ROLL
10.63 " BOTTOM ROLL
9.05" SIDE ROLLS
1.97" MAXIMUM PASS THROUGH
45.47" WORKING HEIGHT
20 HP
10.63" MINIMUM ADDITIONAL TOP ROLL DIAMETER
105.67 GALLON HYDRAULIC TANK CAPACITY

STANDARD EQUIPMENT
- PLC CONTROL
- CONICAL BENDING
- INDUCTION HARDENED ROLLS
- STRESS-RELIEVED STEEL CONSTRUCTION BODY
- HIGH-TENSILE CARBON STEEL ROLLS
- SEALED SPHERICAL ROLLER BEARINGS
- 2-ROLL DRIVE SYSTEM
- FIXED TOP ROLL
- HYDRAULIC OPENING COVER
- ELECTRONIC SYNCHRONIZED ROLLS
- PLANETARY ROLL DESIGN
- MECHANICAL SYNCHRONIZED BOTTOM ROLLS
- ADJUSTABLE PINCHING PRESSURE
- OVERLOAD PROTECTION
- SAFETY WIRE AROUND MACHINE
- EMERGENCY STOP BUTTON ON CONTROL PANEL
- MANUAL LUBRICATION
- USER MANUAL
- CE

OPTIONS AVAILABLE - PRICE ON REQUEST

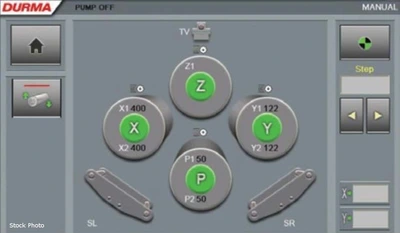

- 10" TOUCH SCREEN NC CONTROL

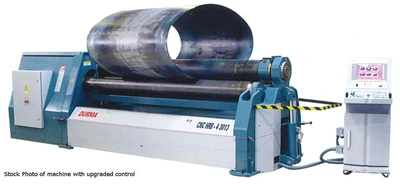

- COLOR GRAPHIC CNC CONTROL
- VARIABLE SPEED
- HYDRAULIC VERTICAL SUPPORT
- SIDE SUPPORT SYSTEM
- NC CONTROL FOR VERTICAL / SIDE SUPPORTS
- MATERIAL FEEDING TABLES
- POLISHED ROLLS
- OIL COOLER
- OIL HEATER
- AUTOMATIC CENTRALIZED LUBRICATION SYSTEM
- INTERCHANGABLE TOP ROLL
