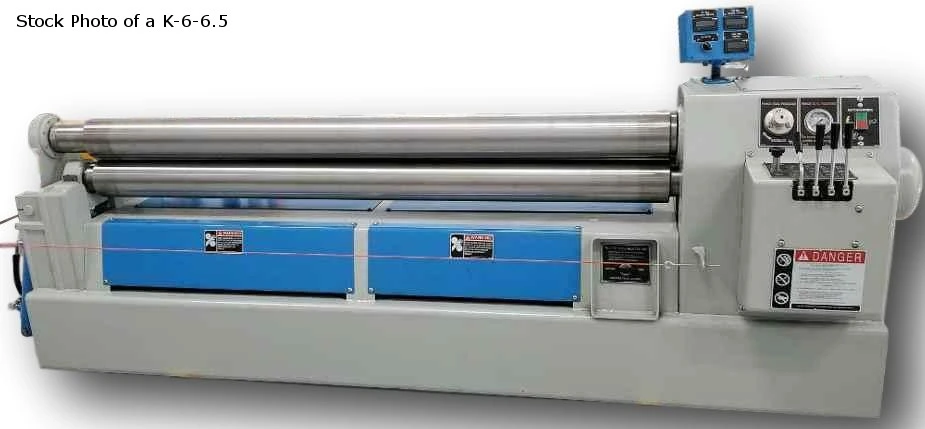

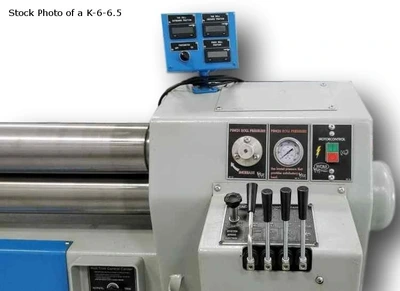

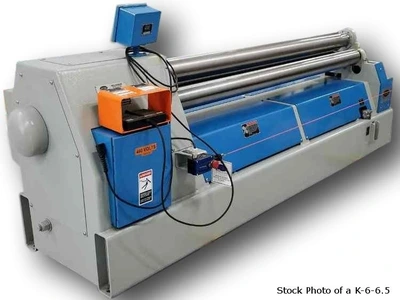

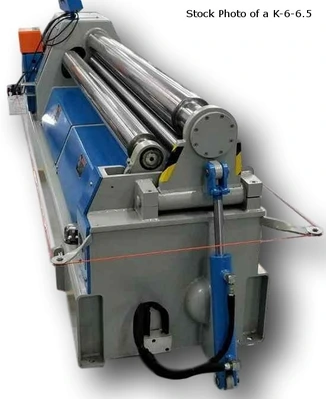

NEW WALDEMAR WDM K-8-8

WALDEMAR (NEW) MODEL WDM K-8-8 HYDRAULIC
INITIAL PINCH PLATE BENDING MACHINE

1/4" X 8' CAPACITY AT 32" DIAMETER
13/32" X 8' CAPACITY AT 96" DIAMETER
8" NOMINAL TOP ROLL DIAMETER
2-1/2" X 1" BAR ON EDGE
2" X 2" X 1/4" ANGLE CAPACITY
230/460 VOLT, 3 PHASE 7.5 HP TEFC MOTOR

STANDARD FEATURES

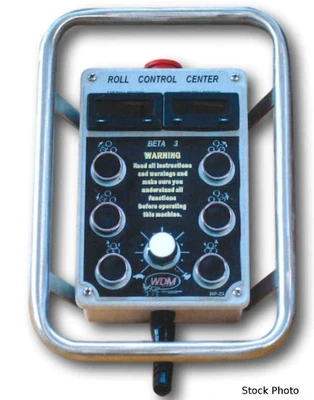

- BETA 3.2 MANUAL CONTROL
- 1045 STEEL ROLLS
- TOTAL HYDRAULIC OPERATION
- INSTANT START, STOP AND REVERSE
- 2-ROLL DRIVE
- 120 VOLT CONTROL CIRCUIT
- QUIET HYDRAULIC SYSTEM
- ELECTRONICS MEET NFPA 79 SPECIFICATIONS
- OVERLOAD PROTECTION
- SEALED SPHERICAL ROLLER BEARINGS
- ROLLS TILT FOR CONE ROLLING
- ROLLS DRIVEN THROUGH PLANETARY TYPE SPEED
REDUCERS OR SPUR GEAR DRIVES
- DIAL POINTER TYPE ROLL POSITION INDICATORS
- HORIZONTAL STARTING GROOVE IN PINCH ROLL
- HYDRAULICALLY ACTUATED DROP END

OPTIONS AVAILABLE - PRICE ON REQUEST
- CONE ATTACHMENT
- HEAVY-DUTY CONE ATTACHMENT
- HARDENED ROLLS
- HARDENED AND POLISHED ROLLS
55-60 RC FLAME HARDENED 1045 MATERIAL
- CIRCULAR GROOVES IN ROLLS FOR ROLLING RODS
OR SHEETS WITH WIRE EDGES 3/8", 1/2", AND 5/8"
- ADDITIONAL STARTING GROOVE
- SIDE SUPPORTS
- OVERHEAD SUPPORTS
- FOOT SWITCH
- PRE 3.2 CONTROL
- CONE 3 CONTROL
Power: 230/460 (3-Phase)
