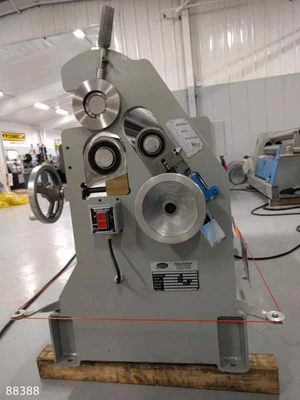

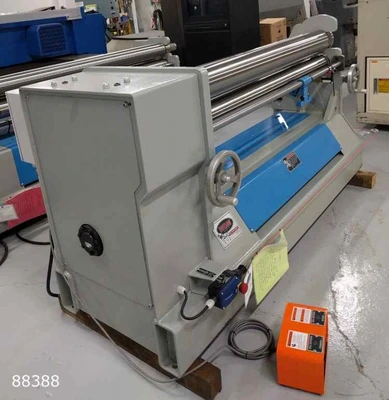

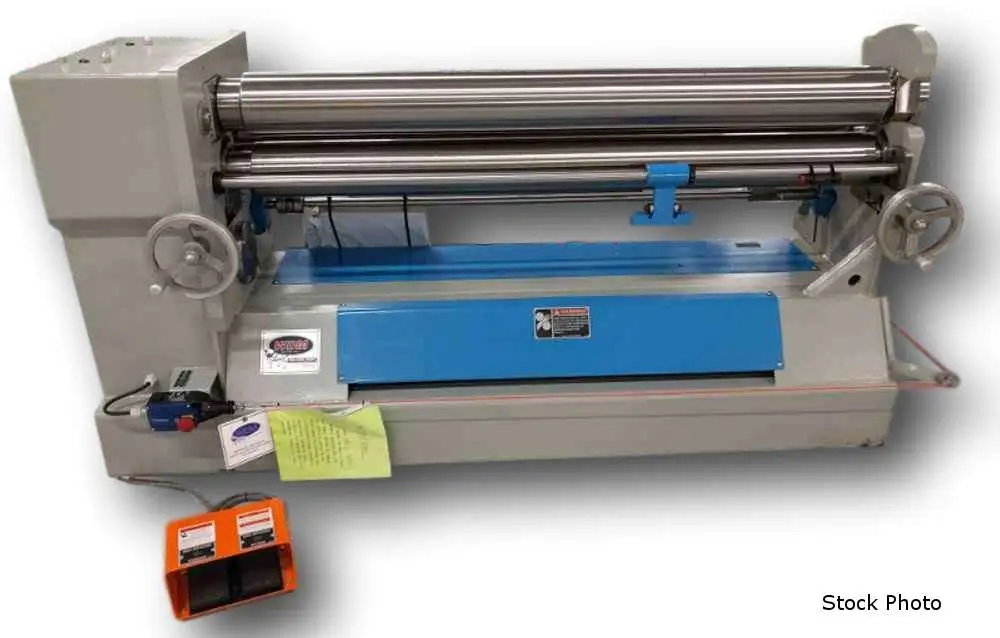

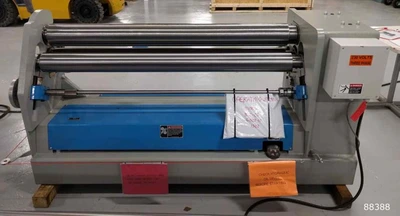

NEW WALDEMAR WDM 310-6-60

WALDEMAR (NEW) MODEL WDM B-6-60 INITIAL PINCH
SHEET AND PLATE BENDING MACHINE

1/4" X 5' CAPACITY
6" TOP ROLL DIAMETER
24" DIAMETER
ELECTRONICS TO NFPA 79 SPECIFICATIONS
230/460 VOLTS, 3 PHASE, 5 HP TEFC MOTOR
1045 STEEL ROLLS

FEATURES
- TOTAL HYDRAULIC OPERATION
- FORWARD REVERSE FOOT PEDAL FOR ROLL ROTATION
- 2-ROLL DRIVE
- 120 VOLT CONTROL CIRCUIT
- PINCH ROLL STARTING GROOVE
- OVERLOAD PROTECTED
- QUIET HYDRAULIC SYSTEM
- SEALED SPHERICAL ROLLER BEARINGS ON ALL
MAIN POINTS
- MANUALLY OPERATED DROP END COLLAR WITH SWING-
OUT TOP ROLL

OPTIONS AVAILABLE - PRICE ON REQUEST
- INFINITELY VARIABLE SPEED (0-14 FPM)
- CONE ATTACHMENT
- HARDENED AND POLISHED ROLLS
55-60 RC FLAME HARDENED 1045 MATERIAL
- CIRCULAR GROOVES IN ROLLS FOR ROLLING RODS
OR SHEETS WITH WIRE EDGES 3/8", 1/2", AND 5/8"
- ADDITIONAL STARTING GROOVE
- 3RD ROLL DRIVE
- ELECTRIC DRO
- POWER BENDING ADJUSTMENT
- POWER DISC
- EXTENDED SHAFTS FOR DIES
- SECTION DIES
- 4" WIDE PIPE DIES
Power: 230 (3-Phase)
