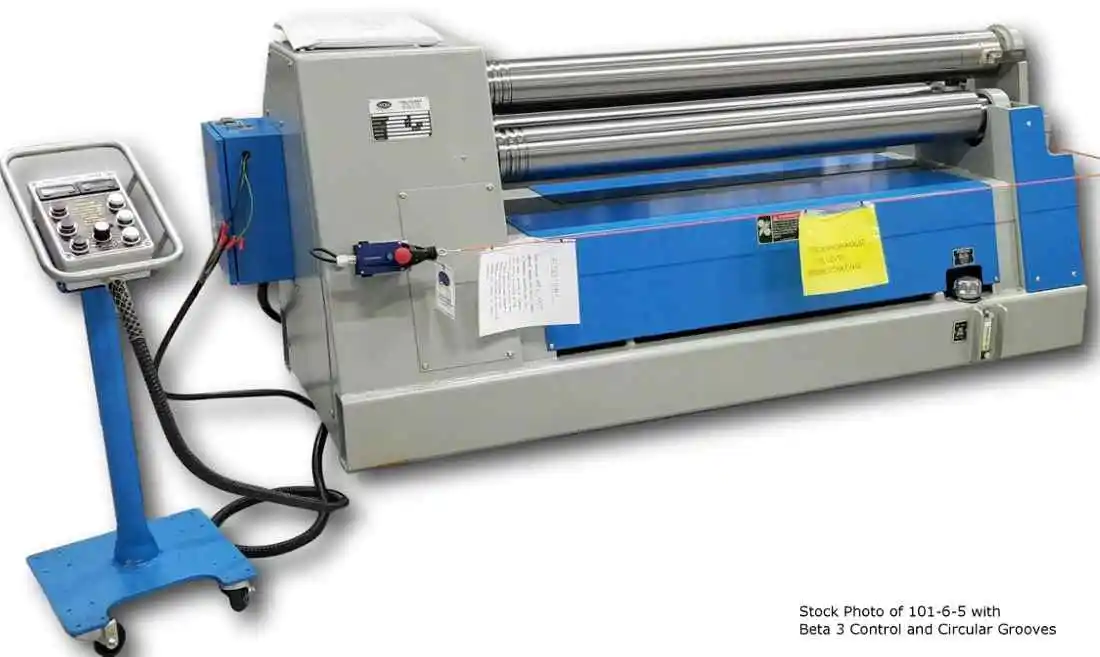

NEW WALDEMAR WDM 101-9-6

WALDEMAR (NEW) MODEL WDM 101-9-6 HYDRAULIC PINCH
PYRAMID PLATE BENDING MACHINE

1/2" X 36" X 6' RATED CAPACITY MILD STEEL
9" NOMINAL TOP ROLL DIAMETER
10 HP, 3 PHASE, 230/460 VOLT TEFC MOTOR

STANDARD FEATURES

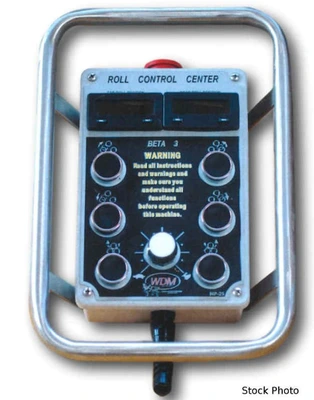

- BETA 3.2 CONTROL
- 1045 CARBON ROLLS
- HYDRAULIC DRIVEN ROLLS WHICH PROVIDE INSTANT
START, STOP AND REVERSE
- ELECTRONICS MEET NFPA 79 SPECIFICATIONS
- THERMAL OVERLOAD PROTECTION
- 3-ROLL DRIVE
- SPHERICAL ROLLER BEARINGS ON ALL MAIN
BEARINGS
- LSHT TYPE HYDRAULIC DRIVE MOTOR WITH HIGH
VOLUMETRIC AND OVERALL EFFICIENCY
- INFINITELY VARIABLE SPEED FROM 0 - 22 FPM
- SAFETY CABLE AROUND PERIMETER OF MACHINE
- MACHINE IS CONTROLLED BY HYDRAULIC DIRECTIONAL
VALVES LOCATED ON MACHINE DRIVE HOUSING
- ROLLS DRIVEN THROUGH PLANETARY TYPE SPEED
REDUCERS
- DIAL/POINTER TYPE INDICATORS TO SHOW ROLL
POSITION
- MACHINE SETS DIRECTLY ON LEVEL FLOOR
- ABILITY TO ROLL SYMMETRICAL STEEL SECTIONS
WITHOUT ADDITIONAL ATTACHMENTS
- HYDRAULIC OPERATED DROP END SUPPORT

OPTIONS AVAILABLE - PRICE ON REQUEST
- CONE ATTACHMENT
- HEAVY-DUTY CONE ATTACHMENT
- HARDENED ROLLS
- HARDENED AND POLISHED ROLLS
55-60 RC FLAME HARDENED 1045 MATERIAL
- CIRCULAR GROOVES
- ADDITIONAL STARTING GROOVES
- SIDE SUPPORTS
- OVERHEAD SUPPORTS
- FOOT SWITCH
- UPGRADE TO PRE 3.2 CONTROL
- UPGRADE TO CONE 3 CONTROL
Power: 230/460 (3-Phase)
