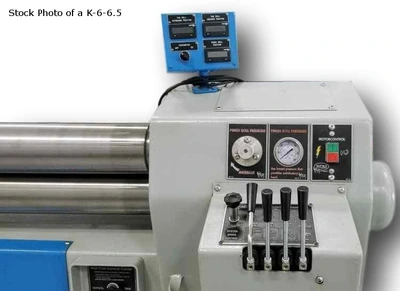

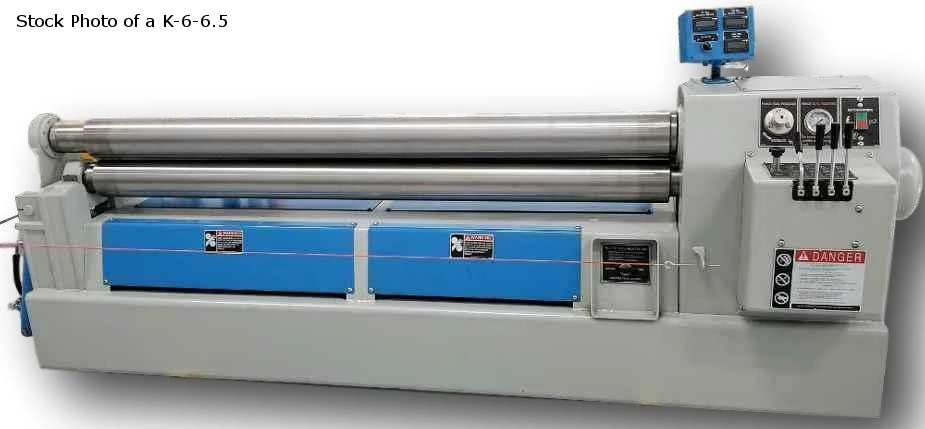

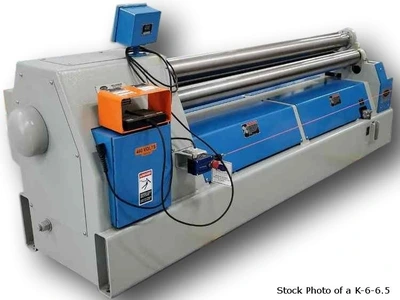

NEW WALDEMAR WDM K-12-10

WALDEMAR (NEW) MODEL WDM K-12-10 HYDRAULIC
INITIAL PINCH PLATE BENDING ROLL

1/2" X 10' CAPACITY AT 48" DIAMETER
19/32" X 10' CAPACITY AT 144" DIAMETER
3-1/2" X 1-1/2" BAR ON EDGE
4" X 4" X 1/2" ANGLE
0-22 FPM ROLL SPEED
230/460 VOLT, 3 PHASE 20 HP TEFC MOTOR

STANDARD FEATURES

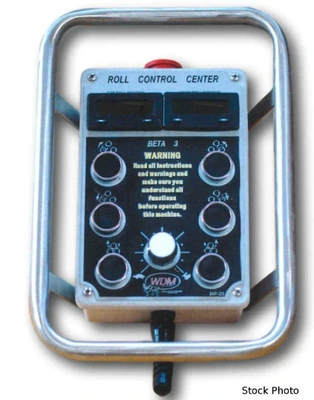

- BETA 3 MANUAL CONTROL
- 1045 STEEL ROLLS
- TOTAL HYDRAULIC OPERATION
- INSTANT START, STOP AND REVERSE
- 2-ROLL DRIVE
- 120 VOLT CONTROL CIRCUIT
- QUIET HYDRAULIC SYSTEM
- ELECTRONICS MEET NFPA 79 SPECIFICATIONS
- OVERLOAD PROTECTION
- SEALED SPHERICAL ROLLER BEARINGS

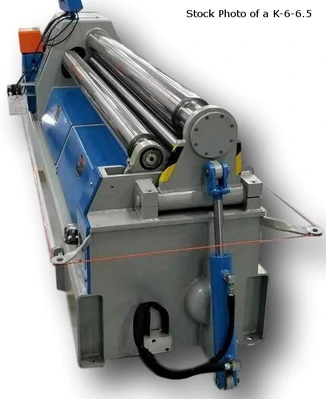

- ROLLS TILT FOR CONE ROLLING
- ROLLS DRIVEN THROUGH PLANETARY TYPE SPEED
REDUCERS OR SPUR GEAR DRIVES
- DIAL POINTER TYPE ROLL POSITION INDICATORS
- HORIZONTAL STARTING GROOVE IN PINCH ROLL
- HYDRAULICALLY ACTUATED DROP END

OPTIONS AVAILABLE - PRICE ON REQUEST
- CONE ATTACHMENT
- HEAVY-DUTY CONE ATTACHMENT
- HARDENED ROLLS
- HARDENED AND POLISHED ROLLS
55-60 RC FLAME HARDENED 1045 MATERIAL
- CIRCULAR GROOVES IN ROLLS FOR ROLLING RODS
OR SHEETS WITH WIRE EDGES 3/8", 1/2", AND 5/8"
- ADDITIONAL STARTING GROOVE
- SIDE SUPPORTS
- OVERHEAD SUPPORTS
- FOOT SWITCH
- PRE 3 CONTROL
- CONE 3 CONTROL
Power: 230/460 (3-Phase)
