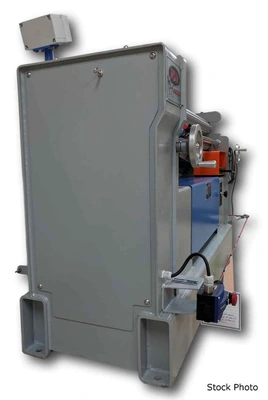

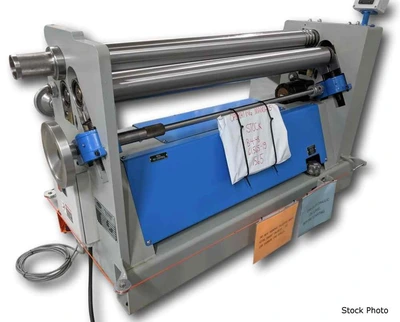

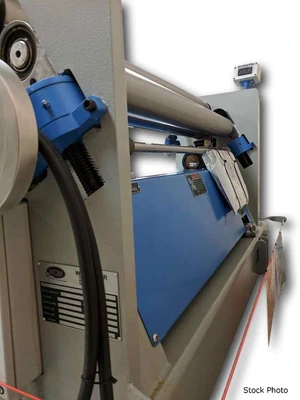

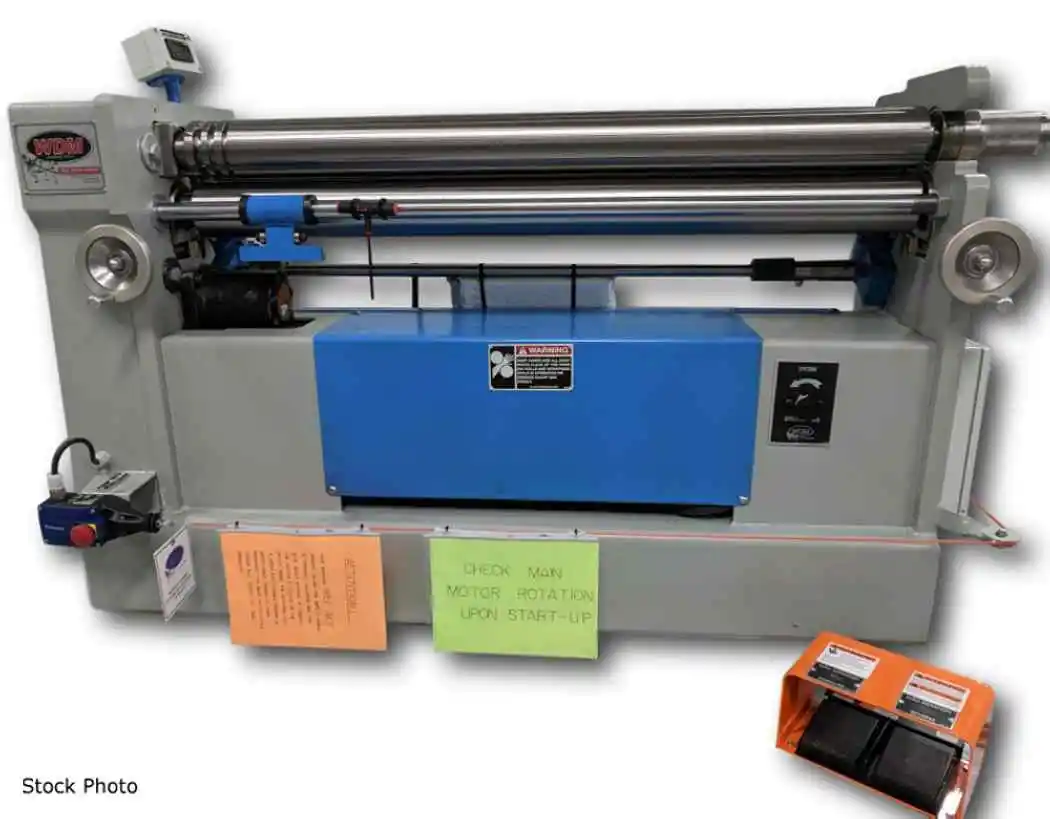

NEW WALDEMAR WDM 310-4-60

WALDEMAR (NEW) MODEL WDM 310-4-60 INITIAL PINCH
SHEET BENDING ROLL

14 GA X 60" CAPACITY
ELECTRONICS TO NFPA 79 SPECIFICATIONS
230/460 VOLT, 3 PHASE, 2 HP TEFC MOTOR
120 VOLT CONTROL CIRCUIT
1045 STEEL ROLLS

FEATURES
- 2-ROLL DRIVE
ELECTRIC HELICAL GEAR MOTOR
ELECTRIC HOLDING BRAKE
- FORWARD REVERSE FOOT PEDAL FOR ROLL ROTATION
- 0-20 FPM VARIABLE ROLLING SPEED
- 120 VOLT CONTROL CIRCUIT
- PINCH ROLL STARTING GROOVE
- OVERLOAD PROTECTED
- SEALED SPHERICAL ROLLER BEARINGS ON ALL
MAIN POINTS
- SWING-OUT TOP ROLL WITH LATCH HANDLE THAT CAN
BE UNLOCKED UNDER BENDING PRESSURE

OPTIONS AVAILABLE - PRICE ON REQUEST
- HARDENED AND POLISHED ROLLS
55-60 RC FLAME HARDENED 1045 MATERIAL
- CONE ATTACHMENT
- CIRCULAR GROOVES IN ROLLS FOR ROLLING RODS
OR SHEETS WITH WIRE EDGES 3/8", 1/2" AND 5/8"
- 3RD ROLL DRIVE

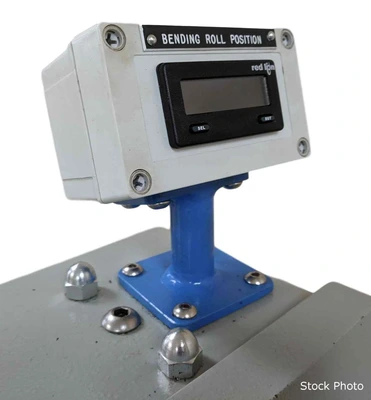

- ELECTRIC DRO
- POWER BENDING ADJUSTMENT
- POWER DISC
- EXTENDED SHAFT FOR ROLLING ANGLES, FLATS, PIPES
AND RODS
- SECTION DIES FOR EXTENDED SHAFTS
- GUIDE ROLL ATTACHMENT TO REMOVE TWIST SPIRAL
- ADDITIONAL STARTING GROOVE
Power: 230 (3-Phase)
