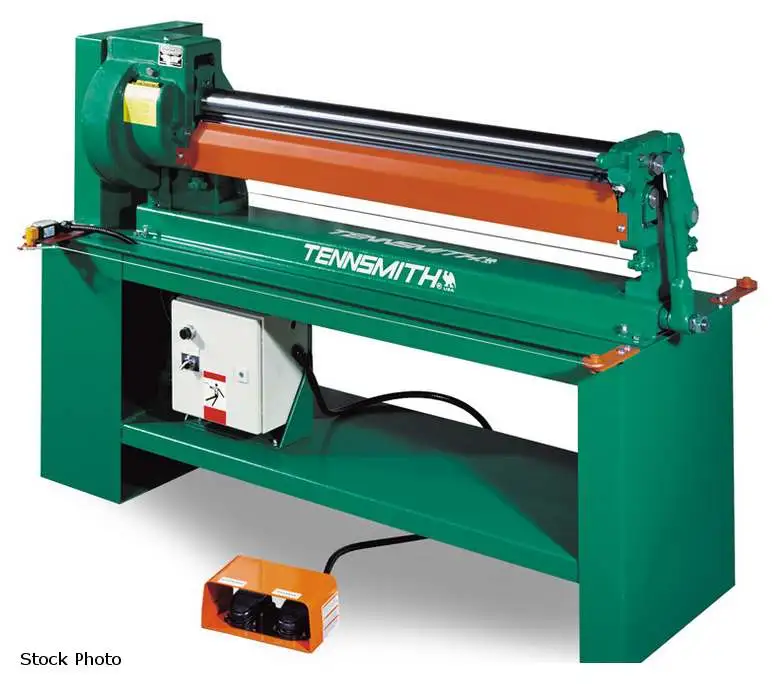

NEW TENNSMITH SR48P SLIP ROLL

TENNSMITH (NEW) MODEL SR48P POWERED SLIP ROLL

16 GAUGE CAPACITY, MILD STEEL
49" MAXIMUM FORMING LENGTH
3" ROLL DIAMETER
1-1/2" MINIMUM FORMING RADIUS
3/8" 1/2" 5/8" WIRE GROOVES
4:01 GEARING RATIO
22 RPM ROLL SPEED
220 VOLTS, 1 PHASE, 60 HZ, 3/4 HP MOTOR

ELECTRIC-POWERED DRIVE FOR PRODUCTION FORMING
OF CURVED PARTS AND TUBES MADE OF 16 GAUGE
AND LIGHTER SHEET METAL

FEATURES
- INDUSTRIAL QUALITY GEAR REDUCTION MOTOR
- FOOT PEDAL FOR INSTANT FORWARD AND REVERSE
- ELECTROMAGNETIC BRAKE
- SAFETY CABLE STOPS THE ROLLS WHEN TRIPPED
- 2 MAGNETIC MOTOR STARTERS
- ENCLOSED ELECTRICAL BOX WITH PILOT LIGHT
- INSULATED REINFORCED CONDUIT FOR ALL WIRING
- FULLY ENCLOSED DRIVE TRAIN
- ROLLS AND GEARS IN HARDENED BRONZE BUSHINGS
- PRECISION-TURNED, GROUND AND POLISHED HIGH
CARBON STEEL ROLLS
- HEAVY-DUTY CAST IRON FRAMES
- WELDED STEEL BASE
- LARGE ROLL ADJUSTING SCREWS
- SCALES FOR SPEEDING REPEAT SET-UP
- FRONT-MOUNTED HANDLE TO LIFT THE UPPER ROLL
FOR MATERIAL REMOVAL
Power: 220 (Single)
