Overview
Type:
Plate Bending Rolls including Pinch
Manufacturer:
FACCIN
Model:
4HEL-3146
Year:
2016
Stock #:
016972
Specifications
Dimensions252 X 85 X 105252 X 85 X 105
Weight59,50059,500

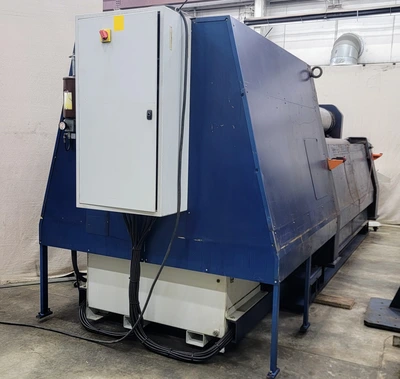

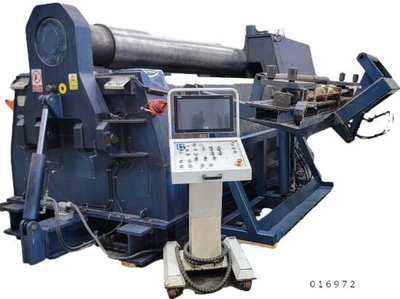

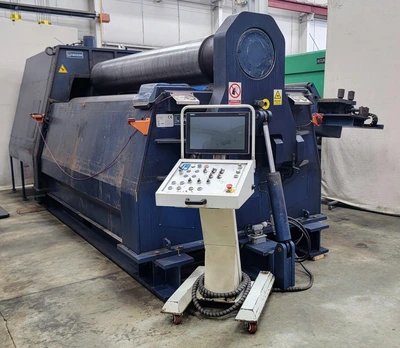

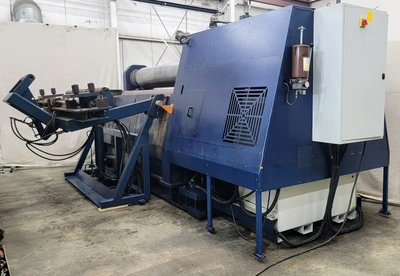

FACCIN (USED) MODEL 4HEL-3146 4- ROLL PLATE
BENDING ROLL

4 ROLLS
LINEAR SLIDES
120" MAXIMUM PLATE WIDTH
18.11" TOP ROLL DIAMETER
16.93" LOWER ROLL DIAMETER
13.39" SIDE ROLLS DIAMETER
441 TON BENDING FORCE ON TOP ROLL
25 FEET/MINUTE INFINITELY VARIABLE ROTATION SPEED
60 HP ROLLING POWER

FULL-LENGTH CAPACITY AT 37.7 KSI
- 1.42" BENDING THICKNESS WITH 90.5" INSIDE DIA.
- 1.18" PRE-BEND THICKNESS WITH 90.5" INSIDE DIA

FULL-LENGTH CAPACITY AT 52.2 KSI
- 1.22" BENDING THICKNESS WITH 90.5" INSIDE DIA.
- 0.95" PRE-BEND THICKNESS WITH 90.5" INSIDE DIA

STANDARD CONFIGURATION
- HARDENED POLISHED ROLLS
- CONE BENDING WITH ELECTRONIC CONTROL
- SIMULTANEOUS MACHINE MOVEMENTS
- MICRO-POSITIONING
- DESIGNED TO ACCEPT FUTURE UPGRADES
- EXTRA-LARGE DOUBLE SHAFT DROP END
- ELECTRONIC BALANCING SYSTEM FOR ROLL SYNCH
- TOP ROLL TILTING WITH HYD DROP END OPENING
- DUAL LINEAR SLIDE SYS FOR ROLLS TRANSLATION
- ULTRA-WIDE ROLL BEARING HOUSINGS
- 4 BEARINGS SUPPORTING EACH ROLL
- CENTRALIZED PUMP LUBRICATION SYSTEM
- PRESSURE GAUGES FOR PINCH ROLL MONITORING
- EXTRA TORQUE SPECIAL BRAKING POWER SYSTEM
- HIGH PRECISION AND PRODUCTIVITY PACKAGE
- SAFETY BARRIER WITH EMERGENCY STOP
- MACHINERY DIRECTIVE 2006/42/EC COMPLIANT

EQUIPPED WITH

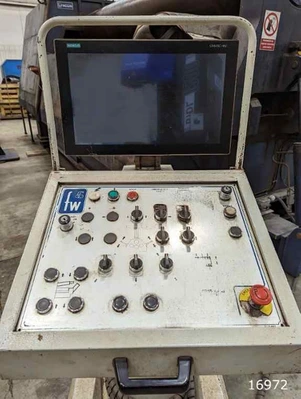

- SIEMENS PGS-ULTRA CNC
- OVERHEAD SUPPORT
- SIDE SUPPORT
- 4 AXIS CLAMPING FOR SIDE SUPPORT
- AIR-OIL EXCHANGER UPGRADE
