NEW FACCIN 4EDL-2122
Overview
Specifications
| Dimensions | 150 X 50 X 48 | 150 X 50 X 48 |
|---|---|---|
| Weight | 10,000 | 10,000 |

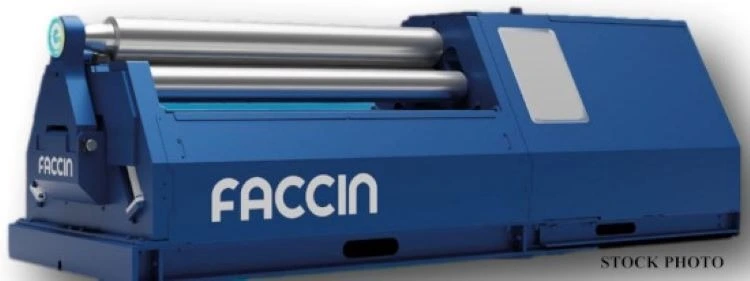

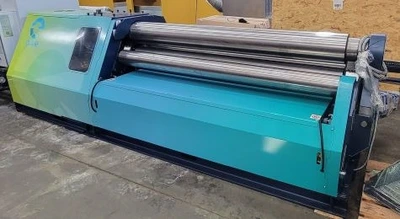

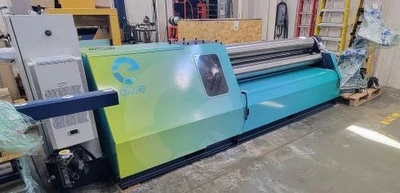

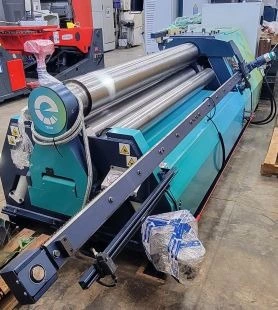

FACCIN (NEW) MODEL 4EDL-2122 4-ROLL BENDING ROLL
CAPACITY
- 78.75" PLATE WIDTH
- 9" TOP ROLL DIAMETER
- 8" LOWER ROLL DIAMETER
- 6" SIDE ROLLS DIAMETER
- 69 TON BENDING FORCE ON TOP ROLL
- 0-33 FPM INFINITELY VARIABLE ROTATION SPEED
- 8.5 HP
STANDARD EQUIPMENT
- CONE BENDING WITH ELECTRONIC CONTROL
AND BOTTOM ROLLS TILTING
- HARDENED AND POLISHED ROLLS
- SIEMENS (ONLY) TOUCH PANEL -
PGS-CLASSIC SERIES - NUMERIC CONTROLS
- AIR COOLING SYSTEM
- SIMULTANEOUS MACHINE MOVEMENT
- MICRO-POSITIONING
- DESIGNED TO ACCEPT FUTURE UPGRADES
- EXTRA LARGE DOUBLE SHAFT DROP END
- ELECTRONIC BALANCING SYSTEM FOR SYNCH OF ROLLS
- SYNAPTIC CONTROL FOR EASY MAINTENANCE
AND RELIABILITY
- EDRIVE HIGHER PRODUCTIVITY AND REDUCED
PRODUCTION COST
- LINEAR SYSTEM FOR SIDE ROLLS MOVEMENT
- ULTRA-WIDE ROLL BEARING HOUSINGS
- MSC BEARING SYSTEM FOR BENDING ROLLS
(4 - LARGE BEARINGS SUPPORTING EACH ROLL)
- EXTRA TORQUE AND SPECIAL BRAKING
POWER SYSTEM
- EDRIVE SILENT OPERATION
- CENTRALIZED PUMP LUMBRICATION SYSTEM
OPTIONS INCLUDED
- EYE-BEND SYSTEM
- FEED TABLE 6.5' X 6.5'
- AUTOMATIC EJECTOR
- LASER SCANNER
- UPGRADE TO SIEMENS PGS-ABSOLUTE CNC
- TOP SUPPORT
