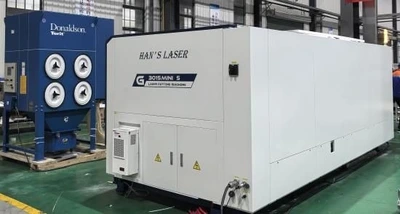

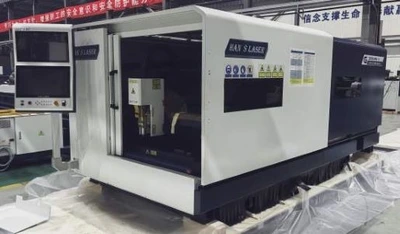

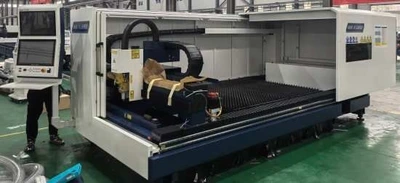

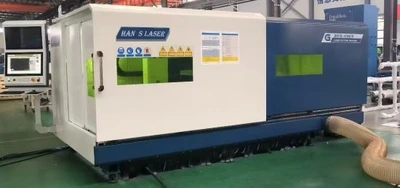

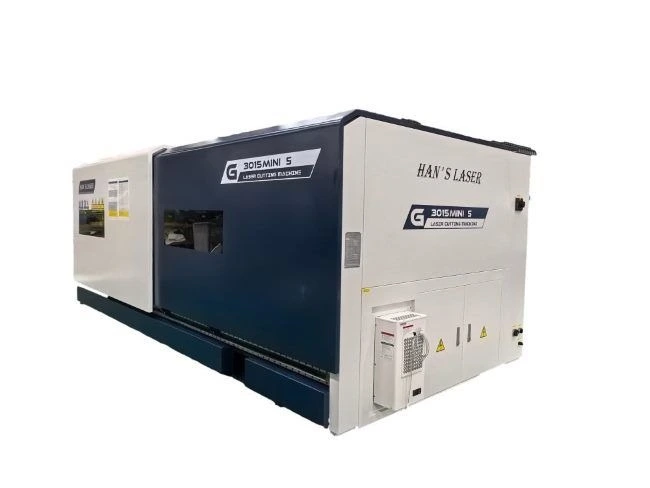

NEW HANS LASER 3015HF MINI S

HANS LASER (NEW) MODEL 3015HF MINI S
FIBER LASER - 6 KW HANS RESONATOR

10' X 5.25' SHEET (3100 MM X 1600 MM)
6 KW HANS FIBER RESONATOR
WITH WATER CHILLER
HAN'S LASER AUTO-FOCUS CUTTING HEAD
120 MINUTE MAXIMUM SPEED
1.5 G ACCELERATION
0.05 MM PRECISION
0.03 MM REPETITIVENESS
4,739 LB WEIGHT CAPACITY (2150 KG)
122" X AXIS (3100 MM)
63" Y AXIS (1600 MM)
4" Z AXIS (100 MM)
DONALDSON DUST COLLECTOR
INGERSOLL RAND AIR COMPRESSOR
TRANSFORMER+VOLTAGE REGULAR
TWIN PALLET SYSTEM
BOSCH REXROTH GUIDES
HANS 901 DIGITAL CONTROL
17" TOUCHSCREEN
METALIX CNC KAD PROGRAMMING
AND NESTING SOFTWARE
- 1 SEAT
CLASS 1 FDA CERTIFIED
2 YEAR WARRANTY - PARTS LABOR

STANDARD FEATURES
- BOSCH REXROTH INDRAMAT DRIVE
AND SERVO SYSTEM
- ATLANTA RACK-PINION HELICAL GEAR
- VIDEO MONITOR
1 CAMERA INSIDE THE MACHINE ENCLOSURE
1 CAMERA OVERLOOKING THE PALLET SYSTEM
ALLOWS REMOTE VIEWING
VIA TEAMVIEW SOFTWARE
- AUTO LUBRICATION SYSTEM
- STRESS-RELIEVED FRAMES MACHINED AS ONE UNIT

OPTIONS AVAILABLE - PRICE ON REQUEST
- 3KW 12KW HANS FIBER RESONATORS
- AIR CUTTING COMPRESSOR SYSTEM UPGRADE
- DONALDSON DUST COLLECTOR - 4 FILTERS
- GAS MIXER FOR ALUMINUM CUTTING
- AUTO LOAD-UNLOAD SYSTEMS - OVER/UNDER CARTS
GANTRY SYSTEM
5 SHELF/8 SHELF/10-SHELF TOWER
- WORK LIFTERS UNDER PALLET
- ADDITIONAL METALIX SOFTWARE SEAT
- METALIX SOFTWARE TRAINING
- TV CAMERA PACKAGE
- UL LISTED TRANSFORMER
- UL LISTING CERTIFICATE FOR AUTOMATION
- UL LISTING CERTIFICATE FOR LASER
- MEZZANINE
Power: 380 (3-Phase)
