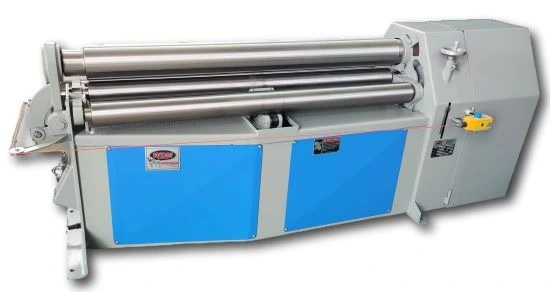

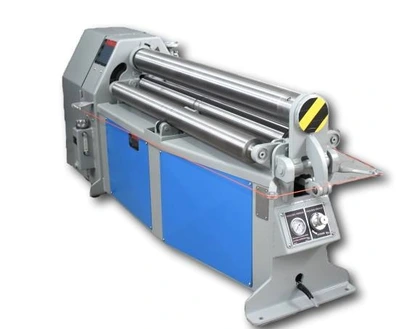

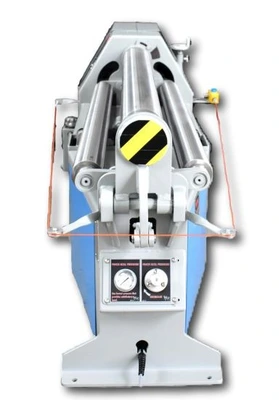

NEW 2025 WALDEMAR 430-6-5

WALDEMAR WMD (NEW) MODEL 430-6-5 DOUBLE
PINCH PLATE BENDING ROLL

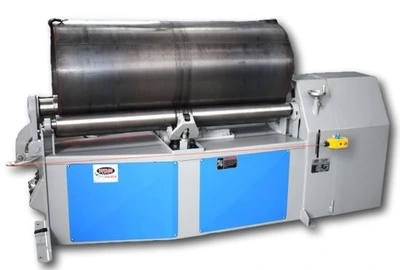

RATED ROLLING CAPACITY
- 1/4" MILD STEEL PLATE
- 24" DIAMETER
- 5' WIDE
6' NOMINAL TOP ROLL DIAMTER
0-22 FPM INFINITELY VARIABLE SPEED
5 HP TEFC MOTOR
230/460 VOLT, 3 PHASE

STANDARD FEATURES

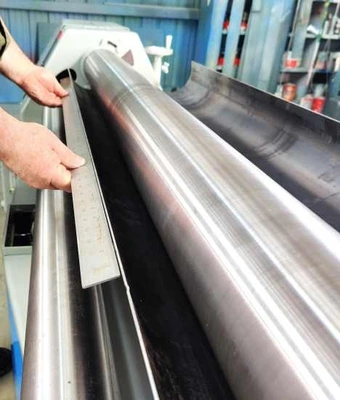

AUTOMATIC COMPENSATION FOR ROLL DEFLECTION
CREATING THE FOLLOWING FEATURES:
- NO CROWN REQUIRED IN THE ROLL
- ABILITY TO ROLL ANY THICKNESS AND WIDTH OF MATERIAL
UP TO MAX CAPACITY W/O ANY ROLLL DEFLECTION SYMPTIONS
SYMPTIONS IN THE WORKPIECE
- NO SHIMMING REQUIRED TO CORRECT "HOUR GLASS"
SHAPED CYLINDERS RESULTING FROM TOO MUCH ROLL CROWN
- NO SHIMMING REQUIRED TO CORRECT "BARREL"
SHAPED CYLINDERS RESULTING FROM NOT ENOUGH ROLL CROWN
- FLAME HARDENED AND POLISHED 1045 CARBON STEEL ROLLS

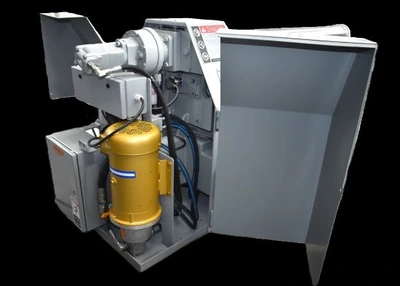

- LSHT TYPE HYDRAULIC DRIVE MOTOR WITH HIGH VOLUMETIC
AND OVERALL EFFICIENCY
- HYDRAULIC DRIVEN ROLLS WHICH PROVIDES INSTANT START, STOP, AND REVERSE
- TWO ROLL DRIVE
- NEMA 12 CONTROL CABINET WITH FUSED POWER SUPPLY
- ELECTRICS MEET NFPA 79 SPECIFICATIONS
- VARIABLE FREQUENCY DRIVE ON MAIN MOTOR
- INFINITELY VARIABLE ROLLING SPEED UP TO 22 FPM
- ELECTRONIC OVERLOAD PROTECTION
- SKF SPHERICAL ROLLER BEARING ON ALL MAIN BEARINGS
- SAFETY CABLE AROUND PERIMETER OF MACHINE
- BETA 4.2 ROLLING CONSOLE CONTROL
- PUSHBUTTON CONTROL OF MAIN FUNCTION AND 3 DIGITAL READOUTS TO
SHOW THE POSITION OF THE 3 LOWER ROLLS
- ROLLS DRIVEN DIRECTLY OR THROUGH PLANETARY GEAR TYPE SPEED REDUCERS
- MACHINE SETS DIRECTLY ON LEVEL FLOOR
- ABILITY TO ROLL SYMMETRICAL STEEL SECTIONS WITHOUT ADDITIONAL ATTACHMENTS
- HYDRAULIC OPERATED DROP END SUPPORT

EQUIPPED WITH
- HEAVY DUTY CONE ATTACHEMENT

OPTION AVAILABE - PRICE ON REQUEST
- SIDE SUPPORT EACH
- OVERHEAD SUPPORT 12' MAX
- PRE 4.2 (PRESET) CONTROL
- 4R-AP (AUTOMATIC CNC) CONTROL
Power: 230/460 (3-Phase)
