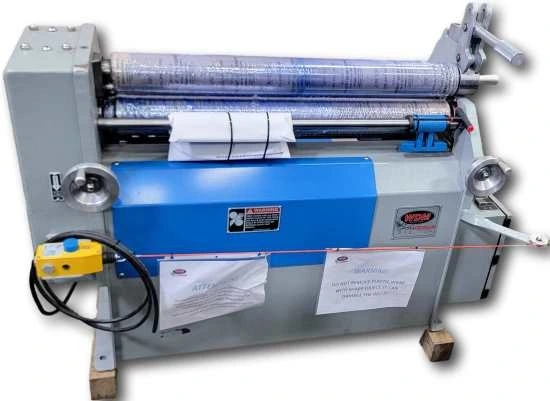

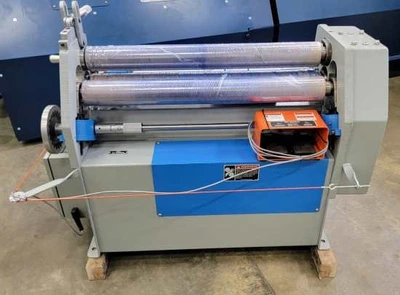

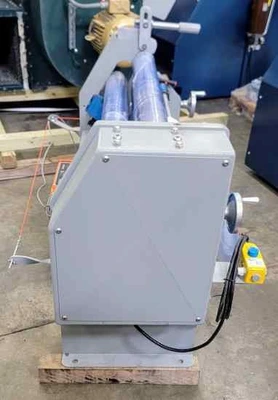

NEW WALDEMAR WDM 310-4-36

WALDEMAR (NEW) WDM MODEL 310-4-36 INITIAL PINCH
SHEET BENDING ROLL

RATED CAPACITY
- 4" NOMINAL TOP ROLL DIAMETER
ROLLING CAPACITY
- 10 GAUGE MILD STEEL PLATE X 3' WIDE
2 HP TEFC MOTOR
230 VOLT, 3 PHASE
ELECTRONICS TO NFPA 79 SPECIFICATIONS
1045 STEEL ROLLS
ELECTRICS TO NFPA-79 SPECIFICATIONS
24VDC CONTROL CIRCUIT

FEATURES
- CROWNED ROLLS
- TOTAL ELECTRIC OPERATION
- NEAR INSTANT START/STOP/REVERSE
- FORWARD REVERSE FOOT GUARDED FOOT SWITCH FOR ROLL ROATIONS
- RULE AND POINTER TO SHOW ROLL POSITION
- SPUR GEAR 2 ROLL DRIVE
- SAFETY/EMERGENCY STOP CABLE ON 3 SIDES OF THE MACHINE
- PINCH ROLL STARTING GROOVE
- OVERLOAD PROTECTED
- NEMA PREMIUM EFFICIENT ELECTRIC HELICAL GEAR MOTOR W/HOLDING BRAKE FOR ROLL ROTATION
- GEARBOX LUBED FOR LIFE
- HEAY DUTY ALL GEAR DRIVE
- SEALED BALL BEARINGS ON ALL MAIN POINTS
- ROLLS TILT FOR CONE ROLLING
- MANUALLY OPERATED LATCH HANDLE WITH SWING OUT TOP ROLL
- ACCURATELY MACHINED, COMPACT, STREAMLINED, AND ALL WELDED STEEL FRAME
- VARIABLE ROLL SPEED 0-20 FPM

OPTIONS AVAILABLE - PRICE ON REQUEST
- HARDENED AND POLISHED ROLLS
55-60 RC FLAME HARDENED 1045 MATERIAL
- CONE ATTACHMENT
- CIRCULAR GROOVES IN ROLLS FOR ROLLING RODS
OR SHEETS WITH WIRE EDGES 3/8", 1/2" AND 5/8"
- ELECTRIC DRO
- POWER BENDING ADJUSTMENT
Power: 230 (3-Phase)
