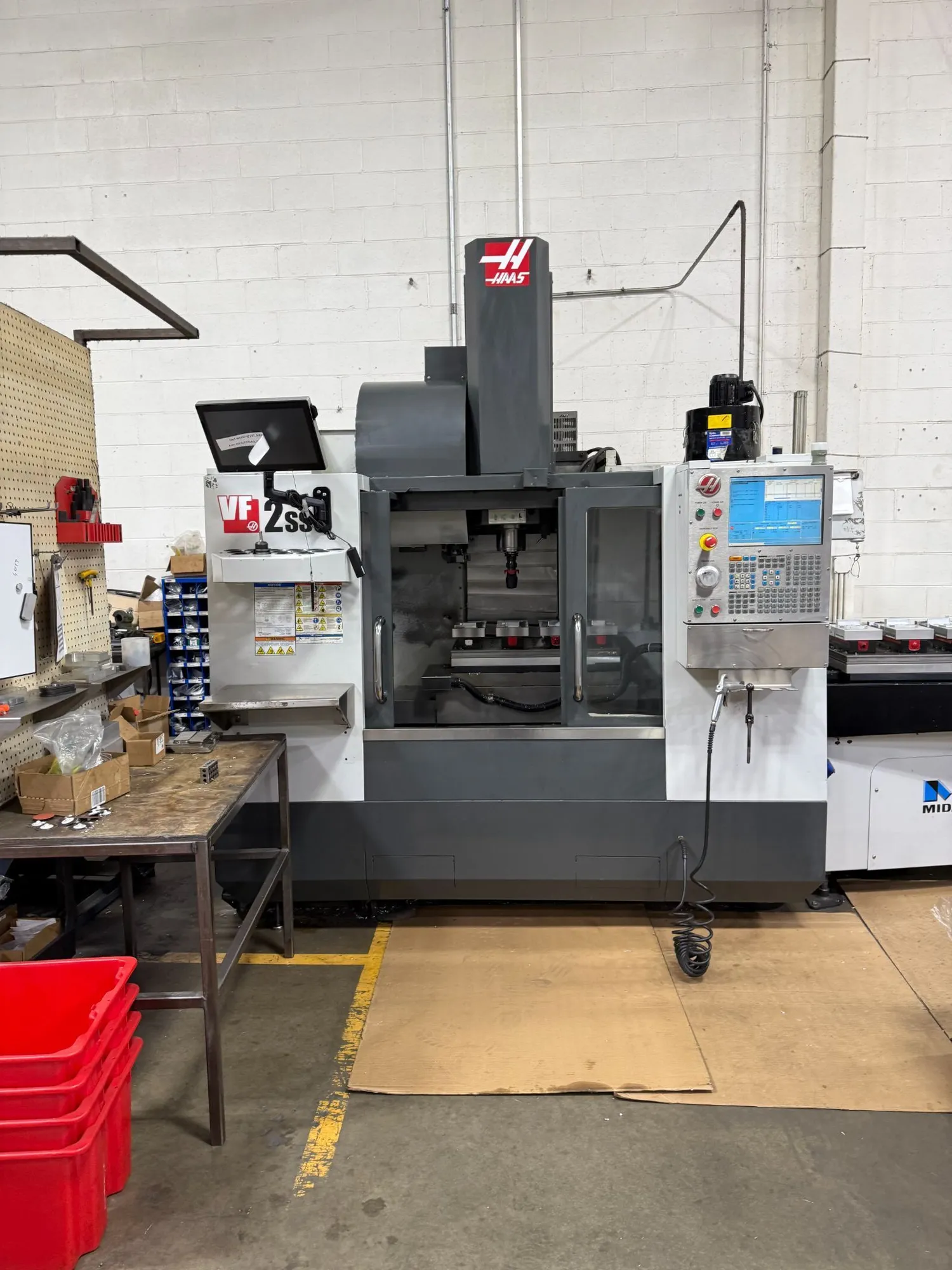

HAAS VF-2SS vertical machining center, 2010 model, used condition. Features 30" X, 16" Y, 20" Z travels, 30 HP power, 12000 RPM, 24 ATC, and CT/BT 40 taper. Table dimensions are 14" x 36". Ideal for precision machining tasks.
| X | 30" | 762 mm |
| Y | 16" | 406.4 mm |
| Z | 20" | 508 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 14" | 355.6 mm |
| Table-L | 36" | 914.4 mm |
| Control | CNC (Haas CNC Control) | CNC (Haas CNC Control) |
Table Size: 36" x 14"
Table Capacity: 1,500 pounds
X-Axis Travel: 30″
Y-Axis Travel: 16″
Z-Axis Travel: 20″
Rapid Traverse Rate (X/Y/Z): 1,400 ipm
Spindle Taper: CAT 40
Spindle Speed: 12,000 rpm
Main Motor: 30 HP
ATC: 24
Equipped With:
Haas CNC Control
Through Spindle Coolant
WIPS
HSM
Chip Auger
Midaco Pallet Changer
