USED AMERICAN PROCESS SYSTEMS DRB 18

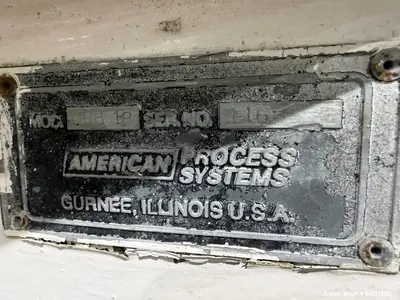

Manufacturer Information

Manufacturer: American Process Systems

Model: DRB 18

Equipment Type: Ribbon Blender / Batch Mixer

Capacity: 18 Cubic Feet (Approx. 135 Gallons)

Serial Number: 1163

Construction: Industrial duty (carbon steel frame)

Description

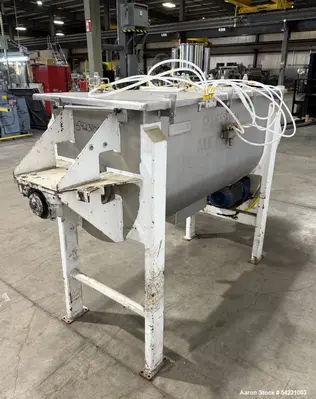

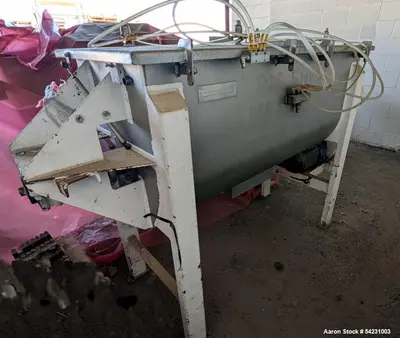

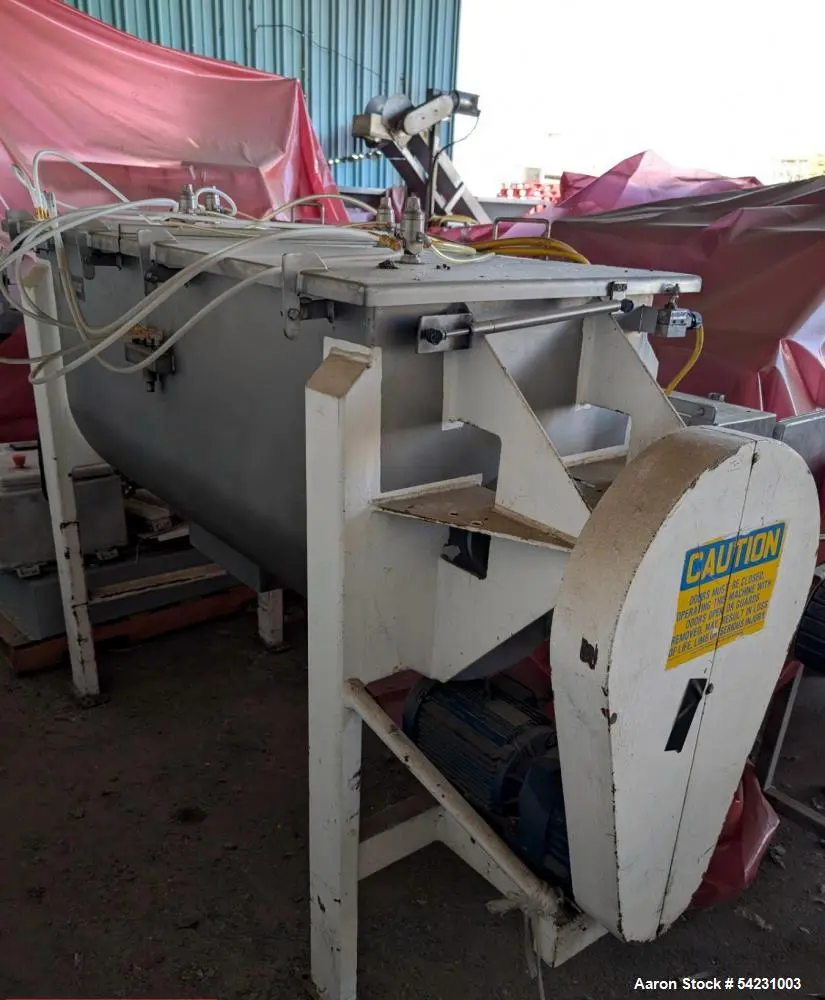

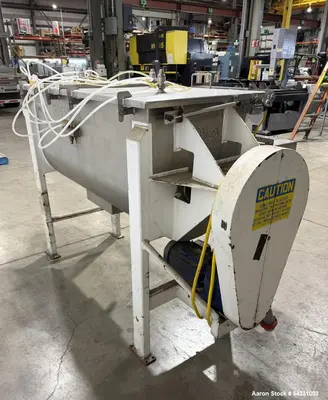

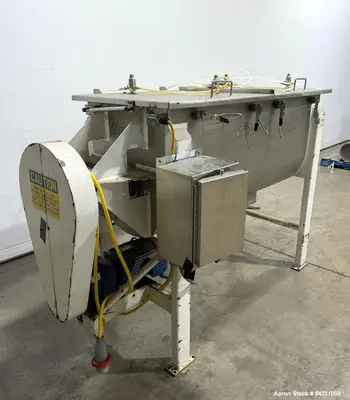

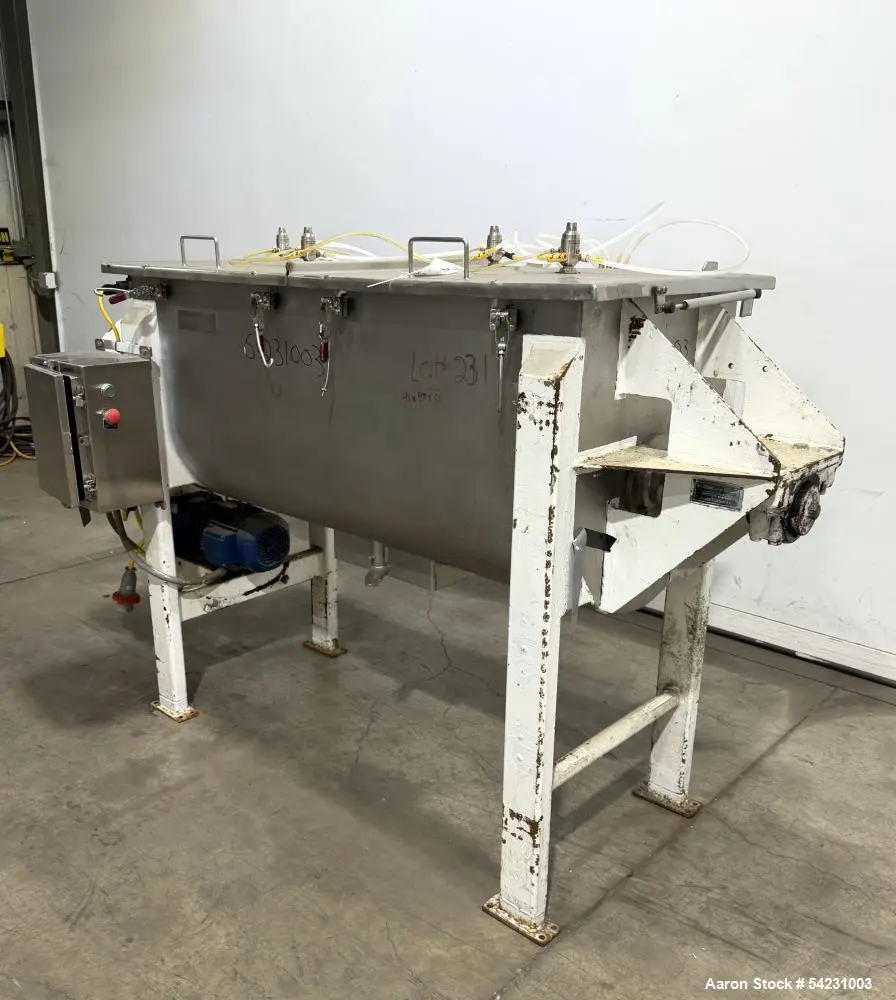

This used American Process Systems ribbon blender, Model DRB 18, is a compact yet robust batch mixing solution designed for uniform blending of powders, granules, and dry bulk solids. With an 18 cubic foot (135 gallon) capacity, this blender is well suited for pilot-scale production, specialty manufacturing, and industrial batch processing.

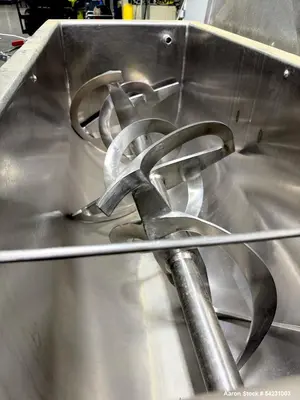

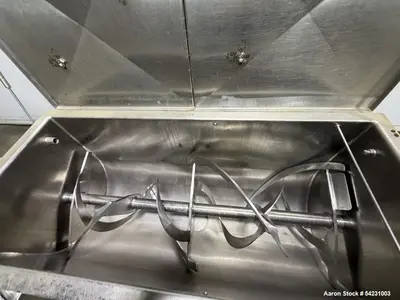

The unit features a 60" long x 24" wide x 28" deep trough with a 2-inch diameter shaft fitted with welded inner and outer ribbons for efficient axial and radial mixing. Discharge is handled via a 6-inch center bottom outlet with gate valve, providing controlled product release. Mixing power is supplied by a 5 HP motor through a gear reducer, with speed control via an Allen-Bradley PowerFlex 525 VFD, allowing precise process adjustment.

Specifications

Manufacturer: American Process Systems

Model: DRB 18

Type: Ribbon blender

Total Capacity: 18 cubic feet / 135 gallons

Trough & Mixing Assembly

Trough Dimensions: Approx. 60" L x 24" W x 28" D

Shaft Diameter: 2 inches

Ribbon Construction: Welded ribbons

Outer Ribbon: 1-1/2" wide x 7/16" thick

Inner Ribbon: 2" wide x 3/16" thick

Discharge

Outlet: 6" center bottom outlet

Valve: Gate valve

Discharge Height: Approx. 25 inches

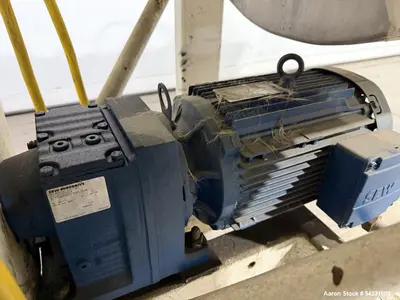

Drive & Controls

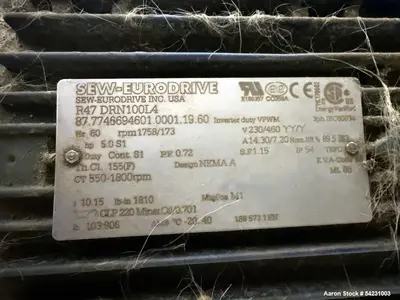

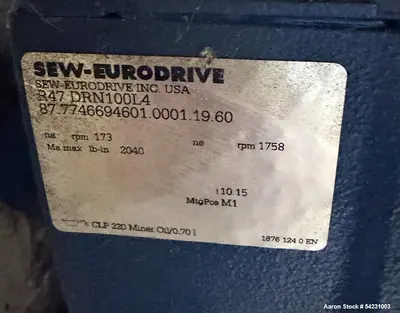

Motor Power: 5 HP

Motor Speed: 1758 RPM

Electrical: 3 Phase / 60 Hz / 230/460V

Gear Reducer Ratio: 10.15:1

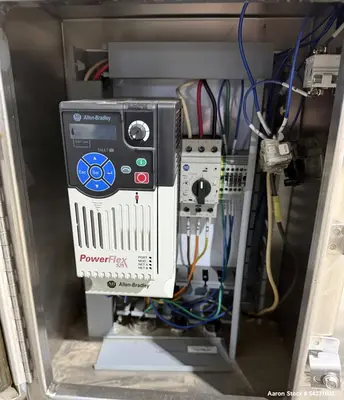

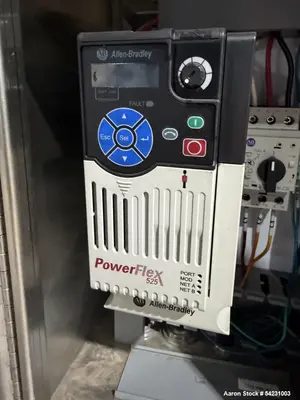

Drive: Allen-Bradley PowerFlex 525 VFD (panel mounted)

Mounting

Frame: Carbon steel

Support: 4 carbon steel legs

Applications

Dry powder blending

Granular material mixing

Batch processing

Industrial dry mixing

Pre-blending prior to packaging

What Might This Be Used For

Homogeneous blending of dry ingredients

Mixing powders with minor additives

Batch preparation for downstream processing

Uniform blending of granular solids

Specialty product formulation

Pilot or small-scale production runs

Products This Machine Is Commonly Used For

Food ingredients

Nutraceutical powders

Chemical blends

Detergents

Fertilizers

Plastic resins

Minerals

Industrial powders

Specialty dry blends

Agricultural products
