| Dimensions | 66 X 78 X 88 | 66 X 78 X 88 |
| Weight | 2,200 | 2,200 |

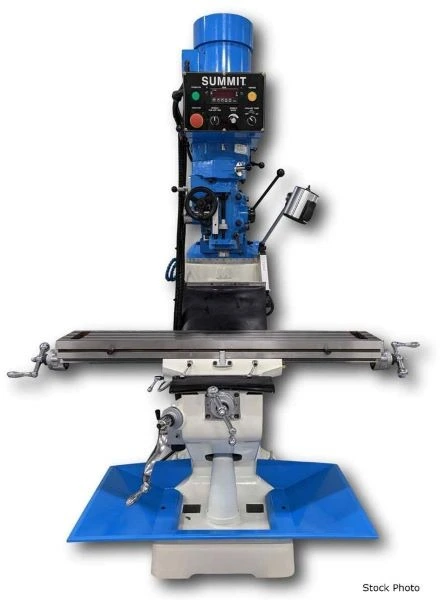

SUMMIT (NEW) MODEL EVS-349B VERTICAL MILL
INF VARIABLE SPINDLE SPEEDS
0 - 4,300 RPM
R-8 SPINDLE TAPER
5" SPINDLE TRAVEL
.0015/.003/.006 IPR SPINDLE FEEDS
+/- 90 DEGREES HEAD MOVEMENT SIDE TO SIDE
+/- 45 DEGREES HEAD MOVEMENT FRONT TO BACK
3 HP, 220 VOLTS, 3 PHASE
TABLE
- 9" X 49" X 3-1/8"
- 31" LONGITUDINAL FEED
- 13" CROSS FEED
- 850 LB WORKPIECE WEIGHT
OVERARM
- 360 DEGREE ROTATION
- 15" ADJUSTMENT
- 0" - 17.5" SPINDLE NOSE TO TABLE
STANDARD FEATURES
- HEAVY CAST IRON CONSTRUCTION
- DOVE TAIL WAYS ON KNEE AND COLUMN
- TURCITE B INSERTED GUIDEWAYS
- DOUBLE TABLE LOCKS
- WIPERS ON SADDLE AND COLUMN
- RACK AND PINION RAM MOVEMENT
- HEAD TILTS AND SWIVELS
- BUILT-IN COOLANT SYSTEM
- ONE-SHOT LUBRICATION
- ADJUSTABLE LONGITUDINAL TABLE STOPS
- FULL ELECTRICS WITH LOW VOLTAGE CONTROLS
- INVERTER-DUTY, HIGH-ENERGY, HI-EFFICIENCY MOTOR
- COMPACT AC INVERTER DRIVES
- ELECTRONIC INVERTER CONTROLLED BRAKING
ACCESSORIES INCLUDED
- OIL GUN
- CLAMPING KIT
- DRAW BAR
- SERVICE WRENCHES AND TOOLS
- R-8 COLLET SET
- WAY COVERS
- HALOGEN WORK LIGHT
- CHIP PAN
OPTIONS INCLUDED
- X-AXIS POWERFEED - INSTALLED
- NEWALL 2 AXIS DIGITAL READOUT INSTALLED
Power: 220 (Single)
