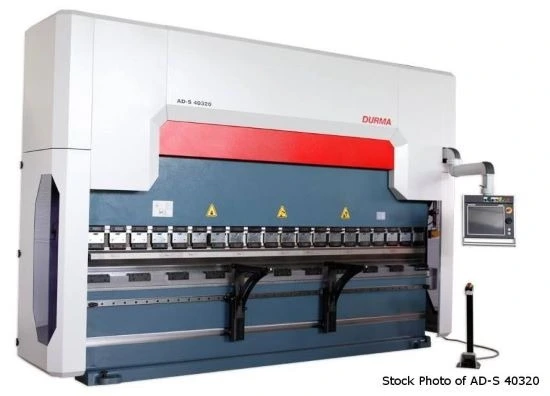

NEW DURMA AD-S 40400

DURMA (NEW) MODEL AD-S 40400 CNC HYDRAULIC
PRECISION PRESS BRAKE WITH DA-66T CONTROL

440 US TONS
13' 3" BENDING LENGTH
11' 1" BETWEEN COLUMNS
41.3" TABLE HEIGHT
6"/11.8" TABLE WIDTH (NARROW/WIDE)
14.37" STROKE
24.8" DAYLIGHT
20.07" THROAT DEPTH
330"/MINUTE Y-AXIS RAPID SPEED
19"/MINUTE Y-AXIS WORKING SPEED
284"/MINUTE Y-AXIS RETURN SPEED
0.0004" RAM REPEATABILITY
827"/MINUTE BACKGAUGE (X-AXIS) WORKING SPEED
29.5" BACKGAUGE (X-AXIS) WORKING DISTANCE
709"/MINUTE BACKGAUGE (R-AXIS) WORKING SPEED
9.84" BACKGAUGE (R-AXIS) WORKING HEIGHT
49 HP MOTOR

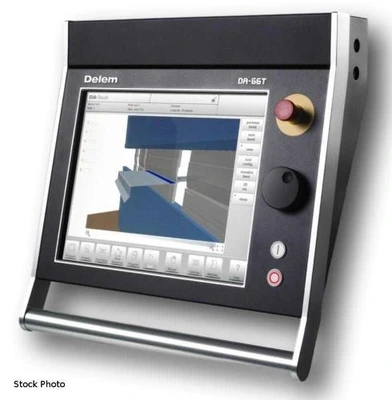

DELEM DA-66T CNC CONTROL
- 2D GRAPHICAL TOUCH SCREEN PROGRAMMING MODE
- 3D VISUALIZATION IN SIMULATION PRODUCTION
- 17.5" HIGH RESOLUTION COLOR TFT
- DELEM MODUSYS COMPATIBILITY
- USB PERIPHERAL INTERFACING
- USER-SPECIFIC APPLICATION SUPPORT
- SENSOR BENDING AND CORRECTION INTERFACE
- PROFILE-TL OFFLINE SOFTWARE

STANDARD FEATURES
- 4-AXIS CNC Y1, Y2, X, R
- FIESSLER LASER FINGER SAFETY - MANUAL HT ADJUST
- SERVO DRIVEN BACKGAUGE SYSTEM (X-AXIS)
LINEAR GUIDE AND BALLSCREW DESIGN
- UNIVERSAL WEDGE STYLE PUNCH CLAMP
(FOR AMERICAN OR EUROPEAN STYLE PUNCHES)
- BOTTOM DIE RAIL ADAPTER
(FOR AMERICAN AND EUROPEAN STYLE DIES)
- PRECISION GROUND PUNCH/4-WAY DIE
TOP TOOL - ROLLERI P135.75.R08
BOTTOM TOOL - ROLLERI M.460R.85
- 2 SLIDING FRONT SUPPORT ARMS WITH T-SLOT,
TILTING STOP AND FULL LENGTH LINEAR GUIDE
- 2 BACKGAUGE FINGER BLOCKS
- CNC CONTROLLED MOTORIZED CROWNING
- LED WORK LIGHT ON TOP RAM

HYDRAULIC OIL REQUIRED
