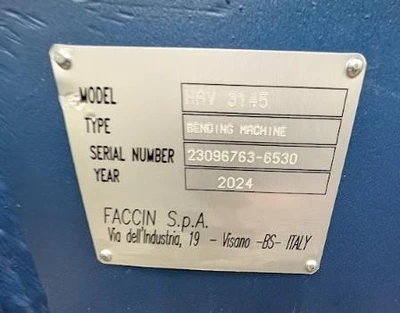

NEW 2024 FACCIN HAV 3145
Overview
Specifications
| Dimensions | 245 X 107 X 89 | 245 X 107 X 89 |
|---|---|---|
| Weight | 52,900 | 52,900 |

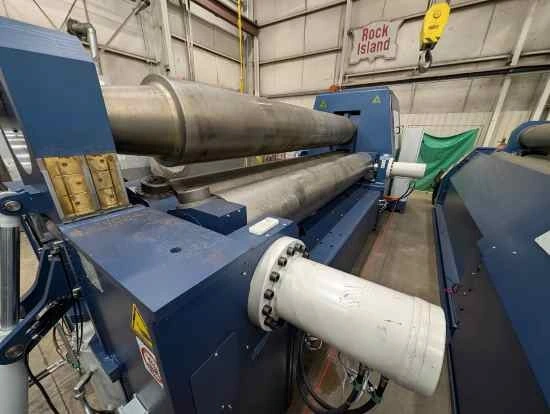

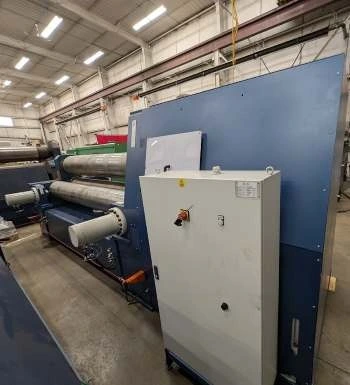

FACCIN (NEW) MODEL HAV 3145 VARIABLE AXIS 3-ROLL PLATE ROLL
10' PLATE WIDTH
17.72" TOP ROLL DIAMETER
15.75" SIDE ROLLS DIAMETER
298 TON BENDING FORCE ON TOP ROLL
3,336 PSI
23 FT/MINUTE MAXIMUM ROTATION SPEED
50 HP
BENDING THICKNESS WITH 37.7 KSI
- 1.58" FULL LENGTH WITH 89" ID
- 1.26" FULL LENGTH WITH 23" ID
- 1.25" HALF LENGTH WITH 89" ID
PRE-BENDING THICKNESS WITH 37.7 KSI
- 1" FULL LENGTH WITH 89" ID
- 0.63" FULL LENGTH WITH 23" ID
- 1.25" HALF LENGTH WITH 89" ID
BENDING THICKNESS WITH 52.2 KSI
- 1.34" FULL LENGTH WITH 89" ID
- 1.1" FULL LENGTH WITH 23" ID
- 1.69" HALF LENGTH WITH 89" ID
PRE-BENDING THICKNESS WITH 52.2 KSI
- 0.8" FULL LENGTH WITH 89" ID
- 0..51" FULL LENGTH WITH 23" ID
- 1" HALF LENGTH WITH 89" ID
STANDARD FEATURES
- HARDENED AND POLISHED ROLLS

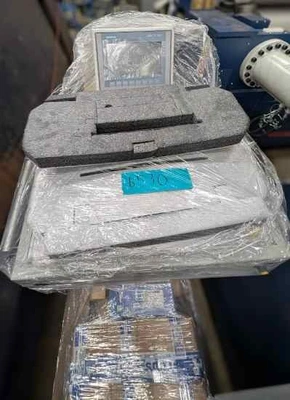

- SIEMENS TOUCH PANEL - PGS-CLASSIC SERIES - NUMERIC CONTROLS
- CONICAL BENDING WITH ELECTRONIC CONTROL
- ADVANTAGE PKG (HIGH PRECISION PRODUCTIVITY)
- SIMULTANEOUS MACHINE MOVEMENT
- MICRO-POSITIONING
DESIGNED TO ACCEPT FUTURE UPGRADES
- MACHINE PREPARED FOR RETROFITTING OF SUPPORTS (5 AXES)
- MACHINE PREPARED FOR RETROFITTING OF LOAD/FEED SYSTEMS
- MACHINE PREPARED FRO CNC UPGRADES
BEST PREBENDING QUAILITY
- LATERIAL ROOLS DIAMETERS AND BEARINGS CAPACITY
- MINIMUM PREBENDING OFFSET FOR LATERAL ROLLS
- HIGHEST PINICHNG FORCE
- EXTRA LATERAL ROLLS BLOCKING POWER
- +200% OF BRAKING TORQUE WITH BRAKES OR MOTORS
EXTRA LONG DROP END
- SUPERIOR RIGIDITY (PERFECT SHELL STRAIGHTNESS)
- MINIMUM STRUCTURE DEFORMATION (LONG AND HEAVY)
- STABILITY OF THE FRONT UPRIGHT
ELECTRONIC BALANCING SYSTEM FOR SYNCHRONIZED OF MOVING ROLLS
- SIEMENS PLC CONTROLLED THROUGH PROPORTIONAL VALVES
- EXTREME ACCURACY (0,1 MM BALANCING TOLERANCE)
- RECORD RELIABILITY (FACCIN STANDARD FOR 30 YEARS)
- NO WEAR AND LOSS OF PRECISION THROUGH THE YEARS
CLIMATE ONCTROL FOR HYDRAULIC OIL
PRESSURE GAUGES FOR CONSTANT BENDING MONITORING
CENTRALIZED PUMP LUBRICAITON SYSTEM
OPTION INCLUDED
- SIEMENS - PGS-CLASSIC NC CONTROL
- CONICAL BENDING WITH ELECTRONIC CONTROL
- FACCIN AP - SIMULTANEOUS MOVEMENT
- FACCIN AP - PROPORTIONAL MOVEMENTS
- FACCIN AP - MACHINE PREPARED FOR FUTURE UPGRADES
OPTIONS AVAILABLE - PRICE ON REQUEST
- ADVANCED WIRELESS CONTROL- ALL POWER OF YOUR FACCIN PLATE ROLL IN YOUR HAND
