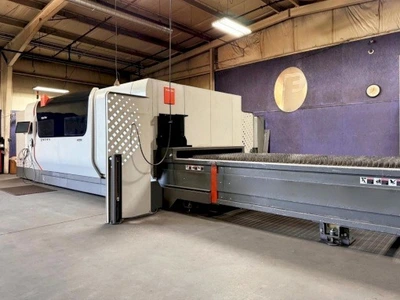

USED 2020 BYSTRONIC BYSTAR FIBER 3015
Overview
Specifications
| Dimensions | 468 X 224 X 126 | 468 X 224 X 126 |
|---|
BYSTRONIC (USED) BYSTAR FIBER 3015 LASER CUTTING
118.11" X - NOMINAL SHEET SIZE
59.05" Y - NOMINAL SHEET SIZE
122.01" X - CUTTING AREA
62.20" Y - CUTTING AREA
3.93 Z - CUTTING AREA
4,724 IPM MAX POS SPEED PARALLEL AXIS X/Y
6,692 IPM MAX SIMULTANEOUS POS SPEED
+/- .01968" EDGE DETECTION ACCURACY
1,985 LBS MAX WORKPIECE WEIGHT
25 SEC SHUTTLE TABLE CHANGEOVER TIME
FIBER WAVELENGTH
BYVISION CNC CONTROL
10,000 FIBER POWER SOURCE
10,000 WATTS POWER OUTPUT
.98"/1.18" MAX CUT MILD STEEL
1.18" MAX CUT STAINLESS STEEL
1.18" MAX CUT ALUMINUM
.59" MAX CUT BRASS
.47" MAX CUT COPPER
22KW TOTAL ELECTRIC CONSUMPTION
EQUIPPED WITH

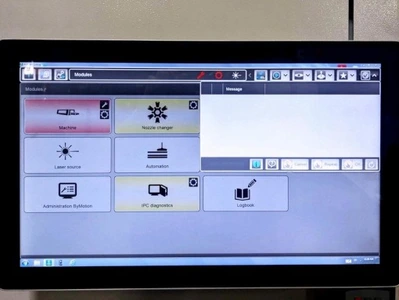

- BYVISION TOUCHSCREEN CNC CONTROL
- MANUAL CONTROL UNIT
- BYSTRTONIC IPG FIBER 10,000 POWER SOURCE

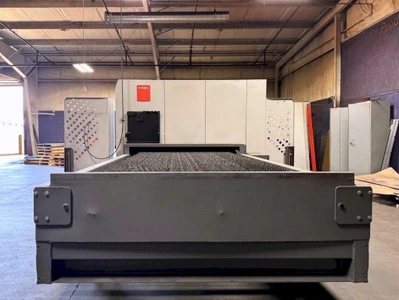

- 5' X 10' DUEL PALLET SHUTTLE TABLE

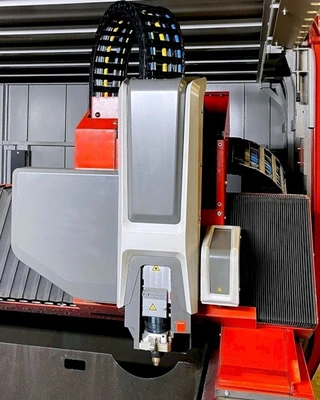

- HIGH SPEED CUTTING HEAD
- AUTO NOZZLE CLEANER
- CHILLER UNIT
- DUST COLLECTOR
