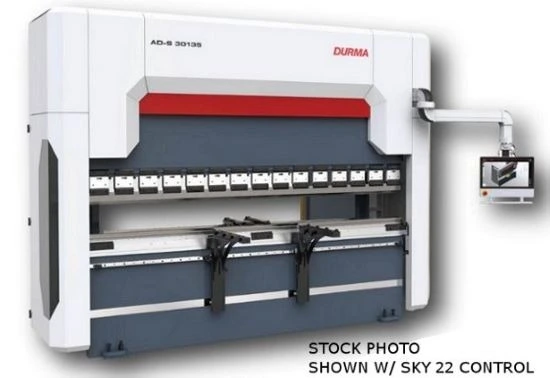

NEW DURMA AD-S 30135

DURMA (NEW) MODEL AD-S 30135 CNC HYDRAULIC
PRESS BRAKE

148 US TONS
10' BENDING LENGTH
8' 6" BETWEEN COLUMNS
35.4" TABLE HEIGHT
4.1" TABLE WIDTH
10.4" STROKE
20.8" DAYLIGHT
17.71 THROAT DEPTH
378"/MINUTE Y-AXIS RAPID SPEED
24"/MINUTE Y-AXIS WORKING SPEED
284"/MINUTE Y-AXIS RETURN SPEED
0.0004" RAM REPEATABILITY
1200"/MINUTE BACKGAUGE (X-AXIS) WORKING SPEED
25.5" BACKGAUGE (X-AXIS) WORKING DISTANCE
827"/MINUTE R-AXIS WORKING SPEED
20 HP MOTOR

DURMA SKY 22 CNC CONTROL
- AUTOMATIC BENDING ORDER
- 2D/3D DISPLAY MULTI-SIMULATION
- 21.5" HIGH RESOLUTION COLOR TFT
- WINDOWS 10 OPERATING SYSTEM
- NETWORK INTERFACE
- USB PERIPHERAL INTERFACING
- USER SPECIFIC APPLICATION SUPPORT
- SENSOR BENDING AND CORRECTION INTERFACE

STANDARD FEATURES
- 4 -AXIS CNC Y1, Y2, X, R
- FIESSLER LASER FINGER SAFETY - MANUAL HT ADJUST
- SERVO DRIVEN BACKGAUGE SYSTEM (X-AXIS)
LINEAR GUIDE AND BALLSCREW DESIGN
- UNIVERSAL WEDGE STYLE PUNCH CLAMP
(FOR AMERICAN OR EUROPEAN STYLE PUNCHES)
- BOTTOM DIE RAIL ADAPTER
(FOR AMERICAN AND EUROPEAN STYLE DIES)
- PRECISION GROUND PUNCH/4-WAY DIE
TOP TOOL - ROLLERI P97.75.R08
BOTTOM TOOL - ROLLERI M.460R.85
- 2 SLIDING FRONT SUPPORT ARMS WITH T-SLOT,
TILTING STOP AND FULL LENGTH LINEAR GUIDE
- 2 BACKGAUGE FINGER BLOCKS
- CNC CONTROLLED MOTORIZED CROWNING

HYDRAULIC OIL REQUIRED
