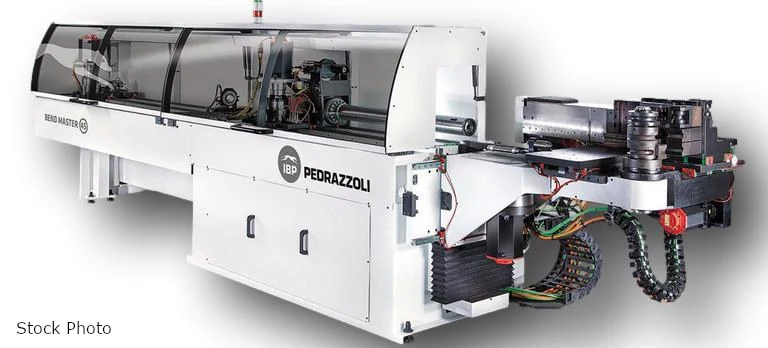

NEW PEDRAZZOLI BEND MASTER 45

PEDRAZZOLI (DEMO) BEND MASTER 45 HIGH-SPEED
ELECTRIC MANDREL BENDER

1.75" X .118 CAPACITY
CW AND CCW BENDING
6" MAXIMUM CLR CW
6" MAXIMUM CLR CW-CCW
1.57" MINIMUM INSIDE RADIUS W/STANDARD SPINDLE
VARIABLE RADIUS BENDING
190 DEGREES/182 DEGREES MAXIMUM BEND ANGLE
1.5-2 X DIAMETER MIN DISTANCE BETWEEN BENDS
3.9 SECTION MODULUS CM3
14.2" HORIZONTAL HEAD TRAVEL
11.4" VERTICAL HEAD TRAVEL
1 NUMBER OF BEND HEADS
PUNCHING AVAILABLE
10 + 1 OPTIONAL ELECTRICALLY CONTROLED AXES
FANUC DRIVE CONTROLLERS
+ OR - .05 MM PRECISION OF ELECTRIC AXIS
36"/SEC CARRIAGE SPEED
200 DEGREES/SEC BEND ARM SPEED
600 DEGREES/SEC TUBE ROTATION SPEED
3+ MAXIMUM TOOL STACKS
INTELLGENT MOTION SOFTWARE (IMS)
WEBCAM
118" MAX TUBE LENGTH ON FRONT STOP
181" MAX TUBE LENGTH ON REAR STOP
43" HIEGHT OF WORK PLANE
480 VOLT, 22KW

FEATURES
- CLOCKWISE AND COUNTER-CLOCK WISE BENDING
- VARIABLE AND MULTI-RADIUS BENDING IN THE SAME
CYCLE
- COMPACT BENDING HEAD DESIGN ACCOMMODATES MOST
APPLICATIONS
- INTUITIVE IMS TOUCHSCREEN CONTROL
- ELECTRIC AXIS FOR GREATER PRECISION
- FANUC DRIVE CONTROLLERS FOR IMPROVED
RELIABILITY
- INNOVATIVE TUBE STOP ALLOWS POSITIONING FROM
REAR OF CARRIAGE
- AUTOMATIC ADJUSTMENT OF TOOLS
- BOOST FOR TIGHT RADIUS BENDING W/SYNCHRONIZED
CONTROL OF AXIS
- TORQUE CONTROLLED POSITIONING OF CARRAIGE ON
INCLINE TOOTH PRECISION GEAR RACK
- CONTROLLED TORQUE OF CLAMP DIE AND PRESSURE DIE
- AUTOMATIC LUBRICATION WORK PIECE
- RAPID COUPLING SYSTEM FOR QUICK MANDREL ROD
INSTALLATION
- SAFETY LIGHT BARRIERS W/PROGRAMMABLE WORK ZONE
- CENTRAL LUBRICATION OF GUIDES AND BALL SCREWS
- INTEGRATED PART HANDLING OPTIONS AVAILABLE

OPTIONS INCLUDED
- BEND DIE RETURN UNIT
- ETHERNET CONNECTION
- RECHARGEABLE BATTERY
- INTELLGENT MOTION SOFTWARE (IMS) OFFICE REMOTE
- IGES CONVERSION PACKAGE
- WIPER DIE SUPPORT
- SAFETY BARRIER W/LASER SCAN
- ELECTRICAL MANDREL EXTRACTION
Power: 480 (3-Phase)
