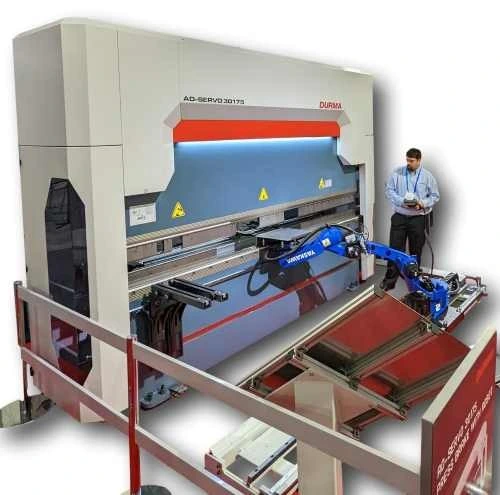

NEW DURMA AD-SERVO 30175

DURMA (NEW) MODEL AD-SERVO 30175 CNC PRECISION
PRESS BRAKE W/YASKAWA ROBOTIC AUTOMATION

192 TONS BENDING FORCE
10' BENDING LENGTH
8' 6" DISTANCE BETWEEN COLUMNS
10.4" STROKE
20.8" DAYLIGHT
17.71 THROAT
35.4" TABLE HEIGHT
4.1" TABLE WIDTH
438"/MINUTE Y-AXIS APPROACH SPEED
29"/MINUTE Y-AXIS BENDING SPEED
438"/MINUTE Y-AXIS RETURN SPEED
827"/MINUTE BACKGAUGE (X-AXIS) WORKING SPEED
TWO 5 HP MOTORS

DELEM DA-66T CNC CONTROL
- 2D GRAPHICAL TOUCH SCREEN PROGRAMMING MODE
- 3D VISUALIZATION IN SIMULATION PRODUCTION
- 17" HIGH RESOLUTION COLOR TFT
- FULL WINDOWS APPLICATION SUITE
- DELEM MODUSYS COMPATIBILITY
- USB PERIPHERAL INTERFACING
- USER SPECIFIC APPLICATION SUPPORT
- SENSOR BENDING CORRECTION INTERFACE
- DELEM PROFILE-TL OFFLINE SOFTWARE PACKAGE

STANDARD EQUIPMENT
- 4 AXES CNC Y1, Y2, X AND R
- FIESSLER AKAS-II LASER FINGER SAFETY- MAN HT ADJ
- SERVO DRIVEN BACKGAUGE SYSTEM (X-AXIS)
LINEAR GUIDE AND BALLSCREW DESIGN
- 2 SLIDING FRONT SUPPORT ARMS WITH T-SLOT,
TILTING STOP AND FULL LENGTH LINEAR GUIDE
- CNC CONTROLLED MOTORIZED CROWNING

OPTIONS INCLUDED
- 4-AXIS BACKGAUGE - X=25.5" X, R, Z1, Z2
- ROLLERI TPR.157.86.R1 TOP TOOL
- ROLLERI TMR.100.10.86 BOTTOM TOOL
- DURMA NEW STANDARD HYDRAULIC TOP CLAMP
- DURMA NEW STANDARD HYDRAULIC BOTTOM CLAMP
- HYDRAULIC POWERPACK FOR CLAMPS
- ROBOT PREPARATION
- YASKAWA ROBOTIC AUTOMATION

HYDRAULIC OIL ADDITIONAL
