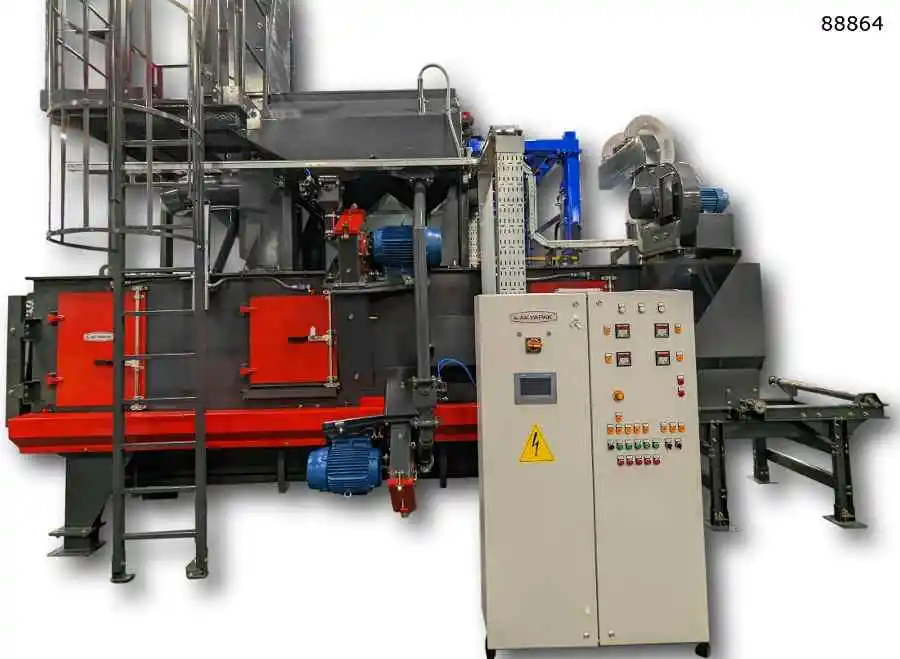

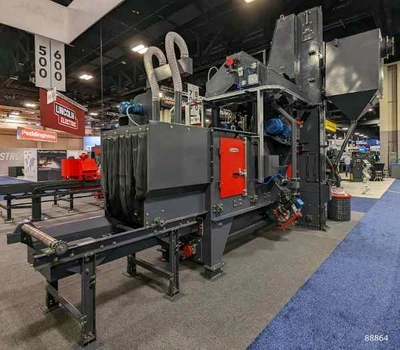

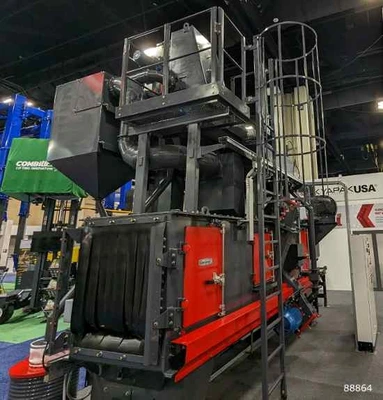

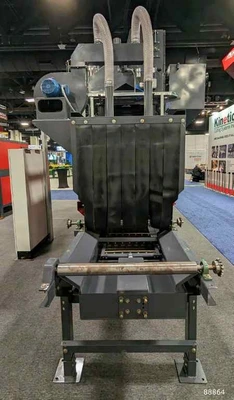

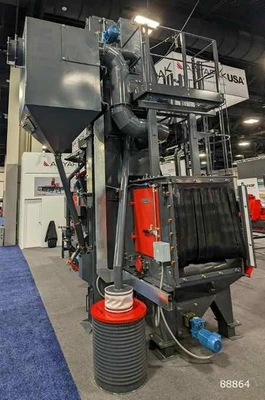

NEW AKYAPAK PER 8X10 R

AKYAPAK (NEW) MODEL PER 8X10 R SHOT BLASTING
MACHINE

40" PROFILE HEIGHT (MAXIMUM)
31" PROFILE WIDTH (MAXIMUM)
118" WORK PIECE LENGTH (MINIMUM)
374 LBS/FOOT WORK PIECE WEIGHT
20" TO 6.5 FEET/MINUTE WORKING SPEED
4 BLAST WHEELS X 15 HP
353 LBS/MINUTE ABRASIVE FLOW PER TURBINE
1,412 LBS/MINUTE TOTAL ABRASIVE FLOW
2540 CFM DUST COLLECTOR
81 HP

AUTOMATIC SHOT BLASTING PROCESS
- DOES NOT REQUIRE SKILLED LABOR
HANDLES PROFILES UP TO 31" X 40"
- BEAMS, ANGLES, BARS AND TUBES
4 BLASTING TURBINES
- POSITIONED 90 DEGREES TO THE PASSAGE OF PARTS
- UP TO WHITE METAL FINISH CONDITIONS
BLAST CABINET MADE OF 1010 STEEL
- INTERNAL LAYER OF MANGANESE STEEL (11/14 %)
REINFORCEMENT IN HOT AREAS
- HIGH CHROME CAST STEEL PLATES
BLOWERS AND EXTERNAL AUGER FOR RETURN OF SHOT
HIGHLY EFFICIENT ABRASIVE RECOVERY/SEPARATION SYS
STATE-OF-THE-ART FILTER FOR DUST FREE ENVIRONMENT
COMPLIANT WITH CE OR NEMA STANDARD REGULATIONS

OPTIONS AVAILABLE - PRICE ON REQUEST
- ELECTRIC MOTION DETECTION SENSOR FOR ELEVATOR
BELT, SCREW AND ROLLER CONVEYOR
- ABRASIVE FLOW VALVE CONTROL WITH ELECTRICAL
LINEAR ACTUATORS CONTROLLED BY HMI
- TRANSFER FOR LOADING AND UNLOADING PARTS
