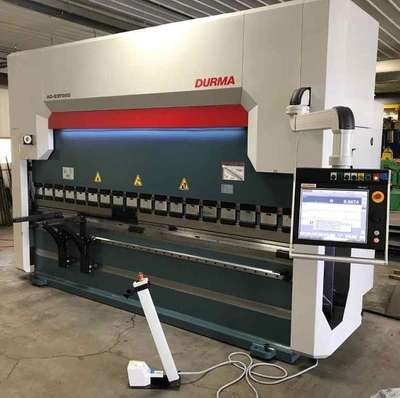

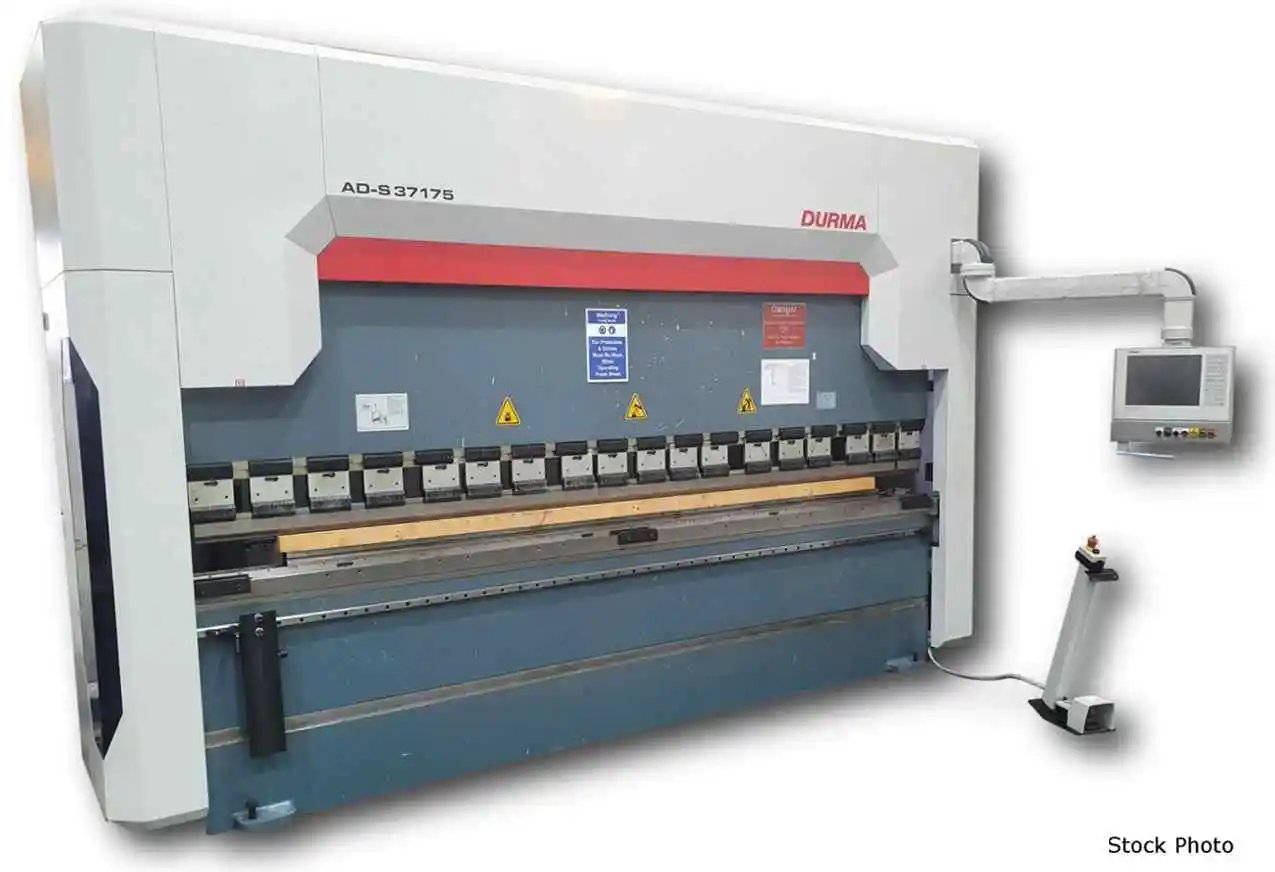

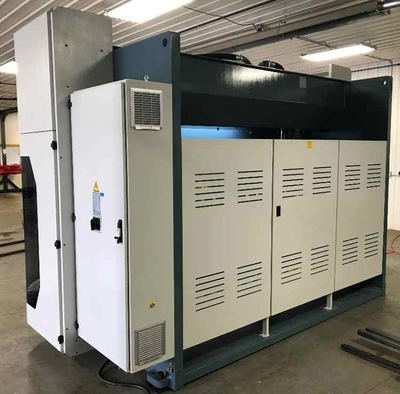

NEW DURMA AD-S 37175

DURMA (NEW) MODEL AD-S 37175 CNC HYDRAULIC
PRESS BRAKE

192 US TONS
12' 1" BENDING LENGTH
10' 2" BETWEEN COLUMNS
35.4" TABLE HEIGHT
4.1" TABLE WIDTH
10.4" STROKE
20.8" DAYLIGHT
17.71 THROAT DEPTH
331"/MINUTE Y-AXIS RAPID SPEED
24"/MINUTE Y-AXIS WORKING SPEED
237"/MINUTE Y-AXIS RETURN SPEED
0.0004" RAM REPEATABILITY
1200"/MINUTE BACKGAUGE (X-AXIS) WORKING SPEED
2-AXIS BACKGAUGE PACKAGE X, R
- X-AXIS = 25.59" R-AXIS = 9.8"
24 HP MOTOR

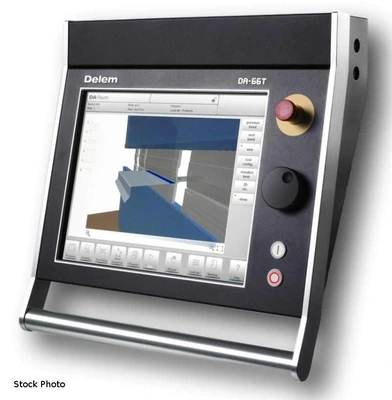

DELEM DA-66T CNC CONTROL
- 2D GRAPHICAL TOUCH SCREEN PROGRAMMING MODE
- 3D VISUALIZATION IN SIMULATION PRODUCTION
- 17" HIGH RESOLUTION COLOR TFT
- FULL WINDOWS APPLICATION SUITE
- DELEM MODUSYS COMPATIBILITY
- USB PERIPHERAL INTERFACING
- USER SPECIFIC APPLICATION SUPPORT
- SENSOR BENDING AND CORRECTION INTERFACE
- DELEM PROFILE-TL OFFLINE SOFTWARE PACKAGE

STANDARD FEATURES
- 4-AXIS CNC Y1, Y2, X, R
- FIESSLER LASER FINGER SAFETY - MANUAL HT ADJUST
- SERVO DRIVEN BACKGAUGE SYSTEM (X-AXIS)
LINEAR GUIDE AND BALLSCREW DESIGN
- UNIVERSAL WEDGE STYLE PUNCH CLAMP
(FOR AMERICAN OR EUROPEAN STYLE PUNCHES)
- BOTTOM DIE RAIL ADAPTER
(FOR AMERICAN AND EUROPEAN STYLE DIES)
- PRECISION GROUND PUNCH/4-WAY DIE
TOP TOOL - ROLLERI P135.75.R08
BOTTOM TOOL - ROLLERI M.460R.85
- 2 SLIDING FRONT SUPPORT ARMS WITH T-SLOT,
TILTING STOP AND FULL LENGTH LINEAR GUIDE
- 4 BACKGAUGE FINGER BLOCKS
- CNC CONTROLLED MOTORIZED CROWNING

HYDRAULIC OIL REQUIRED
Power: 220/460 (3-Phase)
