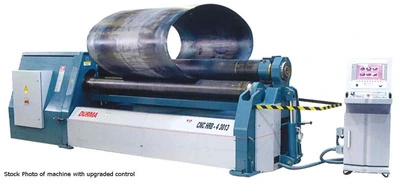

NEW DURMA HRB-4 3016

DURMA (NEW) MODEL HRB-4 3016 PLATE ROLL

122.05" BENDING LENGTH

FULL-LENGTH PRE-BENDING CAPACITY
- 64.50" INSIDE DIAMETER X 0.51" THICK
- 19.35" INSIDE DIAMETER X 0.39" THICK

FULL-LENGTH BENDING CAPACITY
- 64.50" INSIDE DIAMETER X 0.629" THICK
- 19.35" INSIDE DIAMETER X 0.51" THICK

12.99" TOP ROLL
11.81 " BOTTOM ROLL
9.45" SIDE ROLLS
1.97" MAXIMUM PASS THROUGH
44.29" WORKING HEIGHT
25 HP
10.63" MINIMUM ADDITIONAL TOP ROLL DIAMETER
105.67 GALLON HYDRAULIC TANK CAPACITY

STANDARD EQUIPMENT

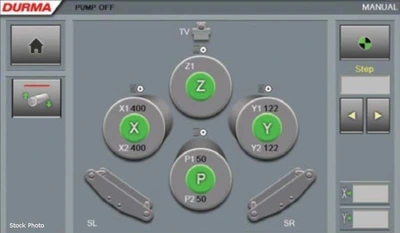

- EATON 7" CONTROL
- CONICAL BENDING
- INDUCTION HARDENED ROLLS
- STRESS RELIEVED STEEL CONSTRUCTION BODY
- HIGH TENSILE CARBON STEEL ROLLS
- SEALED SPHERICAL ROLLER BEARINGS
- 2- ROLL DRIVE SYSTEM
- FIXED TOP ROLL
- HYDRAULIC OPENING COVER
- ELECTRONIC SYNCHRONIZED ROLLS
- PLANETARY ROLL DESIGN
- MECHANICAL SYNCHRONIZED BOTTOM ROLLS
- ADJUSTABLE PINCHING PRESSURE
- OVERLOAD PROTECTION
- SAFETY WIRE AROUND MACHINE
- EMERGENCY STOP BUTTON ON CONTROL PANEL
- MANUAL LUBRICATION
- USER MANUAL
- CE

OPTIONS AVAILABLE - PRICE ON REQUEST
- 10" TOUCH SCREEN NC CONTROL
- COLOR GRAPHIC CNC CONTROL
- VARIABLE SPEED
- HYDRAULIC VERTICAL SUPPORT
- SIDE SUPPORT SYSTEM
- NC CONTROL FOR VERTICAL / SIDE SUPPORTS
- MATERIAL FEEDING TABLES
- POLISHED ROLLS
- OIL COOLER
- OIL HEATER
- AUTOMATIC CENTRALIZED LUBRICATION SYSTEM

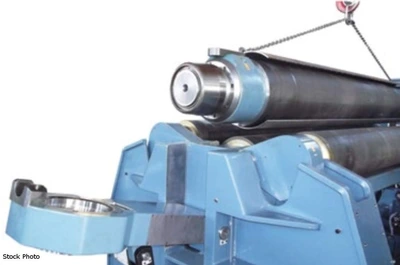

- INTERCHANGABLE TOP ROLL
Power: 220/460
