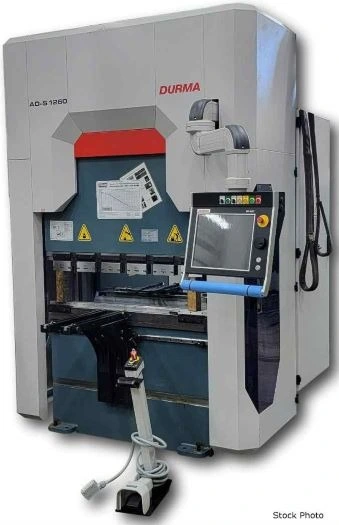

NEW DURMA AD-S 1260

DURMA (NEW) MODEL AD-S 1260 CNC HYDRAULIC PRESS BRAKE W/DT-15 CONTROL

66 US TONS
4' 1" BENDING LENGTH
3' 5" BETWEEN COLUMNS
35.4" TABLE HEIGHT
4.1" TABLE WIDTH
6.2" STROKE
15.7" DAYLIGHT
13.77" THROAT DEPTH
473"/MINUTE Y-AXIS RAPID SPEED
24"/MINUTE Y-AXIS WORKING SPEED
260"/MINUTE Y-AXIS RETURN SPEED
0.0004" RAM REPEATABILITY
1,200"/MINUTE BACKGAUGE (X-AXIS) WORKING SPEED
25.5" BACKGAUGE (X-AXIS) WORKING DISTANCE
10 HP MOTOR

DT-15 CONTROL
- 2D GRAPHICAL TOUCH SCREEN PROGRAMMING MODE
- USB PERIPHERAL INTERFACING
- SENSOR BENDING AND CORRECTION INTERFACE

STANDARD FEATURES
- 4-AXIS Y1, Y2, X, MANUAL R
- FIESSLER LASER FINGER SAFETY - MANUAL HT ADJUST
- SERVO DRIVEN BACKGAUGE SYSTEM (X-AXIS)
LINEAR GUIDE AND BALLSCREW SYSTEM
- UNIVERSAL WEDGE STYLE PUNCH CLAMP
(FOR AMERICAN OR EUROPEAN STYLE PUNCHES)
- BOTTOM DIE RAIL ADAPTER
(FOR AMERICAN EUROPEAN STYLE DIES)
- PRECISION GROUND PUNCH/4-WAY DIE
TOP TOOL - P97.75.R08
BOTTOM TOOL - M.460R.85
- 2 BACKGAUGE FINGER BLOCKS
- LED WORK LIGHT ON TOP RAM

OPTIONS AVAILABLE - PRICE ON REQUEST
- 2-AXIS BACKGAUGE PACKAGE
X-AXIS = 25.59" R-AXIS = 9.8" X, R
- 4-AXIS BACKGAUGE PACKAGE
X-AXIS = 25.59" R-AXIS = 9.8" X, R, Z1, Z2
- SKY-22 CNC CONTROL
- DELEM DA-66S CNC CONTROL
- DBEND 3D OFFLINE SOFTWARE PACKAGE
CAD/CAM IMPORTING AND SIMULATION
- QUICK-RELEASE PUNCH CLAMPS
- ADDITIONAL BACKGAUGE FINGER BLOCKS

HYDRAULIC OIL REQUIRED
