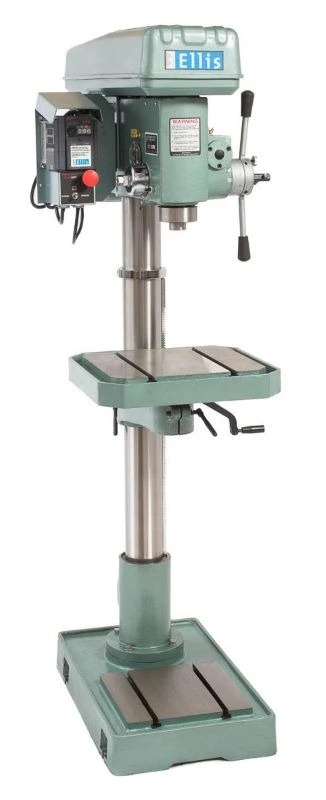

NEW ELLIS 9400

ELLIS (NEW) MODEL 9400 VARIABLE SPEED 20" DRILL
PRESS

0 - 1200 RPM SPINDLE SPEEDS
18-1/8" DRILLS TO CENTER
1-1/16" DRILLING CAPACITY-STEEL
1-1/4" DRILLING CAPACITY-CAST IRON
3/4" TAPPING CAPACITY
NO. 3 MORSE TAPER
3" QUILL DIAMETER
4" COLUMN DIAMETER
5-3/8" SPINDLE TRAVEL
27-1/4" SPINDLE TO TABLE
46-1/4" SPINDLE TO BASE
2 HP AC 1 PHASE MOTOR
110/220 VOLTAGE - CHOOSE

CONTROL BOX
- INFINITELY VARIABLE SPEED
- INSTANTANEOUS ELECTRONIC REVERSING
- FULL TORQUE AT LOW SPEEDS
- ALL SOLID STATE CIRCUITRY
- CONTINUOUS SPEED ADJUSTMENT WHILE OPERATING

PRODUCTION TYPE TABLE
- T-SLOTTED 15-7/8" X 17-7/8"
- 2 SLOTS FOR 1/2" T-BOLTS
- GROUND WORKING SURFACE
- COOLANT TROUGH

BASE
- T SLOTTED 16-3/8" X 26-5/8"
- 2 SLOTS FOR 1/2" T BOLTS
- GROUND WORKING SURFACE

FEATURES
- POWER DOWN FEED
- ADJUST SPEEDS WILL OPERATING IN THE MATERIAL
- HIGH TORQUE AT LOW RPM SPEEDS
- TAPPING HEAD IS NOT NEEDED
- MACHINE TAP GOES INTO BALL BEARING CHUCK
- CAN TAP EITHER LEFT OR RIGHT HANDED THREADS
- DRILL HEAD AND TABLE ROTATE 360 DEGREES
- SMOOTH OPERATING TABLE RAISER
- FULLY ENCLOSED SPINDLE
- QUILL LOCK AND DEPTH CONTROL
- SAME BALL BEARING CHUCK HOLDS BOTH DRILL TAP

SPEED CONTROL
- CONTINUOUS SPEED ADJUSTMENT WHILE IN OPERATION
- ELECTRONIC REVERSING FOR TAPPING
- 1 TURN ON KNOB FOR ADJUSTING SPEED (0 TO 1200)

OPTIONS INCLUDED
- DRILL PRESS CHUCK
- DRILL PRESS VISE
Power: 110 (Single)
