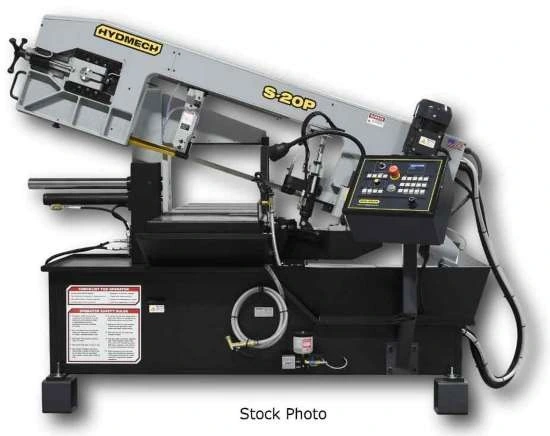

NEW HYDMECH S-20P

HYDMECH (NEW) MODEL S-20P SEMI-AUTOMATIC
PIVOT-STYLE BANDSAW

CAPACITY AT 90 DEGREES
- 13" X 18" RECTANGLE, 13" ROUND
CAPACITY AT 45 DEGREES
- 13" X 10.75" RECTANGLE, 12" ROUND
CAPACITY AT 30 DEGREES
- 13" X 7.75" RECTANGLE, 8.5" ROUND

1" X 14' 10" BLADE
3 HP, 3 PHASE BLADE DRIVE
480 VOLTS
45 - 330 SFM BLADE SPEED
6 GALLON COOLANT TANK
5,000 LBS WORK LOAD
31" TABLE HEIGHT

STANDARD MACHINE FEATURES
- EASY-SWING HEAVY-DUTY CAST IRON SAW HEAD
- FULL CAPACITY, FULL STROKING HYDRAULIC VISE
- TRUE DIRECT DRIVE BLADE - NO BELTS / PULLEYS
- ON-DEMAND HYDRAULICS SAVE ENERGY
- 36" MATERIAL IN FEED ROLLER TABLE
- 19" MATERIAL OUT FEED ROLLER TABLE
- CAST IRON BAND WHEELS
- SWING-AWAY SEMI-AUTOMATIC CONTROL PANEL
- REPLACABLE BLADE BRUSH
- ROBUST STEEL BASE
- EASY-TO-READ ANGLE SCALE WITH ANGLE LOCKING
- CAST IRON GUIDE ARMS
- ADJUSTABLE IDLER SIDE GUIDE ARM ON LINEAR RAIL
- GRAVITY FED SAWING HEAD WITH INFINITE DOWN FEED
ADJUSTMENT
- MECHANICAL BLADE TENSIONING WITH DRO
- PRE-SET REPLACEABLE CARBIDE GUIDE INSERTS
- SAFETY DOOR INTERLOCKS
- FLOOD COOLANT WITH WASH-DOWN HOSE
- LASER LIGHT
- WORK LIGHT
- VARIABLE VISE PRESSURE
Power: 480 (3-Phase)
