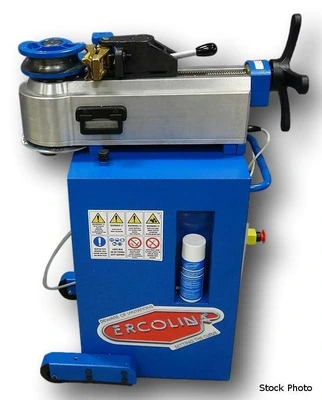

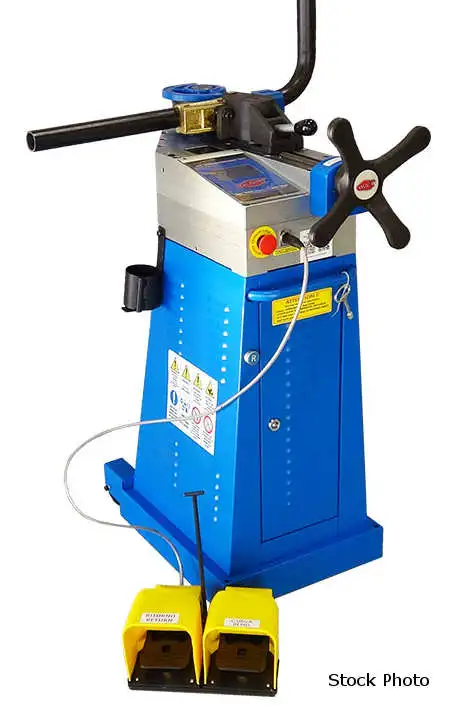

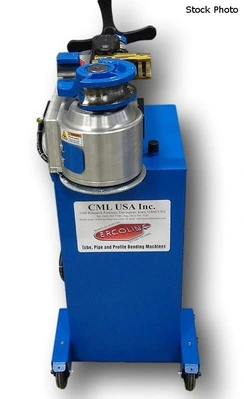

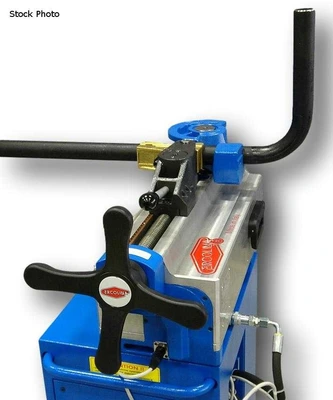

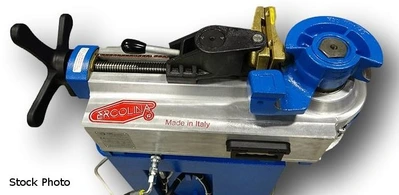

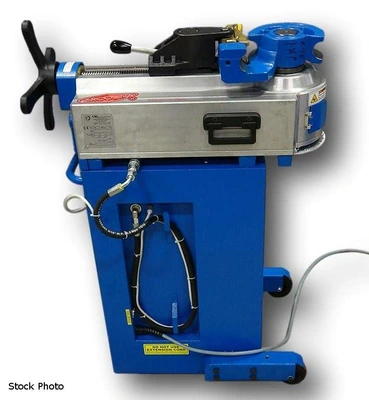

NEW ERCOLINA SB48 SUPER BENDER
Overview
Specifications
| Dimensions | 22-1/2 X 16-1/4 X 39-1/2 | 22-1/2 X 16-1/4 X 39-1/2 |
|---|---|---|
| Weight | 300 | 300 |
ERCOLINA (NEW) SB48 SUPER BENDER ROTARY DRAW BENDING MACHINE
CAPACITIES BASED ON MILD GRADE MATERIALS
1/4" TO 2" OUTSIDE DIAMETER
1-1/2" SCH 40 PIPE CAPACITY
2D TO 8-7/8" CENTERLINE RADIUS
0-210 DEGREE BENDS
2 RPM BENDING SPEED
- NC WITH TOUCHPAD
- 30 PROGRAM
- 9 BENDS PER PROGRAM
120 VOLTS, 1 PHASE
2 HP 50-60 HZ "BRUSHLESS" MOTOR
FEATURES
- IDEAL FOR PRODUCING CONSISTENT QUALITY BENDS IN PIPE
TUBE, SQUARES, SOLIDS AND OTHER PROFILES
- TOUCHPAD PROGRAMMING OF BEND ANGLE WITH SYSTEM
DIAGNOSTICS IN MULTIPLE LANGUAGES
- QUICK-CHANGE TOOLING SYSTEM WITH MULTIPLE RADII AVAILABLE
- DIGITAL DISPLAY OF BEND ANGLE
- BEND ANY ANGLE TO 180 DEGREE WITH INDEPENENT MATERIAL SPRINGBACK
COMPENSATION FOR EACH BEND
- FOOT PEDAL CONTROL FOR HANDS-FREE OPERATION
- SWING AWAY COUNTERBENDING DIE VISE FOR EASY MATERIAL HANDLING
- COUNTERBENDING DIE POSITION MONITORED ELECTRICALLY FOR
ACCURACY AND REPEATABILITY
- COMPACT DESIGN WITH BASE WHEELS AND LIFT HANDLE
- NO HYDRAULIC COMPONENTS
OPTIONS AVAILABLE - PRICE ON REQUEST
- ACCEPTS ERCOLINA'S A40-P TWO AXIS POSITIONING TABLE FOR MULTIPLE
AND SEQUENTIAL BENDS
Power: 120 (Single)
