NEW DURMA AD-S 60400

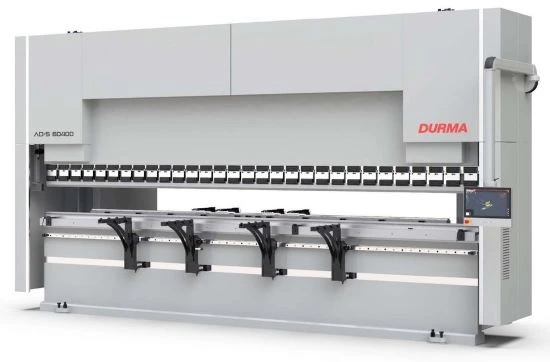

DURMA (NEW) MODEL AD-S 60400 CNC HYDRAULIC PRESS
BRAKE WITH DELEM DA66S CNC CONTROL

440 US TONS
19' 10" BENDING LENGTH
16' 8" BETWEEN COLUMNS
43.3" TABLE HEIGHT
6" TABLE WIDTH (NARROW TABLE)
14.3" STROKE
24.8" DAYLIGHT
16.1" THROAT DEPTH
284"/MINUTE Y-AXIS RAPID SPEED
19"/MINUTE Y-AXIS WORKING SPEED
237"/MINUTE Y-AXIS RETURN SPEED
0.0004" RAM REPEATABILITY
827"/MINUTE BACKGAUGE (X-AXIS) WORKING SPEED
29.5" BACKGAUGE (X-AXIS) WORKING DISTANCE
709"/MINUTE BACKGAUGE (R-0AXIS) WORKING SPEED
9.8" BACKGAUGE (R-AXIS) WORKING DISTANCE
49 HP MOTOR

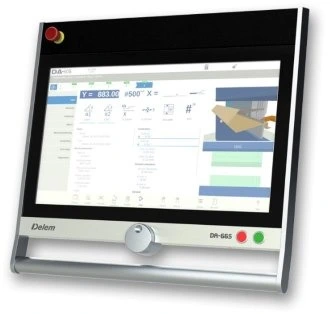

DELEM DA-66S CNC CONTROL
- 2D GRAPHICAL TOUCH SCREEN PROGRAMMING MODE
- 3D VISUALIZATION IN SIMULATION PRODUCTION
- 24" HIGH RESOLUTION COLOR TFT
- DELEM MODUSYS COMPATIBILITY
- USB PERIPHERAL INTERFACING
- USER SPECIFIC APPLICATION SUPPORT
- SENSOR BENDING AND CORRECTION INTERFACE
- PROFILE-S2D OFFLINE SOFTWARE

STANDARD FEATURES
- Y1-AXIS, Y2-AXIS, X-AXIS, R-AXIS
- FIESSLER LC5 LASER FINGER SAFETY - MANUAL HT ADJUST
- SERVO DRIVEN BACKGAUGE SYSTEM (X-AXIS)
LINEAR GUIDE AND BALLSCREW DESIGN
- UNIVERSAL WEDGE STYLE PUNCH CLAMP
(FOR AMERICAN OR EUROPEAN STYLE PUNCHES)
- PRECISION GROUND PUNCH/4-WAY DIE
TOP TOOL - ROLLERI P135.75.R08
BOTTOM TOOL - ROLLERI M.460R.85
- 2 SLIDING FRONT SUPPORT ARMS WITH T-SLOT,
TILTING STOP AND FULL LENGTH LINEAR GUIDE
- 2 BACKGAUGE FINGER BLOCKS
- CNC CONTROLLED MOTORIZED CROWNING
- LED WORK LIGHT ON TOP RAM

OPTIONS AVAILABLE - PRICE ON REQUEST
- DURMA SKY22 CNC CONTROL
- DELEM DA69S CNC CONTROL + T3D OFFLINE SOFTWARE
- 4-AXIS BACKGAUGE - X=29.52" X, R, Z1, Z2
- 4+1-AXIS BACKGAUGE - X=29.52" X, R, Z1, Z2 DELTA X +/- 4.9"
- 6-AXIS BACKGAUGE - X=29.52" X1X2, R1R2, Z1Z2
- 2-AXIS BACKGAUGE - X=39.37" R=9.8" X, R
- 4-AXIS BACKGAUGE - X=39.37" X, R, Z1, Z2
- 11.8" TABLE WIDTH (WIDE TABLE)
- AP3/AP4 SHEET FOLLOWERS (550LB CAPACITY EA)
- PARKING AREA FOR SHEET FOLLOWERS (1 METER)
- HYDRAULIC TOP BOTTOM CLAMPING
- METALIX MBEND 3D OFFLINE SOFTWARE PACKAGE
CAD/CAM IMPORTING AND SIMULATION
- ADDITIONAL BACKGAUGE FINGER BLOCKS
- AIR CONDITIONING FOR ELECTRICAL CABINET
- CENTRAL LUBRICATION (MOTORIZED OR MANUAL)
- ROBOT PREPARATION
- DURMA ANGLE MEASUREMENT SYSTEM (LASER SCANNER)
- OIL COOLANT SYSTEM
- OIL HEATER
- LASER BENDING LINE

HYDRAULIC OIL REQUIRED
