NEW AKYAPAK APK 180

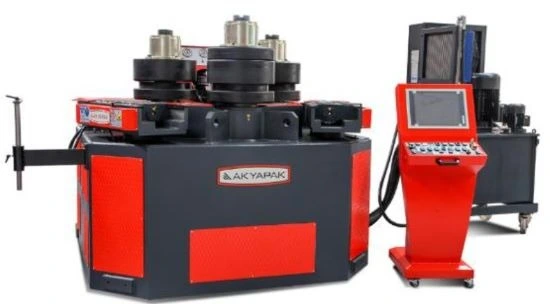

AKYAPAK (NEW) MODEL APK 180 ANGLE BENDING ROLL

12.8 IN³ MAX SECTION MODULUS
18.11" ROLL DIAMETER
4.72" TOP SHAFT DIAMETER
6.3 6.3 BOTTOM SHAFTS DIAMETER
23 FPM BENDING SPEED
20 HP

FEATURES
- WELDED ALL-STEEL (ST-52) CONSTRUCTION BODY
- VARIABLE SPEED OF ROTATION
- SPECIAL STEEL GEARS
- SHAFTS MADES OF SPECIAL STEEL, HARDENED AND GROUND
- MANUAL LUBRICATION
- HYDRAULIC GUIDE ROLLS ADJUSTABLE IN 3 DIRECTIONS
- BOTTOM ROLLS HYDARULICALLY MOVEABLE UP AND DOWN
- DUAL UP AND DOWN SPEED OF BOTTOM ROLLS
- DIGITAL DISPLAY FOR BOTTOM ROLLS
- SEPERATE AND MOVEABLE CONTROL PANEL
- HORIZONTAL WORKING POSITION
- ROLLS DRIVEN BY HYDRAULIC MOTOR AND REDUCER; THE BOTTOM ROLLS THROUGH
GEAR SYSTEM AND THE TOP ROLL THROUGH CHAIN TRANSMISSION

OPTIONS AVAILABLE - PRICE ON REQUEST
- AK300 NC - UP TO 7 AXES
- AK400 CNC CONTROL
- HYDRAULIC PULLING SYSTEM
ARM GUIDE
ARM GUIDE ROLLS
