| Dimensions | 78 X 58 X 80 | 78 X 58 X 80 |
| Weight | 10,405 | 10,405 |

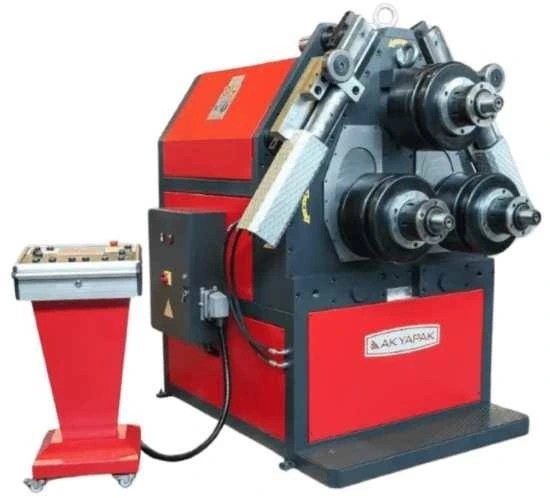

AKYAPAK (NEW) MODEL APK 121 ANGLE BENDING ROLL
4.3 -7.3 IN³ MAX SECTION MODULUS
15.35" ROLL DIAMETER
4.72"/4.72" TOP AND BOTTOM SHAFT
13 FPM BENDING SPEED
20 HP
FEATURES
- ONE SET STANDARD ROLLS
- ALL-STEEL (ST-52) CONSTRUCTION BODY
- SHAFTS MADES OF SPECIAL STEEL, HARDENED AND GROUND
- MANUAL LUBRICATION
- HYDRAULIC GUIDE ROLLS ADJUSTABLE IN 2 DIRECTIONS
- BOTTOM ROLLS HYDARULICALLY MOVEABLE UP AND DOWN
- DIGITAL DISPLAY FOR BOTTOM ROLLS
- SEPERATE AND MOVEABLE CONTROL PANEL
- HORIZONTAL AND VERTICAL WORKING POSITION
- ROLLS DRIVEN BY HYDRAULIC MOTOR AND GEAR SYSTEM
OPTIONS AVAILABLE - PRICE ON REQUEST
- AK300 NC - UP TO 7 AXES
- AK400 CNC CONTROL
- HYDRAULIC PULLING SYSTEM
ARM GUIDE
ARM GUIDE ROLLS
- DUAL SPEED
- VARIABLE ROTATION SPEED
