NEW DURMA VS 3006

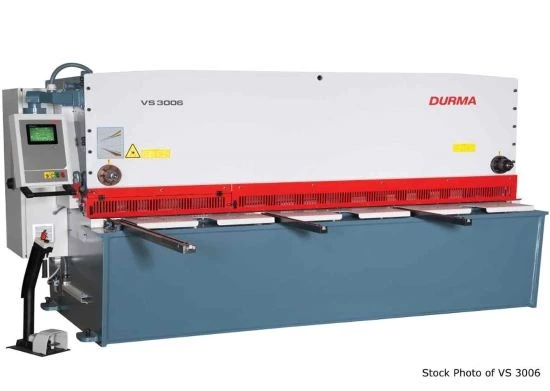

DURMA (NEW) MODEL VS 3006 VARIABLE RAKE CNC SHEAR

10' LENGTH (121")
0.236" CAPACITY - MILD STEEL
0.157" CAPACITY - STAINLESS STEEL
12-20 STROKES PER MINUTE
0 DEGREE 30' - 2 DEGREE RAKE ADJUSTMENT
16 HOLDDOWNS
8,000 TO 40,000 LB HOLDDOWN FORCE
39" BACK GAUGE
14" THROAT
3 FRONT ARMS
129" X 19" X 32" TABLE
33 GALLON OIL CAPACITY
15 HP

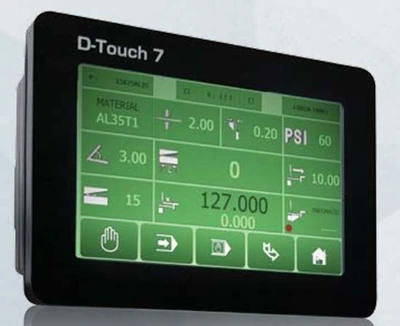

D-TOUCH 7 CONTROL UNIT
- COLOR TOUCH SCREEN
- USB INPUT
- WINDOWS CE UNLIMITED PROGRAMS AND STEPS
- EASY PROGRAMMING

STANDARD FEATURES
- HEAVY-DUTY STEEL CONSTRUCTION
- STRESS-RELIEVED FRAME
- AUTOMATICALLY ADJUSTED RAKE ANGLE BY CNC
- ADJUSTED CUTTING LENGTH BY CNC
- BALL INTEGRATED FRONT TABLES

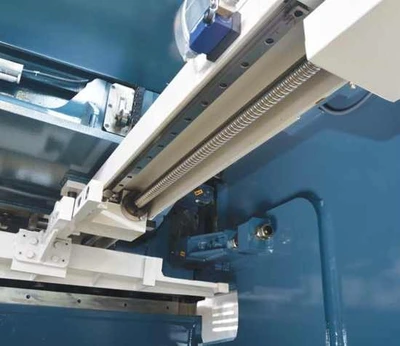

- 40" BALL SCREW BACK GAUGE
- 40" FLIP-UP FINGER GUARDS
- 60" SQUARING ARM WITH SCALE T-SLOT
- 40" SUPPORT ARMS T-SLOT AND TILTING STOP
- ILLUMINATION AND SHADOW LINE
- AUTOMATICALLY PRESSURE-ADJUSTED SOLID HOLDDOWNS
- 4-SIDED TOP AND BOTTOM BLADES

OPTIONS AVAILABLE - PRICE ON REQUEST
- LASER CUTTING LINE
- LIGHT CURTAINS FOR FINGER PROTECTION
- PNEUMATIC SHEET SUPPORTS
- SHEET SUPPORT W/BELT CONVEYOR SCRAP CONTAINER
- STACKER AND ALIGNMENT SYSTEM
- CNC FRONT FEEDING SYSTEM
- HYDRAULIC ANTI-TWISTING
- SPECIAL THROAT DEPTH
- 50" BACK GAUGE
- X1, X2 AXIS
- HYDRAULIC SWING-UP BACK GAUGE
- OIL COOLANT
- OIL HEATER
- CENTRAL LUBRICATION - MANUAL
- CENTRAL LUBRICATION - MOTORIZED
- 0 TO 180 DEGREES ADJUSTABLE ANGLE STOP
- ADDITIONAL SUPPORT ARMS
- SPECIAL BLADES
- CONTROL PANEL ON OPPOSITE POSITION
- TEMPERATURE MEASURING
