NEW HYDMECH H-320A

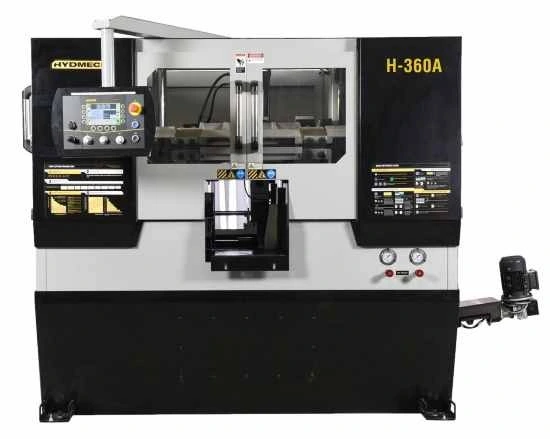

HYDMECH (NEW) MODEL H-360A AUTOMATIC DUAL
POST HORIZONTAL BAND SAW

CAPACITY @ 90 DEGREES
- 14" X 14" RECTANGLE
- 14" SQUARE
- 14" ROUND (DIAMETER)

1-1/4" X 14' 9" BLADE
6 HP BLADE DRIVE
480 VOLTS, 3 PHASE
49 - 380 SFM BLADE SPEED
0-23" AUTOMATIC MULTI-INDEXING
1.8" REMNANT LENGTH W/0 BUNDLING
- 10" WITH BUNDLING
53 GALLON COOLANT TANK CAPACITY
34" TABLE HEIGHT

STANDARD MACHINE FEATURES
- HEAVY-DUTY CAST IRON SAW HEAD
- SPLIT FRONT VISE
- SHUTTLE W/AUTO MULT-INDEXING TO 23" IN 1 STROKE
- BALL SCREW AND STEPPER MOTOR
- ON-DEMAND HYDRAULICS SAVE ENERGY
- STEEL GUIDE ARMS MOUNTED ON LINEAR RAILS
- AUTO ADJUSTABLE GUIDE ARM FOR PROPER SPACING
- TRUE DIRECT DRIVE- NO BELTS OR PULLEYS
- REVERSIBLE CHIP AUGER
- FULL-CAPACITY, FULL-STROKING HYDRAULIC VISES
- HYDRAULIC POSITIVE DOWN FEED
- BLADE CHAMBER SEPARATES MATERIAL FROM CUT PART
- CAST IRON BAND WHEELS
- AUTOMATIC PLC TOUCH SCREEN CONTROL
- PROGRAM UP TO 100 JOBS WITH 20 IN QUEUE
- REPLACEABLE BLADE BRUSH
- ROBUST STEEL BASE
- EASY-ACCESS ELECTRICAL PANEL HYDRAULICS
- BLADE-BREAKAGE SWITCH
- BLADE-DEVIATION MONITOR
- SAW-IN-A-BOX STYLE DESIGN FOR SAFETY
- OUT-OF-STOCK SWITCH
- MECHANICAL BAND TENSIONING WITH DRO
- REPLACEABLE CARBIDE GUIDE INSERTS
- SAFETY DOOR INTERLOCKS - RFID TECHNOLOGY
- FLOOD COOLANT WITH WASH-DOWN HOSE
- LASER LIGHT
- LED WORK LIGHT
- VARIABLE VISE PRESSURE

OPTIONS AVAILABLE - PRICE ON REQUEST
- FULL CAPACITY HYDRAULIC OVERHEAD BUNDLING
- MIST LUBRICATION SYSTEM
- POWER TRANSFORMER FOR 208 OR 240 VOLT
- VERTICAL ROLLERS
- IDLER CONVEYORS
- POWERED CONVEYORS
- POWER TRANSFORMER FOR 208 OR 240 VOLTS

- THIS SAW REQUIRES AIR RIDE TRAILER FOR TRANSPORT
Power: 480 (3-Phase)
