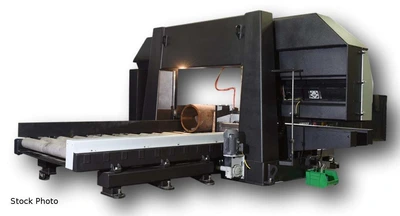

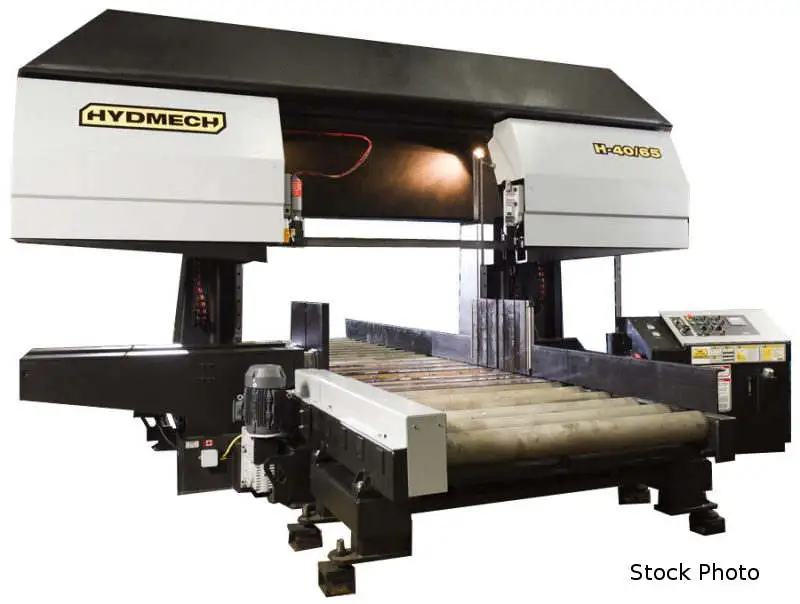

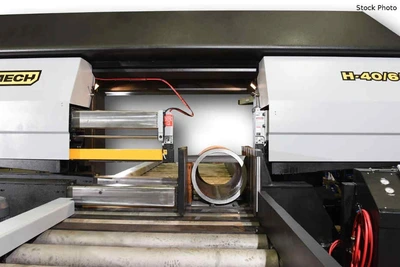

NEW HYDMECH H-40/65

HYDMECH (NEW) MODEL H-40/65 DUAL POST HORIZONTAL
BANDSAW

90 DEGREE CAPACITY
- 40" X 65" RECTANGLE
- 40" ROUND (DIAMETER)
- 40" SQUARE

3" X 40' 4" BLADE
480 VOLTS, 3 PHASE
45 - 225 SFM BLADE SPEED
HYDRAULIC VISE CONTROL
17 GALLON HYDRAULIC TANK
27 GALLON COOLANT TANK
27" TABLE HEIGHT

STANDARD MACHINE FEATURES
- ONE PIECE DESIGN - NO ALIGNMENT NECESSARY
- 8' POWERED ROLLERS BUILT INTO MACHINE BED
- CAST IRON GUIDE ARMS
- IDLER SIDE GUIDE ARM IS MECHANICALLY CONNECTED
TO THE FRONT VISE MOVEABLE JAW
- 20 HP VFD
- TRUE DIRECT BLADE DRIVE - NO BELTS OR PULLEYS
- FULL CAPACITY HYDRAULIC VISES
- CAST IRON BAND WHEELS

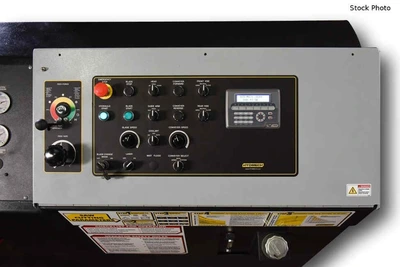

- USER-FRIENDLY OPERATOR CONTROL
- REPLACEABLE BLADE BRUSH
- ROBUST STEEL BASE
- AUTOMATIC CHIP REMOVAL AUGUR
- EASY-ACCESS ELECTRICAL PANEL AND HYDRALUICS
- BLADE BREAKAGE SWITCH
- HYDRAULIC BAND TENSIONING WITH DIGITAL READOUT
- 5 HP HYDRAULIC PUMP PROVIDES SYSTEM PRESSURE
- REPLACEABLE CARBIDE GUIDE INSERTS
- HARDENED, REPLACEABLE WEAR PLATES
- SAFETY DOOR INTERLOCKS
- FLOOD COOLANT WITH WASH DOWN HOSE
- WORK LIGHT
- LASER LIGHT

OPTIONS AVAILABLE - PRICE ON REQUEST
- OUTBOARD VISE
- 5' IN FEED / OUT FEED POWERED CONVEYOR
- 10' IN FEED / OUT FEED POWERED CONVEYOR
- POWER TRANSFORMER FOR 208 OR 240 VOLTS
Power: 480 (3-Phase)
