NEW SUMMIT 14X40D VARIABLE SPEED

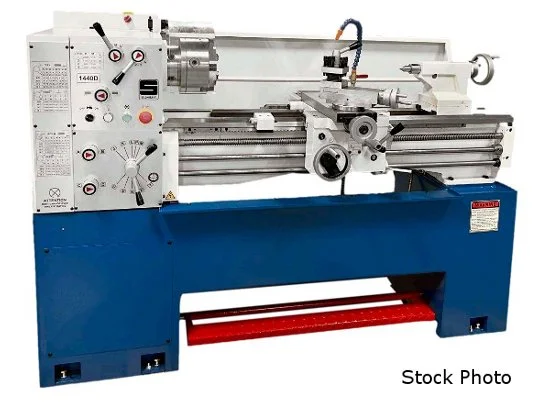

SUMMIT (NEW) MODEL 14 X 40D VARIABLE SPEED ENGINE LATHE

14" SWING OVER BED
8.75" SWING OVER CROSS SLIDE
20.75" SWING OVER GAP

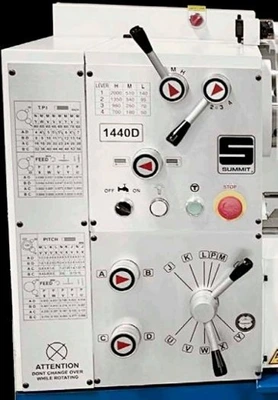

HEADSTOCK
- 2" HOLE THROUGH SPINDLE
- (12) SPINDLE SPEEDS - 50-2000 RPM RANGE
- #3 MT HEADSTOCK CENTER BUSHING
- D1-5 CAMLOCK SPINDLE NOSE

QUICK CHANGE GEARBOX
- (32) THREADS PER INCH 4 - 56
- (30) METRIC THREADS 0.4 - 7
- (16) LONGITUDINAL FEEDS 0.0026 - 0.0368 IPR
- (16) CROSS FEEDS 0.0008 - 0.0122 IPR

CARRIAGE AND APRON
- 7.5" CROSS SLIDE TRAVEL
- 3.94" COMPOUND REST TRAVEL

STEADY REST
- 1/2" - 4" BRASS TIPS

BED
- 9" BED WIDTH
- 42 - 48 ROCKWELL C BED HARDNESS

TAILSTOCK
- 3.94" SPINDLE BARREL TRAVEL
- 1.562" SPINDLE BARREL DIAMETER
- #3MT CENTER TAPER

MOTORS
- 5 HP MAIN DRIVE, 220/440 VOLT, 3 PHASE
- 1/8 HP COOLANT PUMP

INCLUDED ACCESSORIES
- STEADY REST
- FOLLOW REST
- THREAD DIAL
- 4-WAY TOOL POST
- 8" 3 JAW CHUCK
- 8" 4 JAW CHUCK
- CHUCK GUARD
- COOLANT SYSTEM
- SINGLE CARRIAGE STOP
- WORK LIGHT
- FULL LENGTH SPLASH GUARD
- FOOT BRAKE
- SERVICE WRENCHES AND SPANNERS

STANDARD FEATURES
- BIG 2" THRU HOLE
- INCH AND METRIC THREADS
- HARDENED AND PRECISION GROUND BEDWAYS
- FORCED LUBRICATION TO THE HEADSTOCK, CARRIAGE
BEDWAYS
- REMOVABLE GAP
- PRECISION (3) BEARING SPINDLE
- T-SLOTTED COMPOUND
- CROSSFEED AND THREADING SAFETY INTERLOCK

OPTIONS AVAILABLE - PRICING ON REQUEST
- TAPER ATTACHMENT INSTALLED
- ALORIS QUICK CHANGE TOOL-POST
W/HOLDERS (2#1, 2#2)
- 8" SET-TRU STEEL BODY 3-JAW PRECISION CHUCK
WITH TOP 2- PIECE JAWS
- NEWALL 2-AXIS DIGITAL READOUT INSTALLED
- HAND WHEEL OPERATED 5C COLLET CLOSER INSTALLED
Power: 220/440 (3-Phase)
