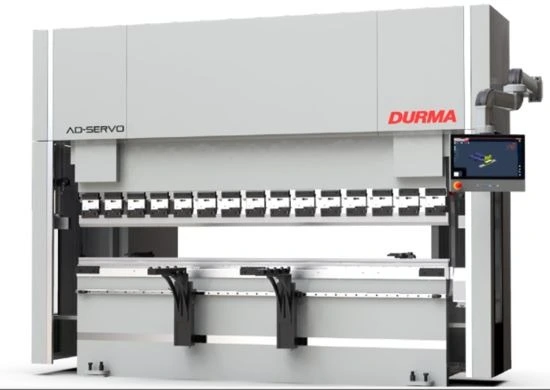

NEW DURMA AD-SERVO 30175

DURMA (NEW) MODEL AD-SERVO 30175 CNC PRECISION
PRESS BRAKE

192 TONS BENDING FORCE
10' BENDING LENGTH
8' 6" DISTANCE BETWEEN COLUMNS
10.4" STROKE
20.8" DAYLIGHT
17.71" THROAT
35.4" TABLE HEIGHT
4.1" TABLE WIDTH
438"/MINUTE Y-AXIS APPROACH SPEED
29"/MINUTE Y-AXIS BENDING SPEED
438"/MINUTE Y-AXIS RETURN SPEED
827"/MINUTE BACKGAUGE (X-AXIS) WORKING SPEED
TWO 5 HP MOTORS

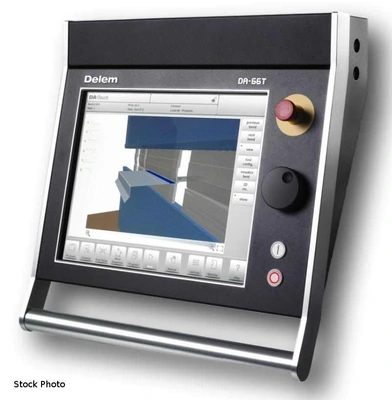

DELEM DA-66S CNC CONTROL
- 2D GRAPHICAL TOUCH SCREEN PROGRAMMING MODE
- 3D VISUALIZATION IN SIMULATION PRODUCTION
- 24" HIGH RESOLUTION COLOR TFT
- FULL WINDOWS APPLICATION SUITE
- DELEM MODUSYS COMPATIBILITY
- USB PERIPHERAL INTERFACING
- USER-SPECIFIC APPLICATION SUPPORT
- SENSOR BENDING CORRECTION INTERFACE
- PROFILE-S2D OFFLINE SOFTWARE

STANDARD EQUIPMENT
- 4 AXES CNC Y1, Y2, X AND R
- FIESSLER LC5 LASER FINGER SAFETY- MAN HT ADJ
- SERVO DRIVEN BACKGAUGE SYSTEM (X-AXIS)
LINEAR GUIDE AND BALLSCREW DESIGN
- UNIVERSAL WEDGE STYLE PUNCH CLAMP
(FOR AMERICAN OR EUROPEAN STYLE PUNCHES)
- BOTTOM DIE RAIL ADAPTER
(FOR AMERICAN EUROPEAN STYLE DIES)
- PRECISION HARDENED GROUND PUNCH/4-WAY DIE
TOP TOOL - ROLLERI P135.75.R08
BOTTOM TOOL - ROLLERI M.460R.85
- 2 SLIDING FRONT SUPPORT ARMS WITH T-SLOT,
TILTING STOP AND FULL LENGTH LINEAR GUIDE
- CNC CONTROLLED MOTORIZED CROWNING

OPTIONS AVAILABLE - PRICE ON REQUEST
- DELEM DA-69S CNC CONTROL
- DBEND 3D OFFLINE SOFTWARE PACKAGE
CAD/CAM IMPORTING AND SIMULATION
- FIESSLER AKAS-3P MOTORIZED HT ADJ LASER SAFETY
- 2-AXIS BACKGAUGE - X=29.5" X, R
- 2-AXIS BACKGAUGE - X=39.3" X, R

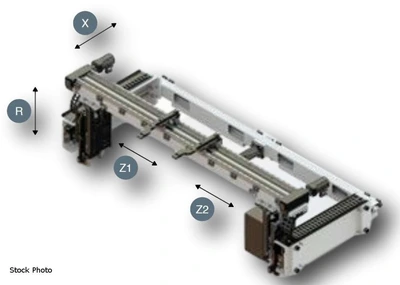

- 4-AXIS BACKGAUGE - X=25.5" X, R, Z1, Z2
- 4-AXIS BACKGAUGE - X=39.3" X, R, Z1, Z2
- 4 + 1 AXIS BACKGAUGE - X = 25.5"
X, R, Z1, Z2, DELTA X +/- 4.9"
- 6-AXIS BACKGAUGE - X=29.5" X1X2, R1R2, Z1Z2
- 14.3" STROKE
- 29.5" THROAT DEPTH
- AP3-AP4 SHEET FOLLOWERS + PARKING AREA
- LASER ANGLE MEASUREMENT SYSTEM
ADJUSTS PARAMETERS THROUGH BEND CYCLE
EXACT BENDING WITHOUT OPERATOR'S INTERVENTION
PROVIDES THE TARGET ANGLE WITH A SINGLE BEND
PREVENTS MATERIAL AND TIME LOSS
- QUICK-RELEASE CLAMPING SYSTEM
- HYDRAULIC PNEUMATIC TOOL CLAMPING SYSTEMS
- PNEUMATIC MOTOR BOT TOOL POSITIONING SYSTEMS
- CENTRAL LUBRICATION SYSTEMS (MANUAL/MOTORIZED)
- AIR CONDITIONING FOR ELECTRICAL CABINET
- OIL COOLER/OIL HEATER
- SECOND FOOT PEDAL
- LASER BENDING LINE
- SLIDING SIDE DOORS
- ADDITIONAL BACK GAUGE FINGERS AND
SLIDING FRONT SUPPORT ARMS
- PARKING AREA FOR SUPPORT ARMS
- TANDEM PREPARATION
- SLIDING SIDE DOORS
- SHORTER TOP TOOL - ROLLERI P97.75.R08
- CONTROL PANEL ON OPPOSITE SIDE
- 29.5" THROAT

HYDRAULIC OIL ADDITIONAL
