| Dimensions | 63 X 54 X 74 | 63 X 54 X 74 |
| Weight | 3,285 | 3,285 |

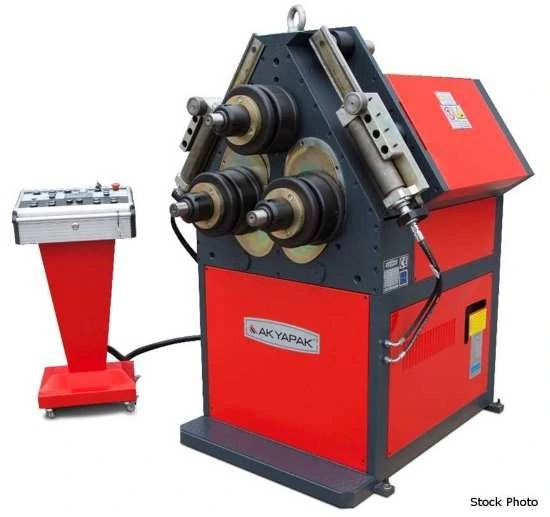

AKYAPAK (NEW) MODEL APK 81 ANGLE BENDING ROLL
9.65" ROLL DIAMETER
3.15"/3.15" SHAFT
13 FPM BENDING SPEED
6.8 HP
FEATURES
- ONE SET STANDARD ROLLS
- ALL-STEEL (ST-52) CONSTRUCTION BODY
- SHAFTS MADES OF SPECIAL STEEL, HARDENED AND GROUND
- MANUAL LUBRICATION
- GUIDE ROLLS ADJUSTABLE MANUALLY IN ONE DIRECTION
- BOTTOM ROLLS HYDRAULICALLY MOVEABLE UP AND DOWN
- DIGITAL DISPLAY FOR BOTTOM ROLL
- SEPERATE AND MOVEABLE CONTROL PANEL
- HORIZONTAL AND VERTICAL WORKING POSITION
- ROLLS DRIVEN BY HYDRAULIC MOTOR AND GEAR SYSTEM
OPTIONS AVAILABLE - PRICE ON REQUEST
- AK400 7-AXIS CNC CONTROL
- AK300 NC - UP TO 7 AXES
- HYDRAULIC GUIDE ROLLS
- DIGITAL DISPLAY FOR HYDRAULIC GUIDE ROLLS
- DUAL SPEED
- VARIABLE ROTATION SPEED
