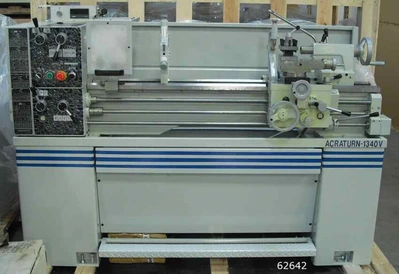

NEW ACRA 1340BV

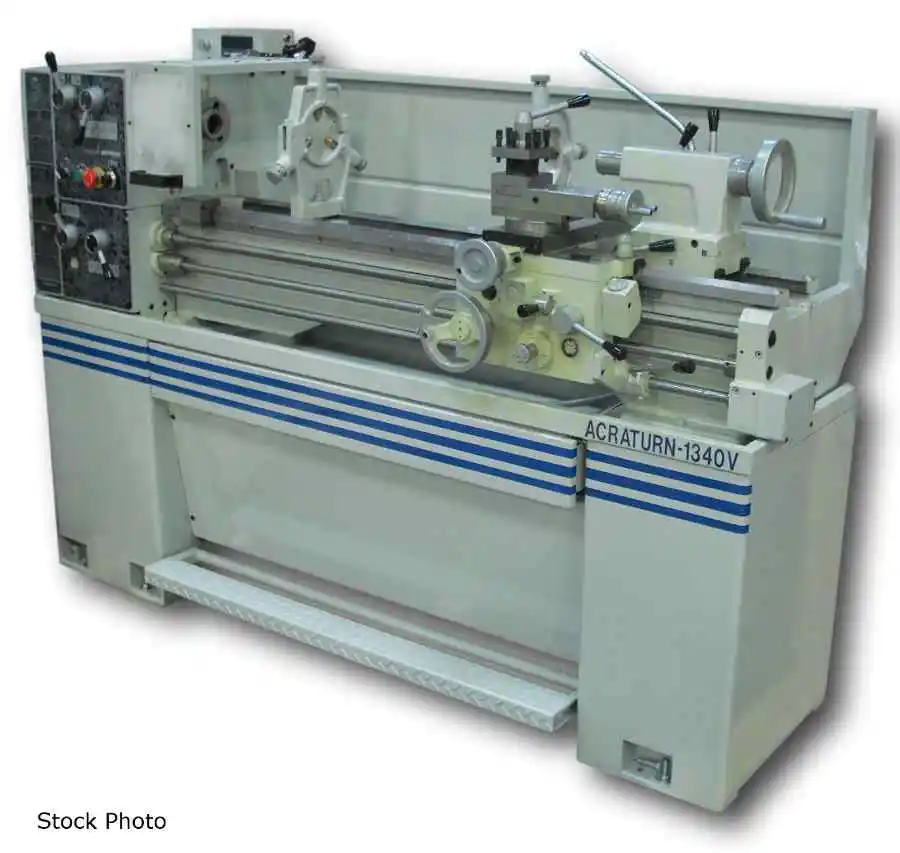

ACRA (NEW) MODEL 1340BV PRECISION ENGINE LATHE

13" SWING OVER BED
8-1/4" SWING OVER CROSS SLIDE
6-1/2" CENTER HEIGHT
40" BETWEEN CENTERS
3 HP, 230 VOLTS, 1 OR 3 PHASE MAIN MOTOR
1/8 HP COOLANT PUMP MOTOR

BED
7-1/2" BEDWAYS WIDTH
64" BED GAP LENGTH
18-1/2" SWING IN GAP
9-1/2" GAP LENGTH
6" WIDE IN FRONT OF FACE PLATE

SPINDLE
1-9/16" SPINDLE BORE
D1-4 SPINDLE NOSE
MT 5 SPINDLE BORE
VARIABLE SPINDLE SPEEDS, 40-2000 RPM

TOOL SLIDE
6-3/4" CROSS SLIDE TRAVEL
3-1/2" TOP SLIDE TRAVEL
1/2" CUTTING TOOL (MAXIMUM)

TAILSTOCK
4" TAILSTOCK BARREL TRAVEL
MT 3 TAILSTOCK BARREL TAPER
1-9/16" BARREL DIAMETER

THREADS
1" LEADSCREW DIAMETER, 0.157" PITCH
8 INCH THREADS, 3-24 TPI
21 METRIC PITCHES, 0.50-10 MM

FEEDS
3/4" FEED ROD DIAMETER
21 FEED CHANGES
0.040-0.800 MM/REV LONGITUDINAL FEEDS
0.020-0.400 MM/REV CROSS FEEDS

EQUIPPED WITH
- 6" 3-JAW CHUCK
- 8" 4-JAW CHUCK
- STEADY/FOLLOW REST
- COOLANT SYSTEM
- 4-WAY TOOL HOLDER
- FULL LENGTH SPLASH GUARD
- MICRO BED STOP
- HALOGEN LIGHT
- CHUCK GUARD

OPTIONS AVAILABLE - PRICE ON REQUEST
- FACE PLATE
- TAPER ATTACHMENT
- LEVER TYPE 5C COLLET CLOSER JFK
- DIGITAL READ OUT
- ALORIS TOOL POST SET (BXA) 5 PIECE
- QUICK-CHANGE TOOL HOLDER
- LIVE CENTER MT3
- EVS 460 VOLT
