| Dimensions | 85 X 80 X 88 | 85 X 80 X 88 |
| Weight | 3,500 | 3,500 |

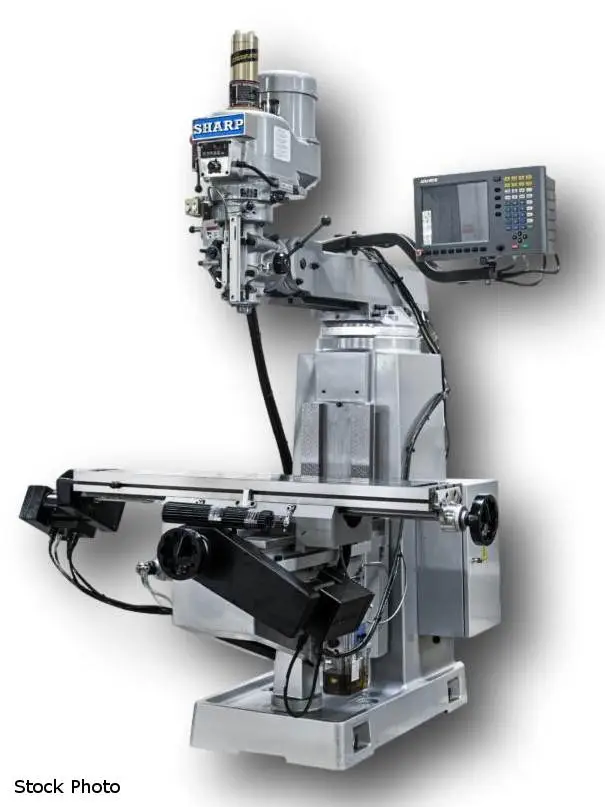

SHARP (NEW) MODEL TMV-MP-2 VERTICAL KNEE MILL
MILL PACKAGE

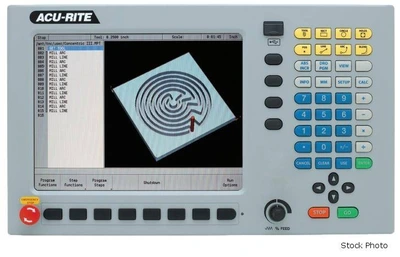

- 2-AXES ACU-RITE CNC MILLPWR G-2 CONTROL
- 3-AXES READOUT
TABLE
- 54" X 10"
- (3) 5/8" T-SLOTS
CAPACITY
- 31" TABLE TRAVEL (X AXIS)
- 15.5" SADDLE TRAVEL (Y AXIS)
- 18.5" RAM TRAVEL
- 5" QUILL TRAVEL (Z AXIS)
- 15.3" KNEE TRAVEL
- 9.8" TO 28.3" SPINDLE TO COLUMN
- 5.375" - 16.9" SPINDLE NOSE TO TABLE
SPINDLE
- R-8 TAPER
- 60 - 4,500 RPM VARIABLE SPEED DRIVE
- 0.0015, 0.003 AND 0.005 IPR QUILL FEED
- 0.0002" TIR ACCURACY
- 90 DEGREE HEAD TILT LEFT TO RIGHT
- 45 DEGREE HEAD TILT UP AND DOWN
- 3 HP , 220/440 VOLT, 3 PHASE, 60 H MOTOR
STANDARD EQUIPMENT
- MANUAL DRAW BAR
- HARDENED AND GROUND BOX WAYS
- FRONT AND REAR WAY COVERS
- AUTOMATIC LUBE SYSTEM
- 2-AXES CNC CONTROL (X/Y)
- TOOL KIT
OPTIONS AVAILABLE - PRICE ON REQUEST
- ACU-RITE ELECTRICAL EDGE FINDER
- ACU-RITE DRO SYSTEM ON KNEE
- SHARP POWER KNEEL FEED
- 6" KURT VISE WITH SWIVEL BASE
- DRILL CHUCK AND DRILL ARBOR
- COOLANT SYSTEM WITH CHIP PAN AT BASE
- MAXI-TORQUE RITE POWER DRAW BAR
- R-8 COLLECT (SET OF 11)
- CLAMPING KIT (52 PIECE)
- HALOGEN WORK LIGHT
- 6" RISER BLOCK
- 440 VOLT TRANSFORMER
Power: 220/440 (3-Phase)
