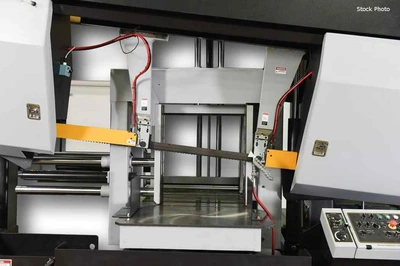

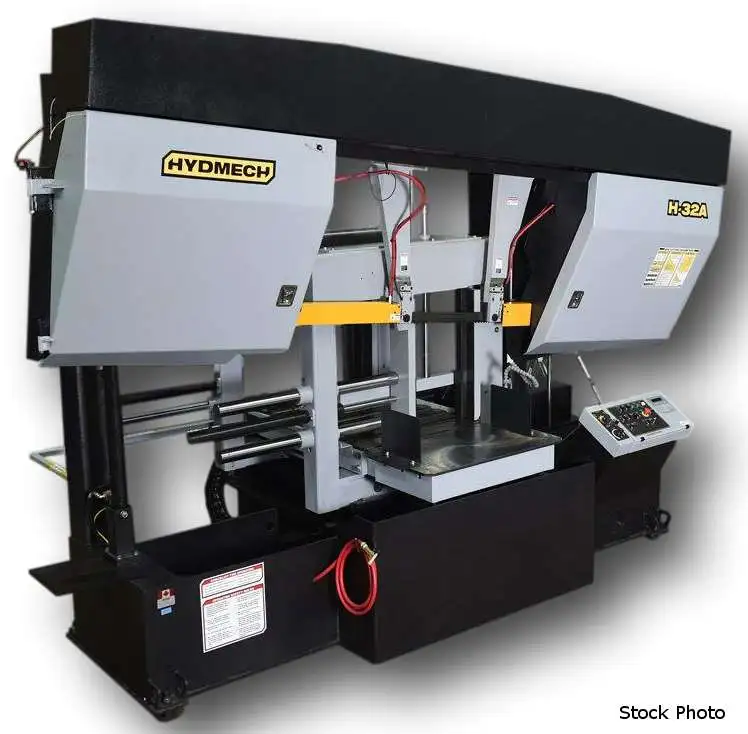

NEW HYDMECH H-32A

HYDMECH (NEW) MODEL H-32A AUTOMATIC DUAL
POST HORIZONTAL BAND SAW

CAPACITY AT 90 DEGREES
- 32" X 32" SQUARE
- 32" ROUND (DIAMETER)

2-5/8" X 30' 4" BLADE
20 HP BLADE DRIVE
480 VOLTS, 3 PHASE
40 - 300 SFM BLADE SPEED
0-34" AUTOMATIC MULTI-INDEXING
9.5 GALLON HYDRAULIC TANK
40 GALLON COOLANT TANK
31" TABLE HEIGHT (37" WITH CANTED HEAD)

STANDARD MACHINE FEATURES
- 1-PIECE DESIGN (NO ALIGNMENT NECESSARY)

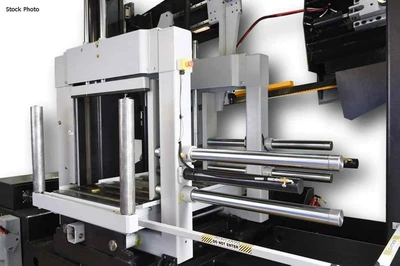

- SPLIT FRONT VISE OR RETRACTABLE DATUM VISE
- SHUTTLE W/AUTO MULT-INDEXING TO 34" IN 1 STROKE
AUTOMATIC KERF COMPENSATION

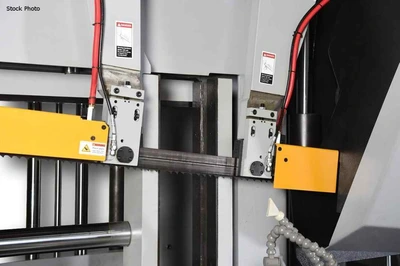

- STEEL GUIDE ARMS
- AUTOMATIC CHIP REMOVAL AUGER
- TRUE DIRECT DRIVE - NO BELTS OR PULLEYS
- FULL-CAPACITY, FULL-STROKING HYDRAULIC VISES
- HYDRAULIC POSITIVE DOWN FEED

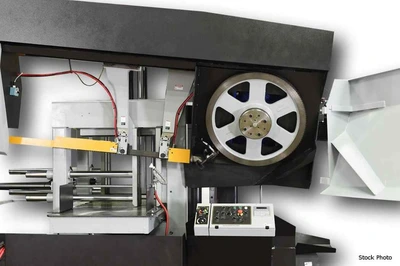

- CAST IRON BAND WHEELS
- HIGH RESOLUTION FEED RATE VALVE
CONSTANT FEED RATE WHEN CUTTING SPECIAL ALLOYS
- BLADE CHAMBER SEPARATES MATERIAL CUT PART

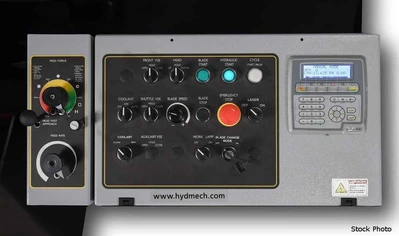

- 7" MITSUBISHI FX5U PLC COLOR TOUCH SCREEN CTRL
INTERACTIVE WITH MESSAGES FOR OPERATOR
PROGRAMMABLE HEAD UP POSITION
BUILT-IN DIAGNOSTICS
SIMPLE SOFTWARE UPDATES
999 JOBS, 10 JOBS IN QUEUE
- REPLACEABLE BLADE BRUSH
- ROBUST STEEL BASE
- BLADE-BREAKAGE SWITCH
- VARIABLE VISE PRESSURE
- OUT-OF-STOCK SWITCH
- EASY-ACCESS ELECTRICAL PANEL HYDRAULICS
- HYDRAULIC BAND TENSIONING WITH DIGITAL READOUT
- 5 HP HYDRAULIC PUMP PROVIDES SYSTEM PRESSURE
- HYDRAULIC CARBIDE GUIDE TENSIONING
- HARDENED, REPLACEABLE WEAR PLATES
- SAFETY DOOR INTERLOCKS
- FLOOD COOLANT WITH WASH-DOWN HOSE
- WORK LIGHT
- LASER LIGHT

OPTIONS AVAILABLE - PRICE ON REQUEST
- FULL CAPACITY HYDRAULIC OVERHEAD BUNDLING
- 6 DEGREE CANTED HEAD
- BLADE DEVIATION
- MIST LUBRICATION SYSTEM
- REMOTE CONSOLE WITH 15' CORD
- OUTBOARD VISE CLAMPING
- ROLLER DISCHARGE TABLE
- VERTICAL ALIGNMENT ROLLERS
- IDLER CONVEYORS
- POWERED CONVEYORS
- POWER TRANSFORMER FOR 208 OR 240 VOLTS

- THIS SAW REQUIRES AIR RIDE TRAILER FOR TRANSPORT
Power: 480 (3-Phase)
