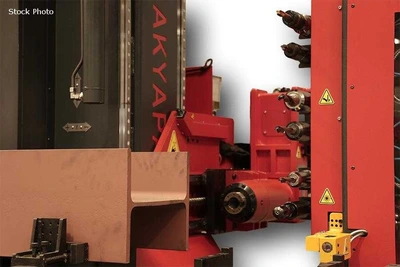

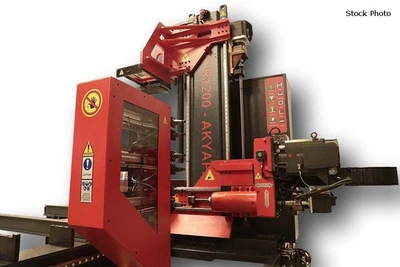

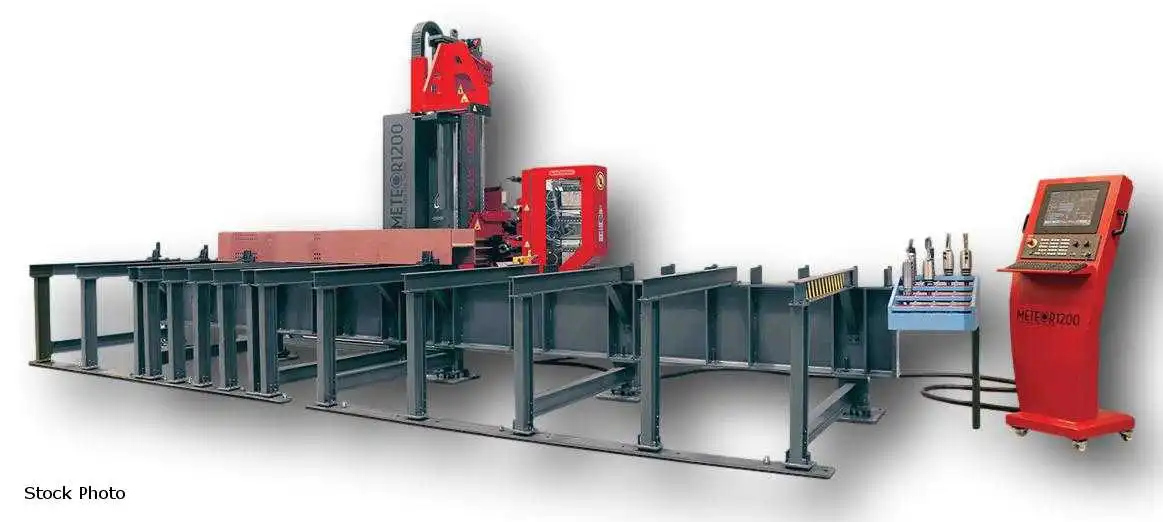

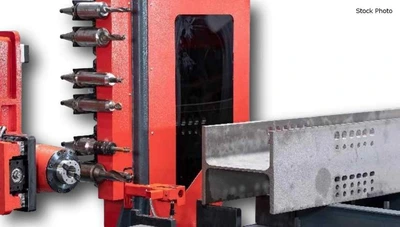

NEW AKYAPAK METEOR 1200

AKYAPAK METEOR (NEW) MODEL 1200 SINGLE SPINDLE
BEAM DRILL LINE

3/16" - 1-9/16" DRILL DIAMETER
1/4" - 1-3/16" TAPPING
12.6" TOOL LENGTH
20 HP SPINDLE
60 HP TOTAL POWER
0 - 3,000 RPM STEPLESS SPINDLE SPEED
20, 33, 46, 59, 72, OR 85' WORKING LENGTH
2" - 47" BEAM HEIGHT
2" - 47" BEAM WIDTH
39.4" SUPPORT TABLE HEIGHT
+/- 0.01" X-AXIS POSITIONING ACCURACY
+/- 0.002" Y-AXIS POSITIONING ACCURACY
+/- 0.002" Z-AXIS POSITIONING ACCURACY

EQUIPPED WITH
- BT40 TOOL HOLDER
- AUTOMATIC TOOL CHANGER WITH 6 STATIONS
- AUTOMATIC TOOL AND MATERIAL MEASUREMENT
- AUTO-LUBRICATION SYSTEM
- WIRELESS REMOTE CONTROL
- MOBILE CONTROL PANEL
- SIEMENS SIMOTION CONTROL SYSTEM

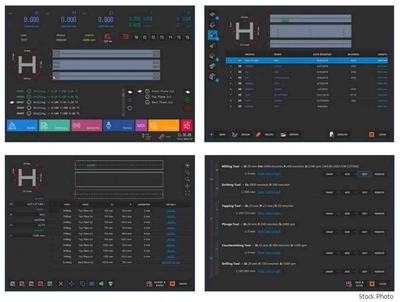

- METEOR CONTROLLER PROGRAMMING SOFTWARE
- DSTV FILE IMPORT

OPTIONS AVAILABLE - PRICE ON REQUEST
- SCRIBE MARKING TOOL
