NEW AKYAPAK 3ADM 1200

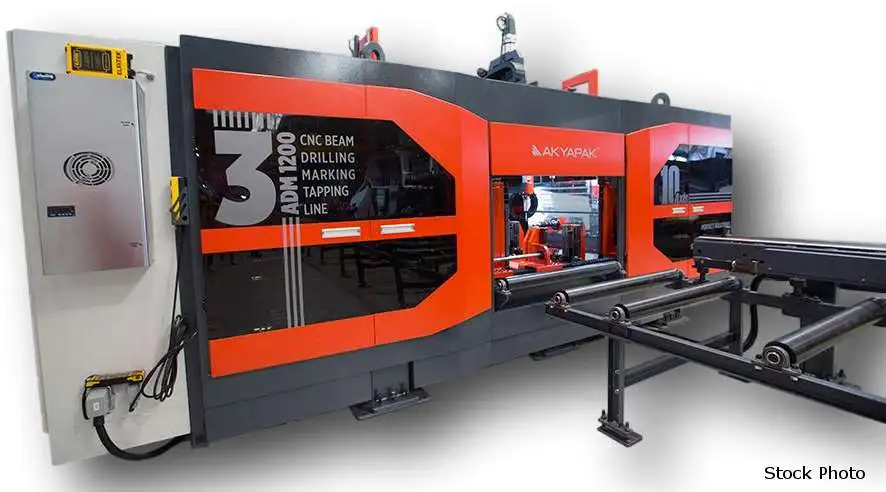

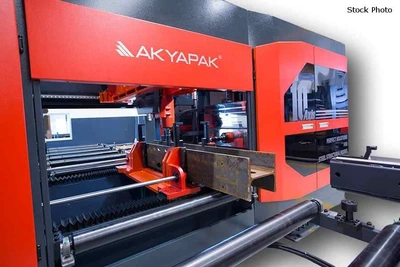

AKYAPAK (NEW) MODEL 3ADM 1200 CNC BEAM DRILL LINE
WITH AST 1200-500 CNC MITER BANDSAW

3-SPINDLE, 10-AXIS CNC BEAM DRILL LINE

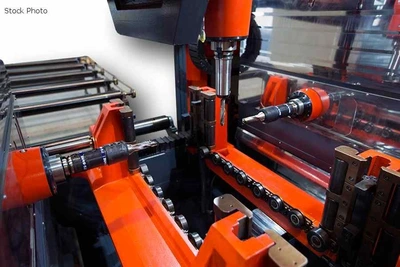

- 3 DRILL HEADS
- 3/8" - 1-1/2" DRILL CARBIDE AND U-DRILL DIAMETER
- 1-1/2" - 2" U-DRILL DIAMETER
- M10 - M24 THREAD TAPPING
- 0.2" - 3.94" DRILLING THICKNESS
- 50 - 3,000 RPM STEPLESS SPINDLE SPEED
- 8" X 3.15" MINIMUM BEAM SIZE
- 48" X 20" MAXIMUM BEAM SIZE
- 6.56' TO 40' LINE LENGTH
- 670 LBS/FOOT
- 4" TO 47.2" SOLID BAR
- 3.15" X 3.15" TO 19.68" X 19.68" SQUARE TUBE
- RECTANGULAR TUBE
1.57" X 3.15" TO 47.2" X 19.68"
- ANGLE
3.15" X 3.15" X 1/3" TO 9.84" X 9.84" X 1.1"
- U CHANNEL
3.15" X 1.77" X 1/4" TO 15.75" X 4.33" X 0.55"
- CNC SYSTEM (SELECT ONE)
15" TOUCH SCREEN MITSUBISHI C70
SIEMENS SINUMERIK 840D SL
- LANTEK FLEX3D STEELWORK PROGRAMMING SOFTWARE

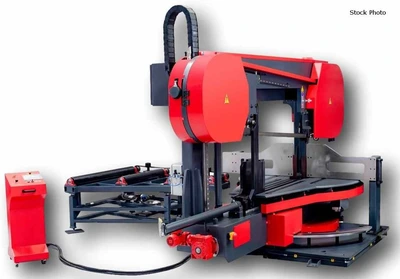

AST 1200-500 CNC MITER BANDSAW
- 24 HP
- 65.6 - 377.3 FEET PER MINUTE CUTTING SPEED
- +60/-45 DEGREE MITERING ANGLE
- SAWING CAPACITY
48" X 20" MAXIMUM
3.15" X 3.15" MINIMUM (INTEGRATED WITH ADM)
0.4" X 0.4" MINIMUM (SINGLE LINE)
29.56' BLADE
31.44" WORK HEIGHT
- CUTTING CAPACITY
20" SQUARE AT 0, 15, 30, 45, 60 DEGREES
48" X 20" FLAT AT 0 DEGREES
43.2" X 20" FLAT AT 15 DEGREES
40" X 20" FLAT AT 30 DEGREES
31.5" X 20" FLAT AT 45 DEGREES
20" X 20" FLAT AT 60 DEGREES

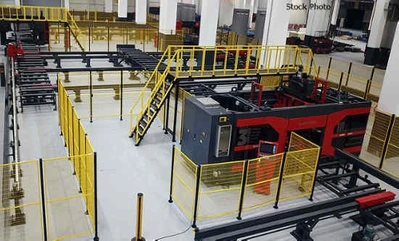

DRILL LINE IS EQUIPPED WITH

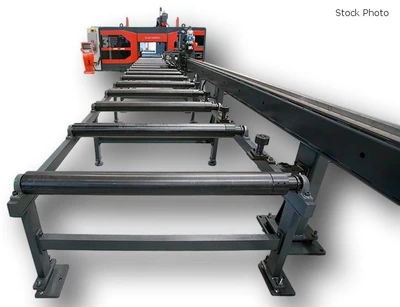

- 60' INFEED CONVEYOR
- 60' OUTFEED CONVEYOR
- FEEDING ARM
- SAFETY FENCES
- WIRELESS REMOTE CONTROL
- AUTO-LUBRICATION SYSTEM
- AUTOMATIC TOOL CHANGER
- BT40 TOOL HOLDER
- HYDRAULIC AIR COOLER

BANDSAW IS EQUIPPED WITH
- AUTOMATIC BLADE TENSIONING SYSTEM
- CHIP BRUSH FOR BLADE
- INTEGRATED CHIP CONVEYOR
- CLAMPING VICE
