NEW BAILEIGH PL-1440E

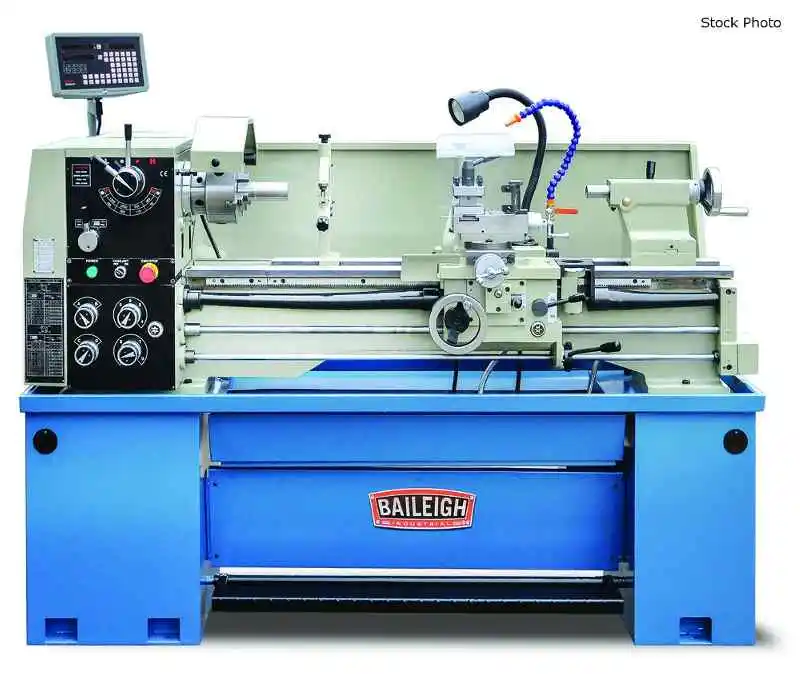

BAILEIGH (NEW) MODEL PL-1440E METAL LATHE

CAPACITY
- 14" SWING OVER BED
- 8.6" SWING OVER CROSS SLIDE
- 19.9" SWING IN GAP
- 40" BETWEEN CENTERS

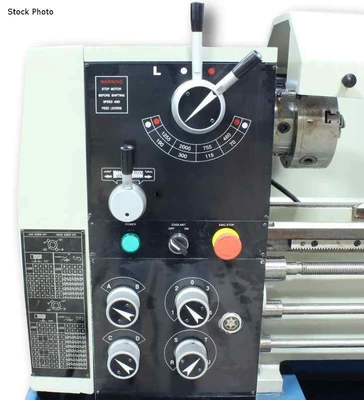

HEADSTOCK
- 1.5" SPINDLE BORE
- #3 MORSE SPINDLE TAPER SLEEVE
- #5 MORSE SPINDLE TAPER NOSE
- D1-4" SPINDLE NOSE
- 90 - 1800 RPM SPINDLE SPEEDS

THREADS AND FEEDS
- 44/4-112 TPI THREADS IMPERIAL QTY SPEED
- 22/.45-7.5 MM THREADS METRIC QTY SPEED
- .0012"-.0294"/REV. RANGE OF LONGITUDINAL FEEDS
- .0003"-.01"/REV. RANGE OF CROSS FEEDS

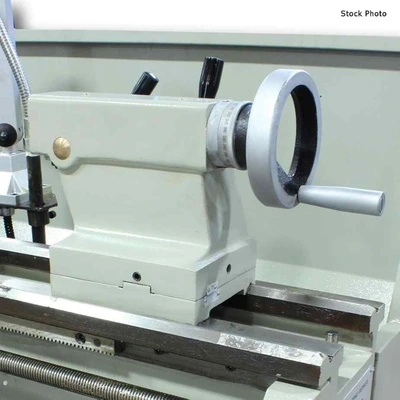

TAILSTOCK
- MORSE #3 TAILSTOCK QUILL TAPER
- 1.772" TAILSTOCK QUILL DIA
- 4.72" TAILSTOCK QUILL TRAVEL

POWER
- 2 HP, 220 VOLT, SINGLE PHASE

STANDARD EQUIPMENT
- PRECISION-GROUND HARDENED WAYS
- DIGITAL READOUT
- METRIC AND STANDARD THREADS
- GAP LATHE DESIGN
- 3 JAW AND 4 JAW CHUCKS
- HEADSTOCK CHUCK GUARD W/AUTOMATIC SAFETY SWITCH

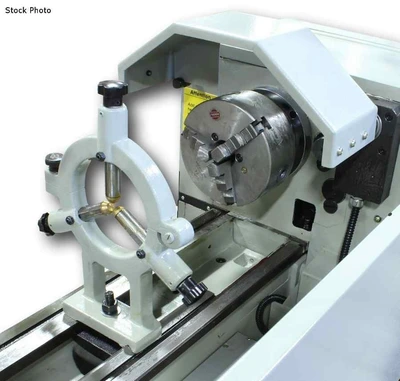

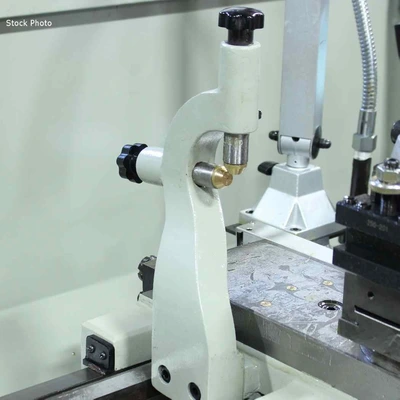

- STEADY REST AND FOLLOW REST
- SAFETY FOOT BRAKE
- INTEGRATED COOLANT SYSTEM
- HALOGEN WORK LIGHT

OPTION AVAILABE - PRICE ON REQUEST
- TAPER ATTACHMENT FOR MAKING CONES
