| Dimensions | 85 X 80 X 90 | 85 X 80 X 90 |
| Weight | 3,500 | 3,500 |

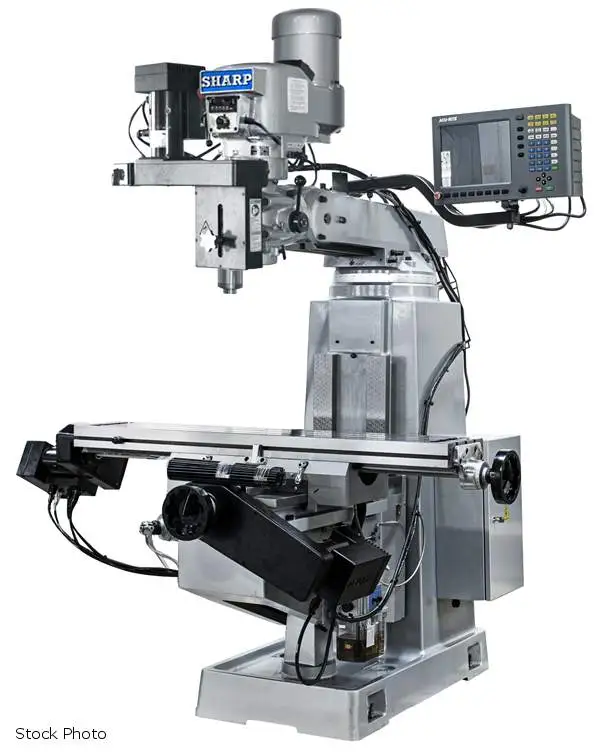

SHARP (NEW) MODEL TMV-MP-3 VERTICAL KNEE MILL
WITH 3-AXES ACU-RITE MILLPWR CNC CONTROL
AND 3-AXES G2 READOUT
TABLE
- 10" X 54"
- (3) 5/8" T-SLOTS
CAPACITY
- 31" TABLE TRAVEL (X AXIS)
- 15.5" SADDLE TRAVEL (Y AXIS)
- 18.5" RAM TRAVEL
- 5" QUILL TRAVEL (Z AXIS)
- 15.3" KNEE TRAVEL
- 9.8" TO 28.3" THROAT
- 5.375" - 21" SPINDLE GAGELINE TO TABLE TOP
SPINDLE
- R-8 TAPER
- 3-3/8" QUILL DIAMETER
- 60 - 4,500 RPM VARIABLE SPEED DRIVE
- 0.0015, 0.003 AND 0.005 IPR QUILL SPEEDS
- 0.0002" TIR ACCURACY
- 90 DEGREE HEAD TILT LEFT AND RIGHT
- 45 DEGREE HEAD TILT UP AND DOWN
- 3 HP MOTOR, 220 VOLTS, 3 PHASE, 60 H
STANDARD EQUIPMENT
- HARDENED AND GROUND BOX WAYS
- MANUAL DRAWBAR
- FRONT AND REAR WAY COVERS
- AUTOMATIC LUBE SYSTEM
- TOOL KIT
OPTIONS AVAILABLE - PRICE ON REQUEST
- ACU-RITE ELECTRICAL EDGE FINDER
- ACU-RITE DRO SYSTEM ON KNEE
- SHARP POWER KNEEL FEED
- 6" KURT VISE WITH SWIVEL BASE
- DRILL CHUCK AND DRILL ARBOR
- COOLANT SYSTEM WITH CHIP PAN AT BASE
- MAXI-TORQUE RITE POWER DRAWBAR
- R-8 COLLET SET (SET OF 11)
- CLAMPING KIT (52 PIECES AND STEEL RACK)
- HALOGEN WORK LIGHT
- 6" RISER BLOCK
- 440 VOLT TRANSFORMER
Power: 220/440 (3-Phase)
