| Dimensions | 157 X 169 X 120 | 157 X 169 X 120 |
| Weight | 32,500 | 32,500 |

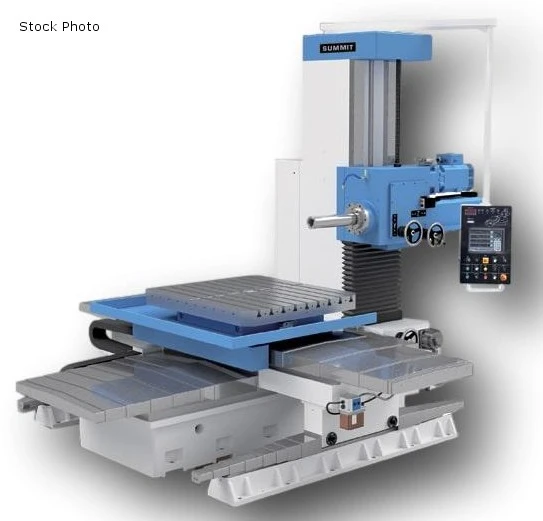

SUMMIT (NEW) MODEL HBM-110H HORIZONTAL BORING MILL MILLING MACHINE
W/FOUR (4) AXIS ELECTRONIC DIGITAL READOUT
4.3" SPINDLE DIAMETER
# 50 TAPER OF SPINDLE
20-1250 RPM INFINITELY VARIABLE SPINDLE SPEEDS
55.1" HEADSTOCK Y VERTICAL TRAVEL
70.8" X CROSS TABLE
55.1" W SADDEL LONGITUDINAL
21.6" Z SPINDLE
INFINITELY VARIABLE FEEDS
0.118 - 37.4 IPM X, Y AND W AXIS FEED RANGE
0.118 - 15.75 IPM Z AXIS FEED RANGE
110 IPM X, Y AND W AXIS RAPID TRAVERSE
47.25 IPM Z AXIS RAPID TRAVERSE
47.2" X 55.1" ROTARY TABLE DIMENSIONS
11,000 LB WORKPIECE WEIGHT
0.875" TABLE T-SLOT WIDTH
MANUAL ROTATION
TABLE INDEX (360 DEGREES)
20 HP MAIN MOTOR
3.9 HP SERVO LINEAR AXIS FEED MOTOR
1.75 SERVO SPINDLE FEED MOTOR
220 VOLT, 3 PHASE
INCLUDED FEATURES AND EQUIPMENT
- AIR POWER DRAW BAR
- AUTOMATIC LUBE TO THE WAYS
- HYDARULIC CLAMPING ON X, Y, AND Z AXIS
- HARDENED AND GROUND WAYS

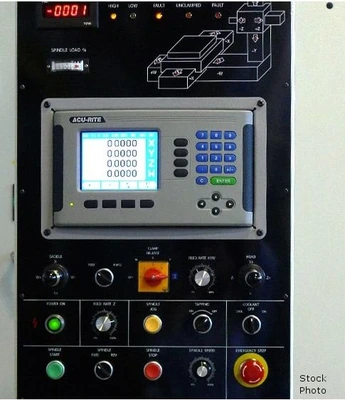

- 4 AXIS ELECTRONIC DIGITAL READOUT
- TELESCOPING STEEL WAY COVERS ON HORIZONTAL WAYS
- BALL SCREWS ON X, W, AMD Z AXIS
- COOLANT SYSTEM
OPTIONS AVAILABE - PRICE ON REQUEST
- RIGHT ANGLE MILLING HEAD
- UNIVERSAL MILLING HEAD
- SPINDLE SUPPORT
- FACING HEAD
(DIA 22", SLIDE TRAVEL 2" - 4.7", MAX RPM 200)
- TRANSFORMER FOR OTHER THAN 220/3/60
- **INSTALLATION ASSISTANCE
Power: 220/440 (3-Phase)
