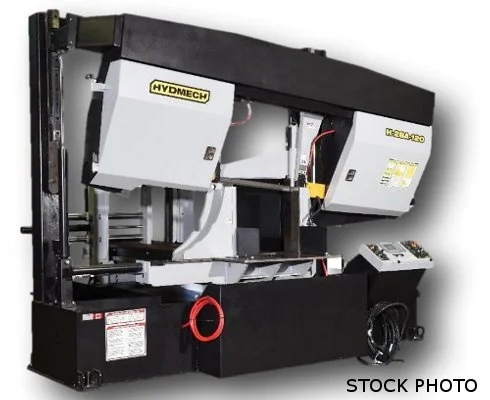

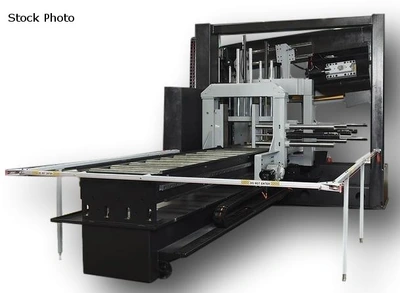

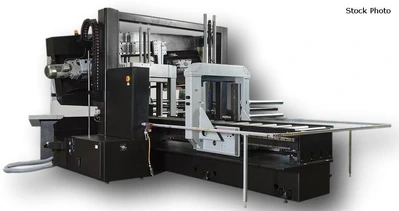

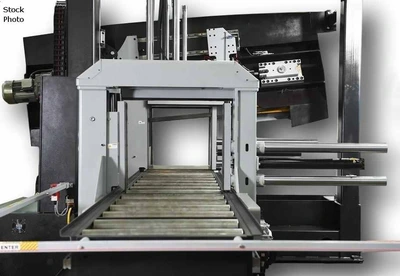

NEW HYDMECH H-28A-120

HYDMECH (NEW) MODEL H-28A-120 AUTOMATIC DUAL
POST HORIZONTAL BANDSAW WITH 10' BAR FEED

CAPACITY WITH 6 DEGREE CANTED HEAD
- 24" X 28" RECTANGLE
- 24" SQUARE
- 24" ROUND (DIAMETER)

2" X 25' BLADE
10 HP BLADE DRIVE
480 VOLTS, 3 PHASE
*TRANSFORMER SUPPLIED AT NO CHARGE
40 - 300 SFM BLADE SPEED
0-32" AUTOMATIC MULTI-INDEXING
9.5 GALLON HYDRAULIC TANK CAPACITY
40 GALLON COOLANT TANK CAPACITY
37" TABLE HEIGHT

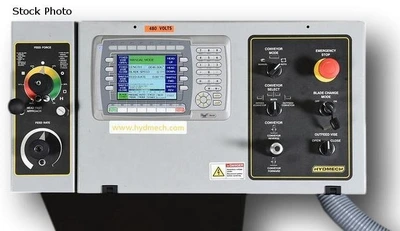

7" MITSUBISHI FX3U PLC COLOR TOUCH SCREEN CONTROL
- PROGRAM UP TO 999 JOBS WITH 10 IN QUEUE
- USER-FRIENDLY, INTERACTIVE PROGRAMMING
- MACHINE DIAGNOSTICS ON DISPLAY SCREEN
- SIMPLE SOFTWARE UPDATES

STANDARD MACHINE FEATURES
- SELECT VISE OPTION
SPLIT FRONT VISE
RETRACTABLE DATUM VISE

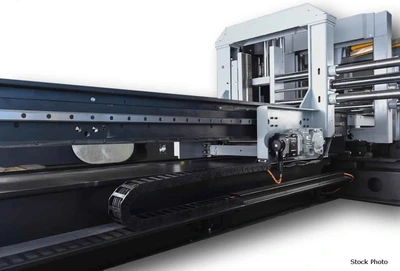

- SHUTTLE WITH AUTOMATIC MULT-INDEXING UP TO 120"
IN 1 STROKE WITH AUTOMATIC KERF COMPENSATION
- STEEL GUIDE ARMS
- IDLER SIDE GUIDE ARM MECHANICALLY CONNECTED
TO FRONT VISE MOVEABLE JAW
- FULL CAPACITY HYDRAULIC OVERHEAD BUNDLING
- TRUE DIRECT BLADE DRIVE- NO BELTS OR PULLEYS
- ROBUST STEEL BASE
- FULL-CAPACITY, FULL-STROKING HYDRAULIC VISES
- HYDRAULIC POSITIVE DOWN FEED
- HIGH-RESOLUTION FEED RATE VALVE
- BLADE CHAMBER SEPARATES MATERIAL CUT PART
- CAST IRON BAND WHEELS
- REPLACEABLE BLADE BRUSH
- AUTOMATIC CHIP REMOVAL AUGER
- OUT-OF-STOCK SWITCH
- EASY-ACCESS ELECTRICAL PANEL HYDRAULICS
- BLADE BREAKAGE SWITCH
- HYDRAULIC BAND TENSIONING WITH DRO
- 5 HP HYDRAULIC PUMP PROVICES SYSTEM PRESSURE
- HYDRAULIC CARBIDE GUIDE TENSIONING
- HARDENED, REPLACEABLE WEAR PLATES
- SAFETY DOOR INTERLOCKS
- FLOOD COOLANT WITH WASH-DOWN HOSE
- WORK LIGHT
- LASER LIGHT
- VARIABLE VISE PRESSURE

OPTIONS AVAILABLE - PRICE ON REQUEST
- BLADE DEVIATION MONITOR
- SQUARING VISE
- MIST LUBRICATION SYSTEM
- REMOTE CONSOLE WITH 15' CORD
- OUTBOARD VISE CLAMPING
- ROLLER DISCHARGE TABLE
- VERTICAL ALIGNMENT ROLLERS
- IDLER CONVEYORS
- POWERED CONVEYORS
- POWER TRANSFORMER FOR 208 OR 240 VOLTS

- THIS SAW REQUIRES AIR RIDE TRAILER FOR TRANSPORT
Power: 480 (3-Phase)
