NEW FACCIN 4HEL-3139

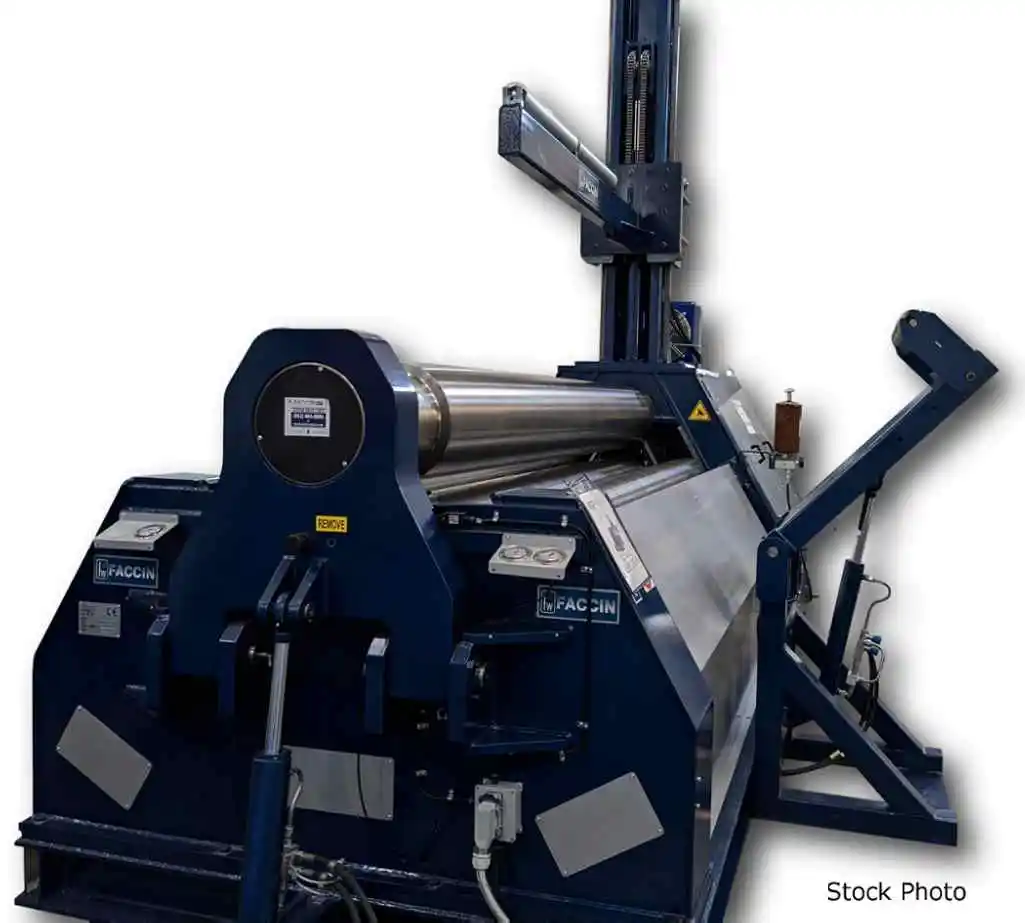

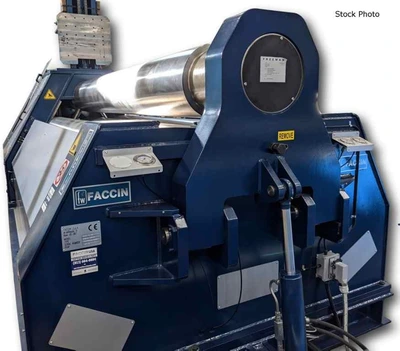

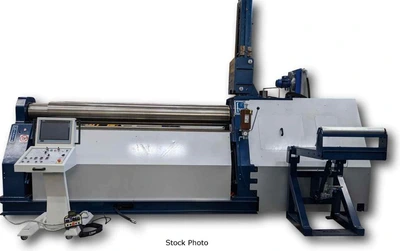

FACCIN (NEW) MODEL 4HEL-3139 4-ROLL BENDING ROLL

CAPACITY
- 120.08" PLATE WIDTH
- 15.35" TOP ROLL DIAMETER
- 14.57" LOWER ROLL DIAMETER
- 11.61" SIDE ROLLS DIAMETER
- 138,000 - 145,000 PSI CERTIFIED ROLL RESISTANCE
- 276 TON BENDING FORCE ON TOP ROLL
- 4,000 PSI PUMP PRESSURE AT MAXIMUM LOAD
- 13-26 FPM INFINITELY VARIABLE ROTATION SPEED
- 4 BEARINGS SUPPORT EACH ROLL
- 40 HP

FULL-LENGTH CAPACITY AT 37.7 KSI
- 0.984" BENDING THICKNESS WITH 77" INSIDE DIA.
- 0.79" PRE-BEND THICKNESS WITH 77" INSIDE DIA.
- 0.709" BENDING THICKNESS WITH 20" INSIDE DIA.
- 0.63" PRE-BEND THICKNESS WITH 20" INSIDE DIA.

HALF-LENGTH CAPACITY AT 37.7 KSI
- 1.26" BENDING THICKNESS WITH 77" INSIDE DIA.
- 0.984" PRE-BEND THICKNESS WITH 77" INSIDE DIA.

FULL-LENGTH CAPACITY AT 52.2 KSI
- 0.87" BENDING THICKNESS WITH 77" INSIDE DIA.
- 0.63" PRE-BEND THICKNESS WITH 77" INSIDE DIA.
- 0.63" BENDING THICKNESS WITH 20" INSIDE DIA.
- 0.512" PRE-BEND THICKNESS WITH 20" INSIDE DIA.

HALF-LENGTH CAPACITY AT 52.2 KSI
- 1.102" BENDING THICKNESS WITH 77" INSIDE DIA.
- 0.787" PRE-BEND THICKNESS WITH 77" INSIDE DIA.

STANDARD EQUIPMENT
- HARDENED AND POLISHED ROLLS

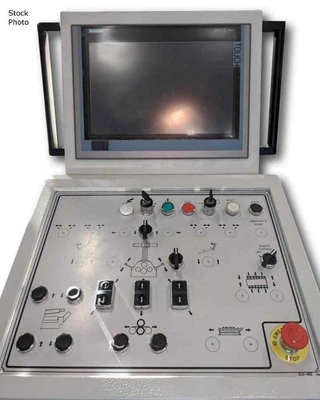

- SIEMENS PGS-CLASSIC NUMERIC CONTROL
- CONE BENDING WITH
ELECTRONIC CONTROL
TOP ROLL TILTING
- SIMULTANEOUS MACHINE MOVEMENTS
- MICRO-POSITIONING
- DESIGNED TO ACCEPT FUTURE UPGRADES
- EXTRA-LARGE DOUBLE SHAFT DROP END
- ELECTRONIC BALANCING SYSTEM FOR SYNCH OF ROLLS
- HYDRAULIC TILTING OF TOP ROLL
- DUAL LINEAR SLIDE SYSTEM FOR ROLLS TRANSLATION
- ULTRA-WIDE ROLL BEARING HOUSINGS
- MCS BEARING SYSTEM FOR BENDING ROLLS
- CENTRALIZED PUMP LUBRICATION SYSTEM
- PRESSURE GAUGES FOR PINCH ROLL MONITORING
- EXTRA TORQUE AND SPECIAL BRAKING POWER SYSTEM
- PERIMETER CABLE-PULL SWITCHES FOR EMERGENCY
STOP
- TOP ROLL TILTING COMBINED WITH HYDRAULIC DROP
END OPENING
- HIGH PRECISION AND PRODUCTIVITY PACKAGE
- DESIGNED AND MANUFUFACTURED ACCORDING TO
MACHINERY DIRECTIVE 2006/42/EC

OPTIONS INCLUDED
- UPGRADE TO SIEMENS PGS-ULTRA COMPUTERIZED
NUMERIC CONTROL

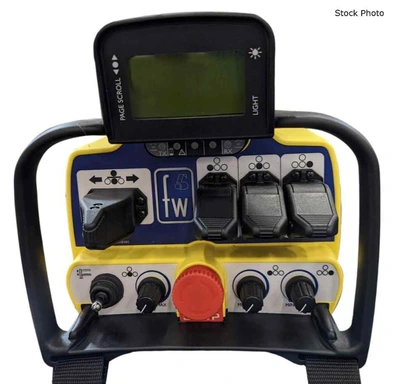

- REMOTE PENDANT CONTROL

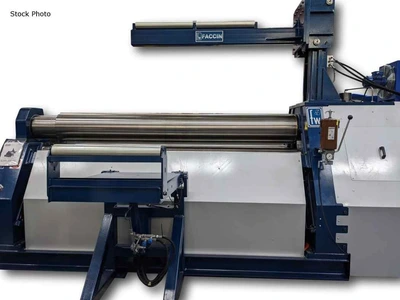

- TOP SUPPORT
- SIDE SUPPORT

OPTIONS AVAILABLE - PRICE ON REQUEST
- UPGRADE TO SIEMENS PGS-PLUS NUMERIC CONTROL
- ADVANCED WIRELESS CONTROL
- LATERAL DRIVEN ROLL (ON ONE OF THE SIDE ROLLS)
- SHOCK ABSORBER ON PINCH ROLL
- 4-AXIS CLAMPING SYSTEM FOR TACK WELDING
- TOP ROLL HYDRAULIC CAMBERING SYSTEMS
- PRE-LOADING SYSTEM FOR PINCH ROLLS
- NON-CONTACT RADIUS MEASURING
- AUTOMATIC PLATE LOADER
- AUTOMATIC FEED TABLE
- ALIGNMENT SYSTEM FOR FEED TABLE
- ROLLER CONVEYORS
- AUTOMATIC EJECTOR
- SAFETY LIGHT CURTAINS
Power: 480V (3-Phase)
